General

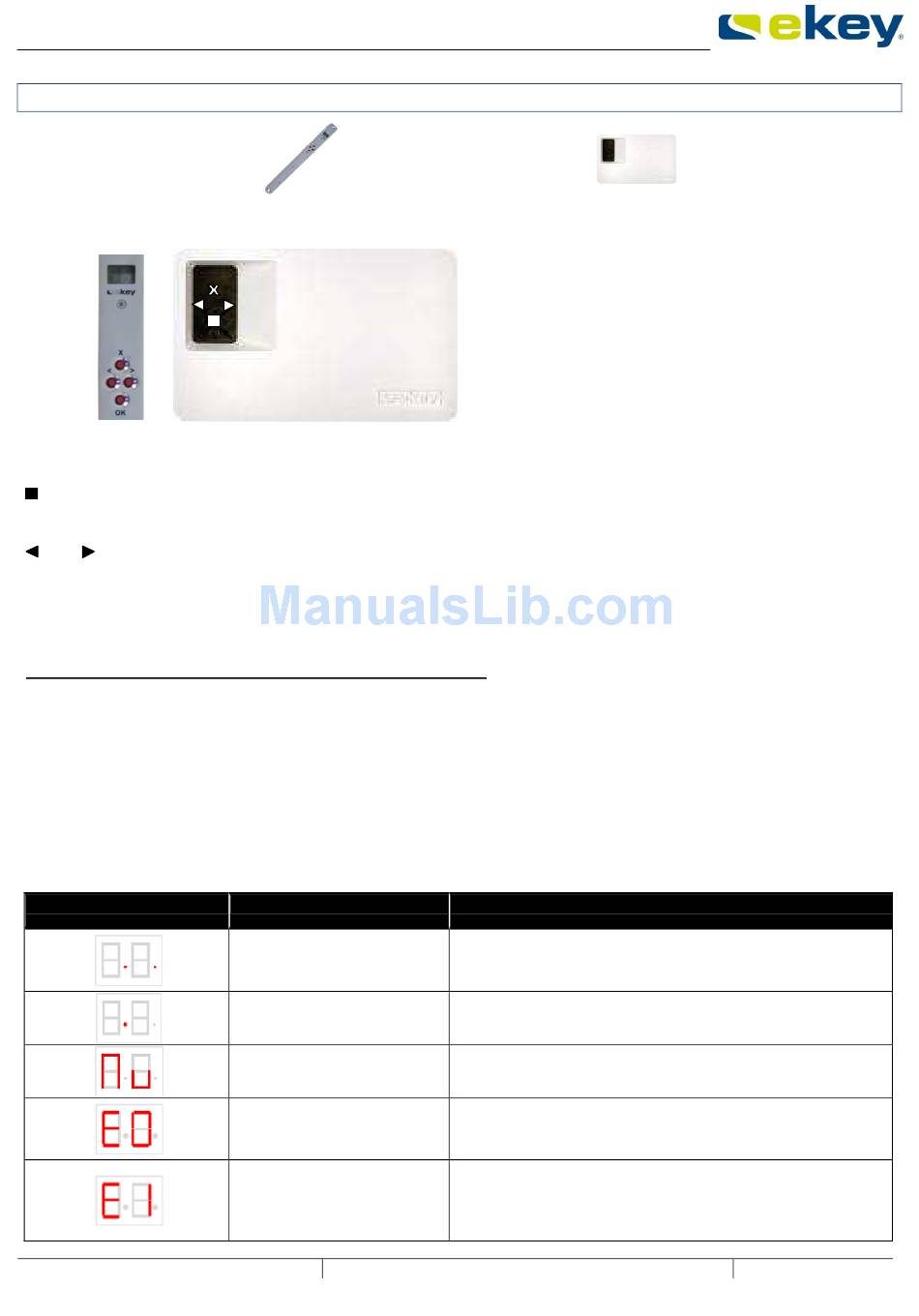

8.2 OPERATION
8.2.1 EKEY HOME CP IN
8.2.1.1

OPERATING THE BUTTONS

Four buttons are used for the operation:
= OK button: is used to enter the menu and to confirm entries.
< and > buttons: are used to change the values on the display or for navigating in the programming
menu (see diagram in section 8.2.1.5)
ESC button (X): is used to cancel the current entry.
8.2.1.2 MAIN MENU
Menu item
Normal mode
Enrol user
Delete user
Set the security code
Serial and version number
Reset to factory settings
Change relay switching times
8.2.1.3

OPTICAL SIGNALS

Displays from the menu navigation are not described here.
Display
© ekey biometric systems GmbH
AND EKEY HOME CP WM
Display____________
(flashing dot)
(Enroll user)
(delete user)
(Security code)
(Information)
(Relay time)
Information
Both dots are lit up
Left dot flashing
"Nu" - Need Update
„E0"- Error code
„E1"-Error code
Operating instructions ekey home
.
Eu
du
Sc
In
rr
rt
Description
The terminal is new or has been reset to factory
settings. The link with the fingerprint scanner is not
active.
Normal mode, everything is functioning properly.
This terminal requires a firmware update. This display
also appears during updating.
There is no connection to the finger scanner, or the
energy supply to the system has been interrupted.
The system will be rebooted.
99 fingerprints have already been registered
No more fingerprints can be registered. Where
necessary delete existing fingerprints in order to
record new ones.
