ekey home
OPERATING INSTRUCTIONS
en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the home series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eKey home series

Summary of Contents for eKey home series

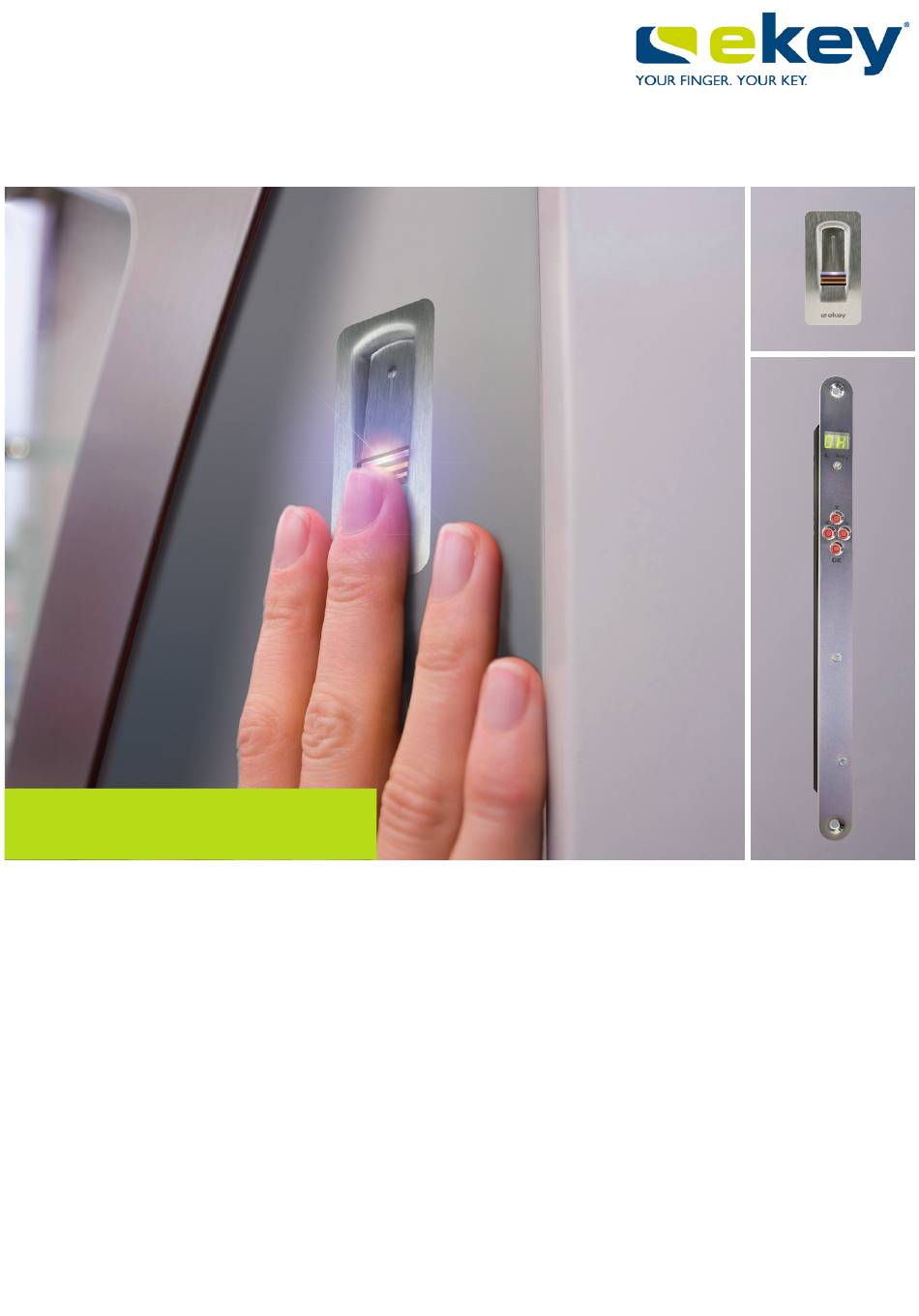

  • Page 1 OPERATING INSTRUCTIONS...

  • Page 2: Table Of Contents

    English Translation of the original instructions - ID 172/494/0/331 Table of contents General ..................2 Note ................... 2 Product liability and limitation of liability ......... 2 Warranty and manufacturer's warranty ........... 2 Notices, symbols and abbreviations ..........2 Safety information .................3 Life-threatening danger resulting from electricity ......3 Safety against tampering ..............

  • Page 3: General

    GmbH provides a 24-month warranty for material or processing defects. This warranty is only valid in the country where the product was purchased. The product may only be used with original ekey spare parts and accessories. Notices, symbols and abbreviations NOTICE Denotes additional information and useful tips.

  • Page 4: Safety Information

    Control panel Fingerprint The biometric information extracted from the fingerprint Safety information DANGER All ekey home devices are to be operated with safety extra-low Life- voltage (SELV). Only use power supplies rated protection class 2 threatening according to VDE 0140-1.

  • Page 5: Product Description

    Product description System overview Fig. 1: Overview of the system 1 Finger scanner 2 Power supply 3 Connection from control panel to motorized lock 4 Distributor 5 Motorized lock 6 Cable transfer 7 Control panel 8 Connecting cable from finger scanner to control panel Scope of □...

  • Page 6: Finger Scanner

    Finger scanner Function of the finger scanner 1 Front phalanx 2 Fingerprint Fig. 2: Fingerprint The finger scanner detects the fingerprint by means of a line sensor. The control panel processes it. It then compares the result with the stored fingerprint image.
  • Page 7 Step Figure Description Hold your finger straight, place it centrally between the guiding edges. Do not twist the finger. Place the joint of the front phalanx directly onto the sensor. Place your finger flat onto the finger swipe area. Stretch out the neighbouring fingers. Move your finger evenly downwards over the sensor.

  • Page 8: Control Panel

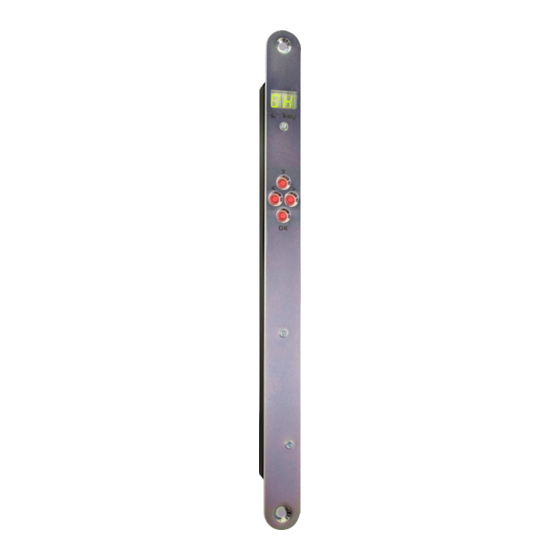

    Control panel Control panels are available in 2 relay variants. You can only operate 1 finger scanner per control panel. Product name ekey home CP IN plus 1 ekey home CP IN plus 2 Figure Mounting Can be integrated, 1...

  • Page 9: Technical Specifications

    Power input Heating off: 1 Heating on: 3 Temperature range °C -25 to +70 Sensor Type/ppi Line, 500 Protection class 54 (front side) Speed Operational lifetime Finger scans approx. 10 million Table 5: Technical specifications: ekey home finger scanners 8│en...

  • Page 10: Installation And Commissioning

    1:10,000,000/1:100 Digital input Quantity Table 6: Technical specifications: ekey home control panel IN 1 (2) plus Installation and commissioning ATTENTION Mount and cable the product correctly before connecting power. Failure to do so will create a risk of possible property damage! Do not connect the power supply beforehand! Mount the system in accordance with the supplied mounting instructions.

  • Page 11: Entering The Security Code

    Entering the Entering the security code grants you access to the main menu. The security code default code is . Change the code immediately after commissioning. See Changing the security code, page 10. The system is in normal mode. Step Action Description Display...

  • Page 12: Setting Relay Switching Times

    Setting relay The switching time for each individual relay can be set anywhere between switching 1 and 99 s. By default, the switching time is set to 3 s. When the time is times set to , the relay operates as a switch: the relay changes its switching status when a finger is detected and it remains in that status until another finger is detected.
  • Page 13 The system displays the main menu. Step Action Description Display Press < > until is displayed Press OK. Press OK. Swipe any finger over the sensor. finger Relay 1 switches for 3 s. scanner lights green. Relay 2 switches for 3 s. finger scanner lights...

  • Page 14: Setting The Led Brightness

    Setting the This function defines the brightness of the status LEDs on the finger LED brightness scanner when in idle mode. The LED brightness is set via the main menu. To get to the main menu, enter the security code. See Entering the security code, page 10.

  • Page 15: Storing Fingers

    Assign a memory space to a user. □ Assign a number to the finger ( , ..., □ Assign a relay to the finger on the ekey home CP IN plus 2. □ Enroll the fingers. NOTICE □ Store at least 2 fingers – one from each hand.
  • Page 16 Step Action Description Display Press OK. Press < > to select the finger number. If there is already a finger saved under this finger number, a point lights up on the right. The finger can be overwritten. Press OK. Press <...

  • Page 17: Use

    Step Action Description Display The quality of the fingerprint image is acceptable. However, it may be possible to improve the quality by swiping the finger again. Press OK if you want to end the enrollment process. The quality of the fingerprint image is poor or the finger was not recognized.

  • Page 18: Deleting A User

    Deleting a Deleting a user will delete all fingerprints stored under their user number. user It is not possible to delete individual fingerprints from a user. Users are deleted via the main menu. To get to the main menu, enter the security code.

  • Page 19: Calling The Serial And Version Numbers

    Calling the The serial ( ) and version ( ) numbers of the control panel ( ) and serial and finger scanner ( ) are called via the main menu. To get to the main version menu, enter the security code. numbers See Entering the security code, page 10.

  • Page 20: Resetting The System To Its Default Settings

    Resetting the The system is reset to its default settings. system to its Settings are reset to the default via the main menu. To get to the main default menu, enter the security code. settings NOTICE □ All fingerprints are deleted irretrievably. □...

  • Page 21: Error Displays And Troubleshooting

    If these suggestions fail to solve the problem, the system must be returned to ekey biometric systems GmbH to be checked. Please ship the equipment in suitable packaging. Improper packaging can lead to the warranty being voided.

  • Page 22: Disposal

    All content, artwork and any ideas contained in these operating instructions are subject to applicable copyright laws. Any transmission, relinquishment or transfer of this content or parts thereof to any third party requires the prior written consent of ekey biometric systems GmbH. Translated documentation. en│21...
  • Page 23 Via Copernico, 13/A, I-39100 Bolzano Tel.: +39 0471 922 712 italia@ekey.net ID172/494/0/331: Version 3, 2015-11-16 Media Center ID: 3003 www.ekey.net Made in Austria ekey biometric systems GmbH operates a quality management system in compliance with EN ISO 9001:2015 and is certified accordingly.
