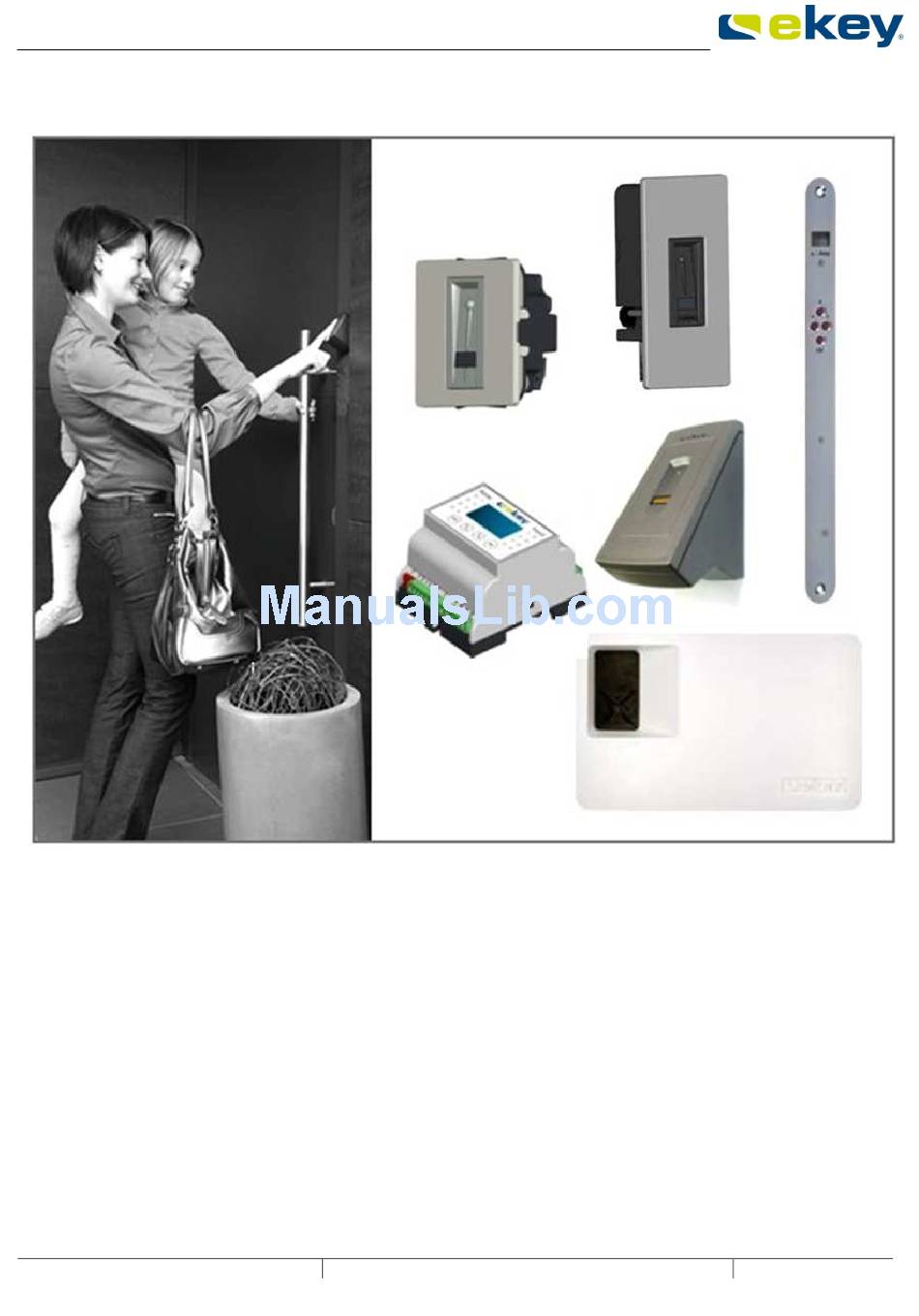

Page 1: Operating Instructions
General OPERATING INSTRUCTIONS ID16/39: Version 2 dated 27.1.2012 ekey home Fingerscan Access Control System © ekey biometric systems GmbH Operating instructions ekey home Page 1 / 41... - Page 2 /E' Z ^ EE Z dZ/ KEE d/KE > hEd/E' < z ,KD KEdZK> W E >^ K >^ E s Z^/KE^ KW Z d/KE W /E W tD /E/d/ >//E' d, s/ ^ W ZD KEdZK>^ © ekey biometric systems GmbH Operating instructions ekey home Page 2 / 41...
- Page 3 Z ^ d > /Ed E^/dz >K''/E' dZKh> ^,KKd/E' D /Ed E E > E/E' /^WK^ > d ,E/ > d ^^KZ/ ^ > Z d/KE^ K& KE&KZD/dz < z Z E, K&&/ ^ © ekey biometric systems GmbH Operating instructions ekey home Page 3 / 41...
-
Page 4: Manufacturer's Warranty
24 months from the date of purchase. Warranty claims can only be made in the country where the product has been sold to you. ekey records the production of each product. - Page 5 These operating instructions are not subject to updating. You can find the most up-to-date version of www.ekey.net these instructions at . Subject to optical and technical modifications, any liability for misprints excluded. © ekey biometric systems GmbH Operating instructions ekey home Page 5 / 41...
- Page 6 Cable transfer ekey home is a biometric access system which is equipped with a finger scanner. This scanner reads special features of your finger lines and uses them to recognise people with access rights. Each one of your fingers has specific recognition features and also varies from the fingers of other people. ekey home is available in different functional and mechanical versions and can therefore be optimally adapted to your needs.
-
Page 7: General Safety Information
General ekey control panel versions The ekey home control panels are intended to directly control an electric motor lock. This is usually relay 1 for a door wiring. ekey home CP WM 1 wall-mounted 1 relay ekey home CP WM 3... - Page 8 System changes (fingerprint enrollment, etc.) can only be made via the ekey home control panel situated in a secure area. The access to the menu in the ekey home control panel is secured with a security code. This is an additional obstacle within the system for unauthorized users.
-
Page 9: Requirements For The User
The device is used outside of the application area specified herein, e.g. in automotive applications, hazardous areas, safety-critical applications (thereat to life or physical condition) The operator carries out unauthorized changes on the devices … © ekey biometric systems GmbH Operating instructions ekey home Page 9 / 41... -
Page 10: Models And Versions
7.2 OPERATING THE FINGER SCANNERS 7.2.1 FUNCTION OF THE FINGER SCANNER ekey finger scanners are exclusively equipped with line (swipe) sensors. To capture a fingerprint, please draw your finger over the sensor. The system records the image of the fingerprint lines (papillary lines) line by line and compiles an image from the individual rows. - Page 11 The finger recess allows to place the finger correctly so that a finger picture of good quality can be captured. It actually is the control element and consists of Pin point Sensor - right and left recess edges 7.2.2 OPERATING CORRECTLY THE FINGER SCANNER © ekey biometric systems GmbH Operating instructions ekey home Page 11 / 41...
-
Page 12: What You Should Not Do
Children´s fingerprints are usually recognized, depending on the body height of the child, generally from the age of 5 – please also observe the above points. 7.2.3 WHAT YOU SHOULD NOT DO © ekey biometric systems GmbH Operating instructions ekey home Page 12 / 41... -
Page 13: Status Led
Status LED – for details on the operational state (finger recognized, finger rejected, etc.) Function LED– for details on the function of the system (online, offline, etc.) Function LED Status LED LED signals on ekey home FS OM, ekey home FS IN 2.0 and ekey home FS WM 2.0 Function Status LED Description ekey home FS OM ekey home FS IN 2.0... -
Page 14: Electric Connection
The individual control panels essentially differ in their method of installation. The method of operation, however, is identical for the ekey home CP IN and the ekey home CP WM. The ekey home CP DRM is the more recent model featuring an LCD display. In addition, the state of the relay outputs is indicated via LEDs. -
Page 15: Operating The Buttons
General 8.2 OPERATION 8.2.1 EKEY HOME CP IN AND EKEY HOME CP WM 8.2.1.1 OPERATING THE BUTTONS Four buttons are used for the operation: = OK button: is used to enter the menu and to confirm entries. < and > buttons: are used to change the values on the display or for navigating in the programming menu (see diagram in section 8.2.1.5) - Page 16 If it was necessary to replace the control panel because it was defective, then fingers had already been recorded in the ekey home finger scanner. In order not to have them deleted, a pre-recorded finger may now be swiped over the sensor, and the initialization process is started without deleting any data.
- Page 17 Define relay switching time See section 8.2.1.11 o1…o3; od Select relay See section Serial # Version 8.2.1.7 Control panel Finger scanner Control panel Finger scanner See section 8.2.1.10 © ekey biometric systems GmbH Operating instructions ekey home Page 17 / 41...
-
Page 18: Entering The Security Code
8.2.1.7 ENROLLING A FINGERPRINT IN THE SYSTEM In ekey home a maximum of 99 fingerprints can be enrolled. These 99 fingerprints can be assigned to 99 user IDs. You can for example administrate 11 users, each one enrolling 9 fingerprints or administrate 99 users, each one enrolling only 1 fingerprint or opt for any other mixed setup. - Page 19 The preceding finger will then be automatically overwritten. 6.) Press the OK button. Consider step 7 only if you have an ekey home control panel with more than 1 relay: ekey home CP IN 2...
-
Page 20: Deleting A User
Please be aware that the device cannot be operated further without setting a new security code. If you enter a new security code, then you will always need this code in the future in order to make changes (finger enrollment, delete user, etc.) in your ekey home system. CHANGING THE SECURITY CODE (Sc) - Page 21 7.) Press the OK button 8.) “OK” is displayed for a short time. The device then returns to normal mode 9.) Memorize your security code, or write it down and keep it in a safe place, separately from the ekey home control panel.
- Page 22 That relay thereby works as a switch and does not emit an impulse. If there is a power cut or a RESET on the ekey home FS or the ekey home CP due to a trouble signal in this operating mode (relay permanently closed), then the relay always restarts in idle state once the power supply has been reconnected (or after the reset).
-
Page 23: Resetting To Factory Settings
The device is now reset to its factory settings (= as when it was delivered). To start operating the device again, proceed from section 8.2.1.4. You must re-initialize the devices. © ekey biometric systems GmbH Operating instructions ekey home Page 23 / 41... - Page 24 CONTROLS The ekey home CP DRM has 4 buttons and an LCD display for system operation and programming. It also features a sliding switch to switch on and off the bus termination, as well as 1 respectively 2 LEDs for relay status and digital input signaling.
-
Page 25: Initial Operation
When the devices are connected to the power supply, the language selection is displayed on the ekey home CP DRM. Once the boot procedure on the ekey home FS has been completed, the status LED of the finger scanner begins flashing in orange or blue colour. - Page 26 6.) “Initializing OK ” is then displayed for 1-5s. The control panel and the finger scanner have now been coupled. 7.) Now the 14-digit serial number and the 4-digit software version number of the ekey home CP DRM and of the ekey home FS (finger scanner) are displayed. The initialization procedure has now been concluded.
- Page 27 8.2.2.5 ENROLLING A FINGERPRINT IN THE SYSTEM In ekey home a maximum of 99 fingerprints can be enrolled. These 99 fingerprints can be assigned to 99 user IDs. You can thus for example administrate 11 users, each one enrolling 9 fingerprints or administrate 99 users, each one enrolling only 1 fingerprint or opt for any other mixed setup.
- Page 28 1 … Relay 1 Set digits 1 to 9 of the 2 … Relay 2 (only for ekey home CP DRM 2) user name D … Double relay (only for ekey home CP DRM 2)
- Page 29 1 … Relay 1 2 … Relay 2 (only for ekey home CP DRM 2) D … Double relay (only for ekey home CP DRM User number Each individual user is indexed through the user number.
- Page 30 9.) Define which relay should switch. For your ekey home system to open the right door, you must allocate a relay to the selected finger. Later on, in normal operation mode, each time you will swipe your finger over the sensor, then the allocated relay will switch.
- Page 31 2.) Select “Delete user” in the main menu using the buttons. 3.) Press the button. 4.) Select the user number which is to be deleted from the system using the buttons. © ekey biometric systems GmbH Operating instructions ekey home Page 31 / 41...
- Page 32 8.) The system returns automatically to the main menu. 9.) Memorize your security code, or write it down and keep it in a safe place, separately from the ekey home CP DRM. Your security code is now enabled. Each time you wish to make entries in the system (enroll or delete users, change the relay switching times, …), you need to enter this security code.
- Page 33 If there is a power cut or a RESET on the ekey home FS or on the ekey home CP due to a trouble signal in this operating mode (relay permanently closed), then the relay always restarts in the status you selected once the power supply has been reconnected (or after the reset).
- Page 34 , the procedure will take a couple of seconds. The system will reset all the settings and delete all the enrolled fingers. At the end of the RESET procedure, you will be asked on the ekey home CP DRM display to select a language, and the ekey home finger scanner lights up orange.
-
Page 35: Test Mode
In this mode, you can manually activate the relay output via the menu of the ekey home CP DRM. This way, you can verify in a simple manner if the locking system has been wired properly. -
Page 36: Led Intensity
8.2.2.11 LED INTENSITY The ekey home CP DRM allows you to define the LED intensity of the status LED on the finger scanners in idle mode. The status LED is always preset on „On“ (factory setting) and lights up blue with maximum intensity. - Page 37 General 8.2.2.12 LOGGING The ekey home CP DRM logs the last 50 accesses. Both the user name and the switched relay will be displayed on a list. DISPLA Y Enter sec urity DISPLA Y DISPLA Y DISPLA Y code STROKE...
-
Page 38: Other Features
“ekey home” products. That is to say, you can, as long as ekey makes it available on the homepage, update the software of your ekey devices (ekey home finger scanner and ekey home control panel) with a software update kit to the latest available firmware version. - Page 39 Please have the serial number of the product blinking red/green. ready (to be found below the barcode label). See page 4 for contact details. © ekey biometric systems GmbH Operating instructions ekey home Page 39 / 41...
-
Page 40: Maintenance
Care of the sensor area Sensor areas The sensor area of the finger scanner is the most important element of your ekey home system and needs to be taken care of accordingly in order to function reliably and durably. The sensor area is self-cleaning, since fingers are being swept regularly over it, and therefore needs no special maintenance. -
Page 41: Declarations Of Conformity
General Accessories ekey supplies a wide range of accessories for its biometric systems. Please contact either your ekey partner, your ekey installer or ekey itself for accessories such as: power supplies pre-configured cables in-wall sets and mounting aids design elements milling samples etc.
