• LED display

The first line of the display shows the designation of the parameters to be set. The
second line shows the set value. When the parameter designation is flashing, you may
change its value by using the keyboard.

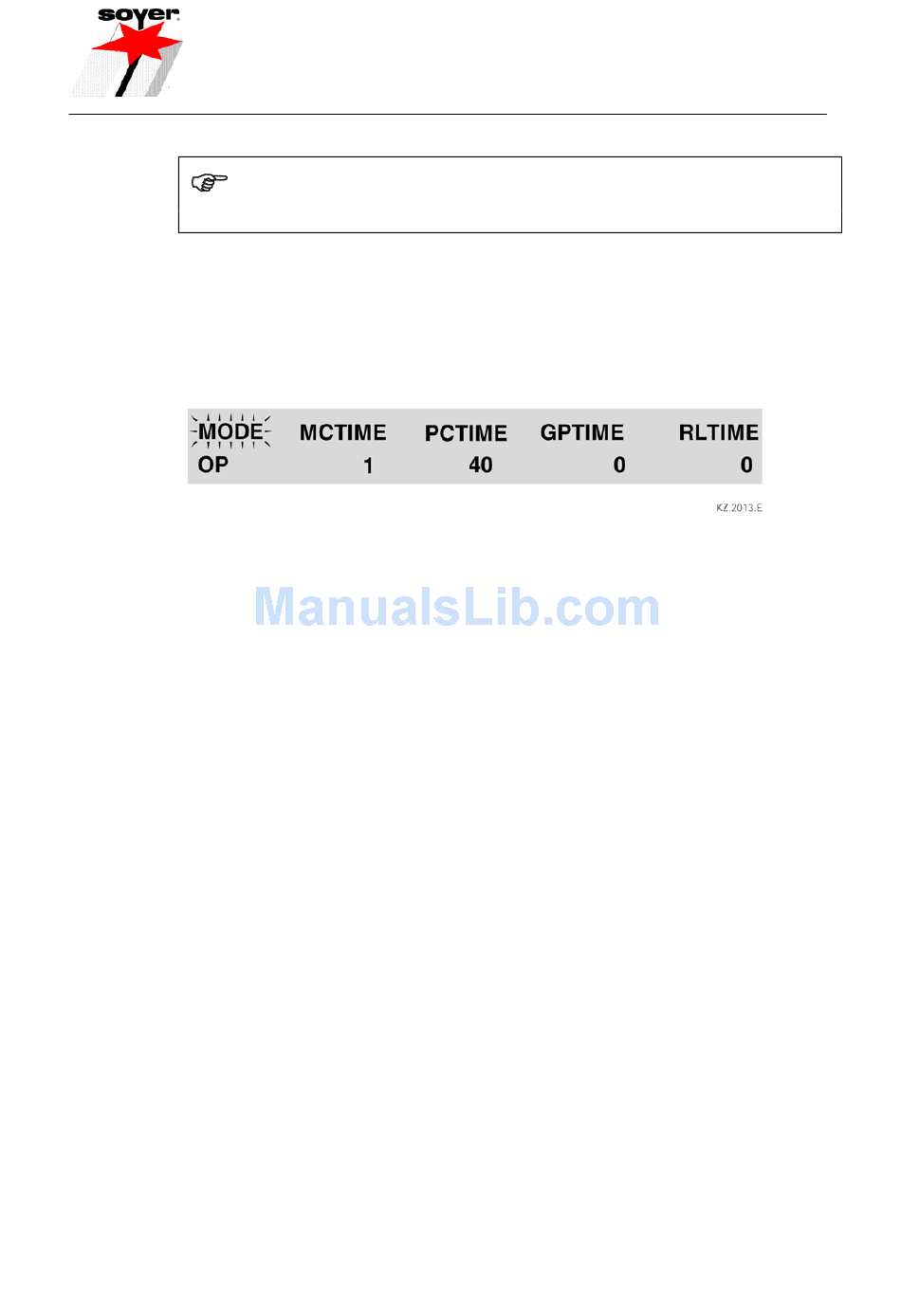

After switching the stud welder on, the following may appear on the display, e.g.:
Explanation of operating modes / parameters:
• MODE
Operating mode set. It is possible to set four different operating modes:
1- OP
Operational state which must be set for normal welding operation.
2- PRE
Pre-current test (see chapter 5.3.2.2)
3- LIFT
Lift test (see chapter 5.3.2.3)
4- GAS
Gas test (see chapter 5.3.2.4)
• MCTIME
Main current time. Period of time set between 1 and 1000 milliseconds.
• PCTIME
Pre-current time. Period of time set between 40 and 1000 milliseconds.
• GPTIME
Gas preflow time. Period of time set between 0 and 9900 milliseconds in which the
shielding gas valve is open before welding and remains open after welding. Set "0"
when welding without shielding gas.
• RLTIME
Reload time. Period of time set between 0 and 9900 milliseconds in which the blast air
valve remains open to allow stud transference from the universal feeder to the welding
gun/welding head. Set "0" to switch off the automatic reload.
34
If not all LEDs light up when starting the system, please contact your service
partner.
