BMK-12 W

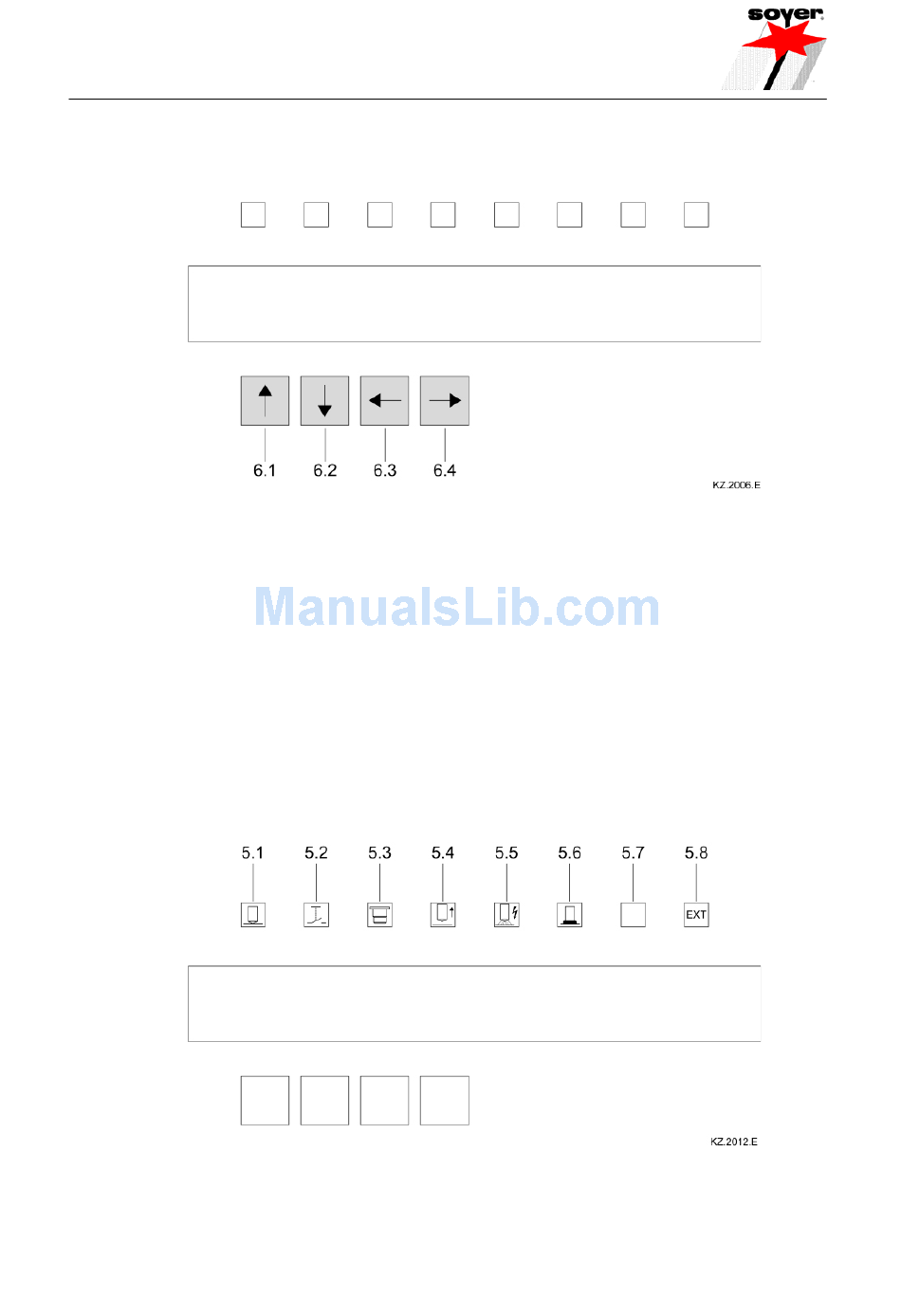

• Function keys for setting the welding parameters (item 6, chapter 5.1)
The BMK-12 W stud welder has 4 function keys on the front panel for setting the
welding parameters:
R
6.1
6.2
6.3
6.4
• Function keys "arrow up/down" (items 6.1 and 6.2, chapter 5.1)
Modification of selected parameters (flashing symbol in display).
• Function keys "arrow left/right" (items 6.3 and 6.4, chapter 5.1)
Selection of parameters to be modified (shifting of the flashing symbol to the left or to
the right).
5.1.2

Display elements

• LED displays (item 5, chapter 5.1)
The LEDs show the respective operating states.
5.1
5.2
5.3
5.4
When switching the equipment on, the 8 LEDs light up for a short period to check
proper operation.
Function key "arrow up"
Function key "arrow down"
Function key "arrow left"
Function key "arrow right"
LED "Stud on Workpiece"
LED "Release"
LED "Gas valve open"
LED "Lift"
5.5 LED "Main Current"
5.6 LED "Final Contact"
5.7 LED (no function)
5.8 LED (no function)
