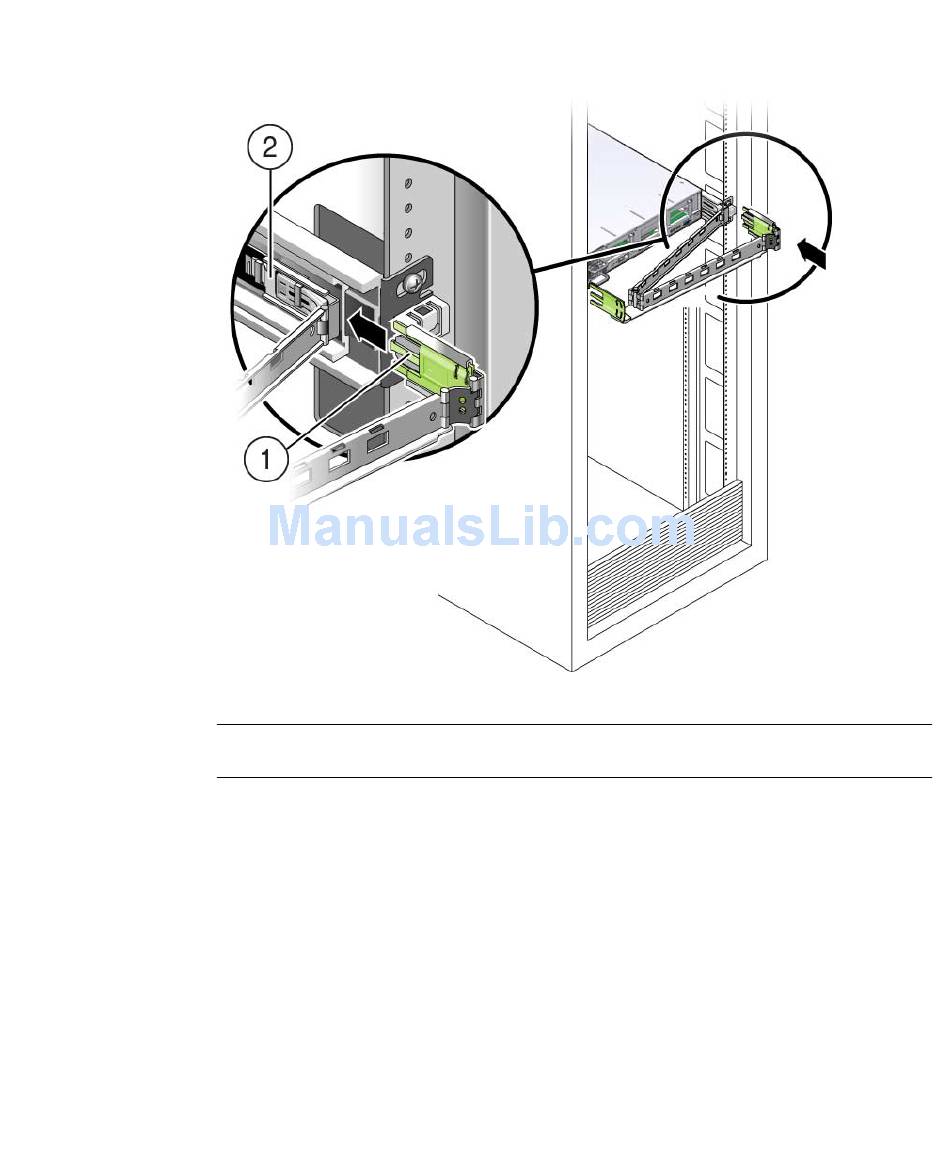

Inserting CMA Slide-Rail Connector Into the Back of the Right Slide-Rail
FIGURE 2-17
Figure Legend
1
CMA slide-rail connector
2
Right slide-rail
8. Insert the left CMA slide-rail connector into the rail extension on the left slide-
rail assembly until the connector locks into place with an audible click
(
).
FIGURE 2-18
Chapter 2
Installing the Server Into a Rack With Slide-Rails
41
