1. Unpack the CMA parts.
2. Take the CMA to the back of the equipment rack and ensure that you have
adequate room to work around the back of the server.
Note – References to "left" or "right" in this procedure assume that you are facing
the back of the equipment rack.
3. Remove the tape to separate the parts of the CMA.
The CMA rail extension might be taped to the CMA arm.
4. Attach the CMA rail extension into the left slide-rail until the extension locks
into place with an audible click (

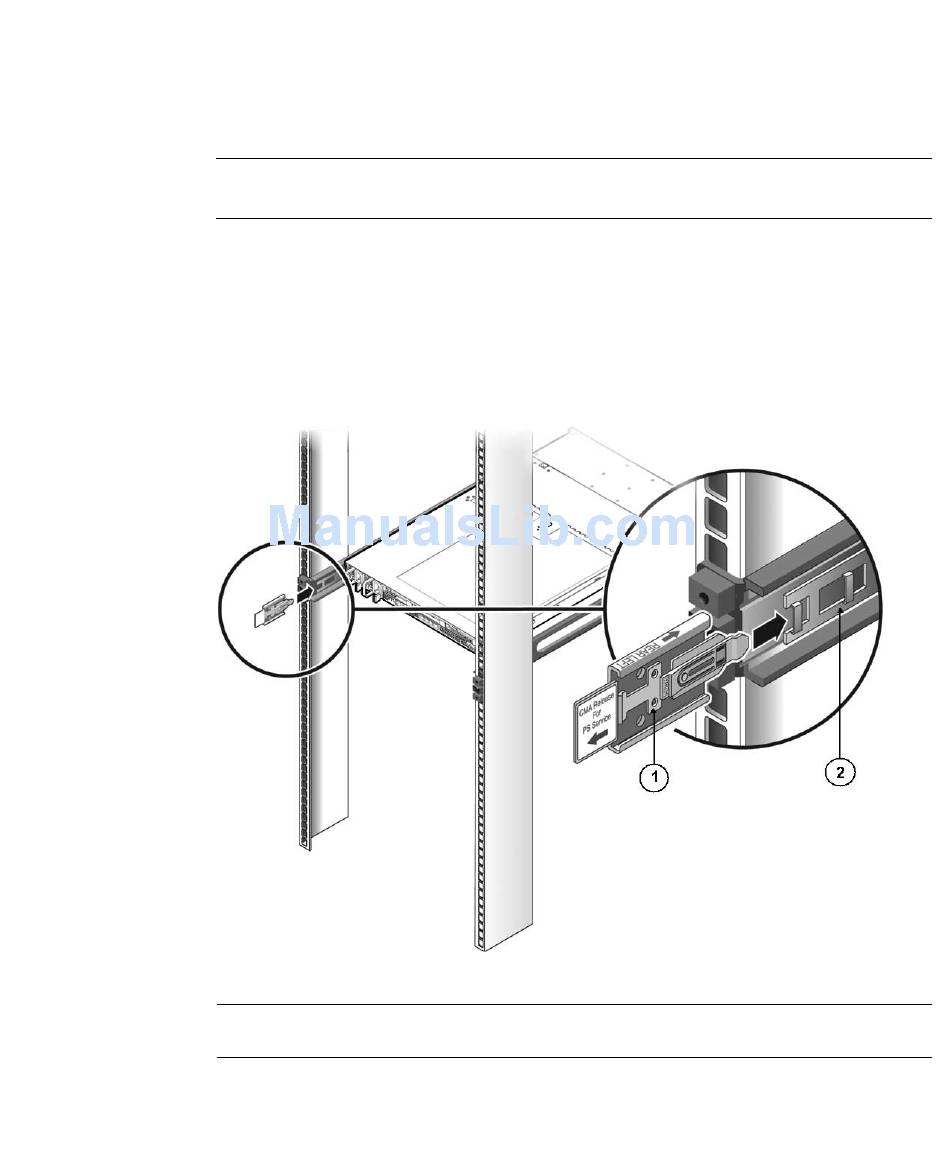

Inserting the CMA Rail Extension Into the Back of the Left Slide-Rail
FIGURE 2-8
Figure Legend
1
CMA rail extension
2
Left slide-rail
5. Verify that the CMA rail extension engages the slide-rail (
).
FIGURE 2-8
Chapter 2
Installing the Server Into a Rack With Slide-Rails
).
FIGURE 2-9
31
