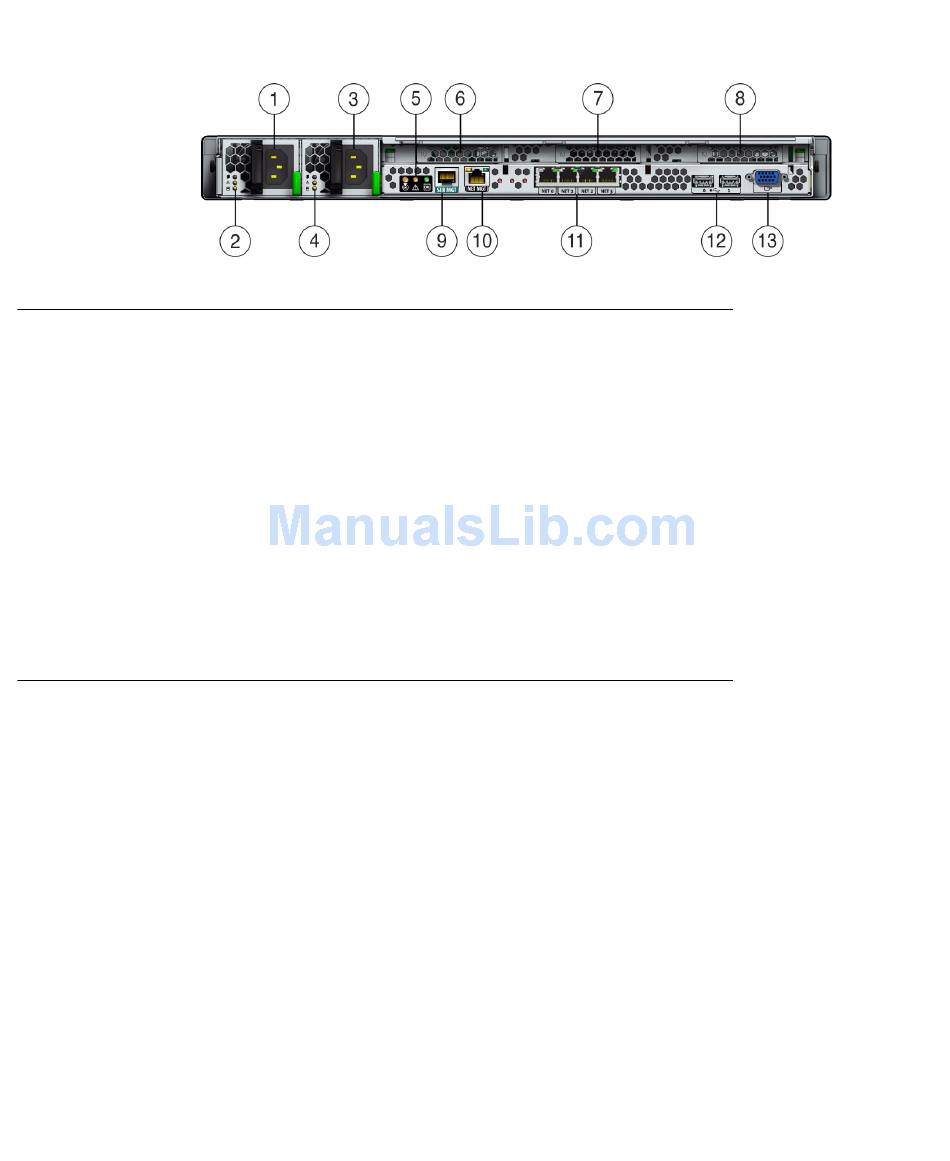

FIGURE 1-5
Figure Legend
1
Power supply unit 0 connector
2
Power supply unit 0 status indicator LEDs:
Power Supply OK: green
Power Supply Fail: amber
AC OK: green
3
Power supply unit 1 connector
4
Power supply unit 1 status indicator LEDs:
Power Supply OK: green
Power Supply Fail: amber
AC OK: green
5
System status LEDs:
Power: green
Attention: amber
Locate: white
6
PCI Express Module slot (0)
7
PCI Express Module slot (1)
FIGURE 1-6
storage drives.
mounted storage drives.
8
Sun Fire X4170 M2 and X4270 M2 Servers Installation Guide • January 2012
Sun Fire X4170 M2 Server Back Panel
8
PCI Express Module slot (2)
9
Serial management (SER MGT)/RJ-45 serial
port
10 Service processor (SP) network management
(NET MGT) port
11 Gigabit Ethernet ports NET 0, 1, 2, 3
12 USB 2.0 ports (0, 1)
13 HD15 video connector (analog VGA)
shows the Sun Fire X4270 M2 Server back panel without rear mounted
shows the Sun Fire X4270 M2 Server back panel with rear
FIGURE 1-7
