Sun Oracle Fire X4170 M2 Installation Manual page 35

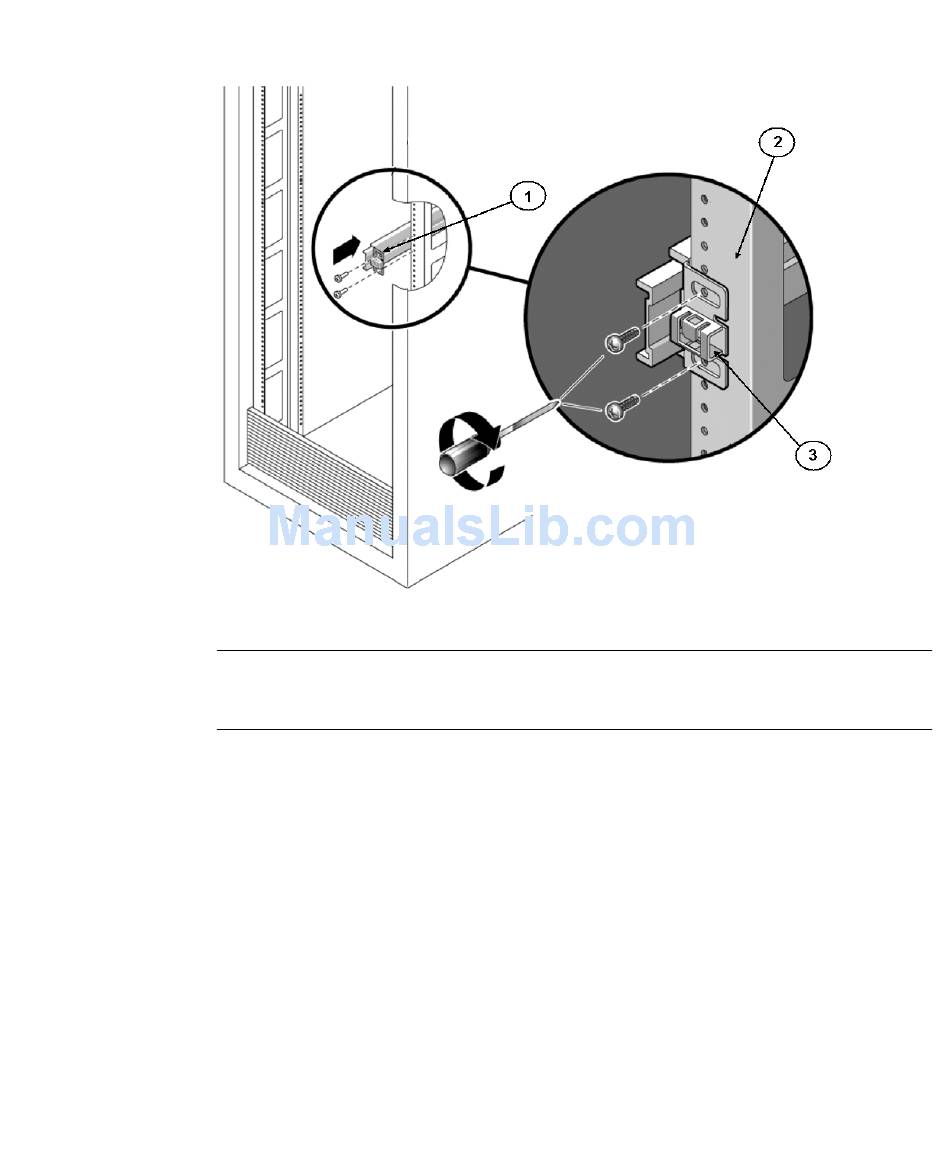

Attaching Slide-Rail Assembly to Rack Post
FIGURE 2-3
Figure Legend
1 Slide-rail assembly
2 Rack post
3 Slide-rail assembly bracket on outside of rack post
Step 1
3. Repeat and
4. From the front of the rack, set the proper width of the rails using the spacer
( ).
FIGURE 2-4
Step 2
for the remaining slide-rail assembly.
Chapter 2 Installing the Server Into a Rack With Slide-Rails 25
