Installation Manual for VISIX Network Cameras

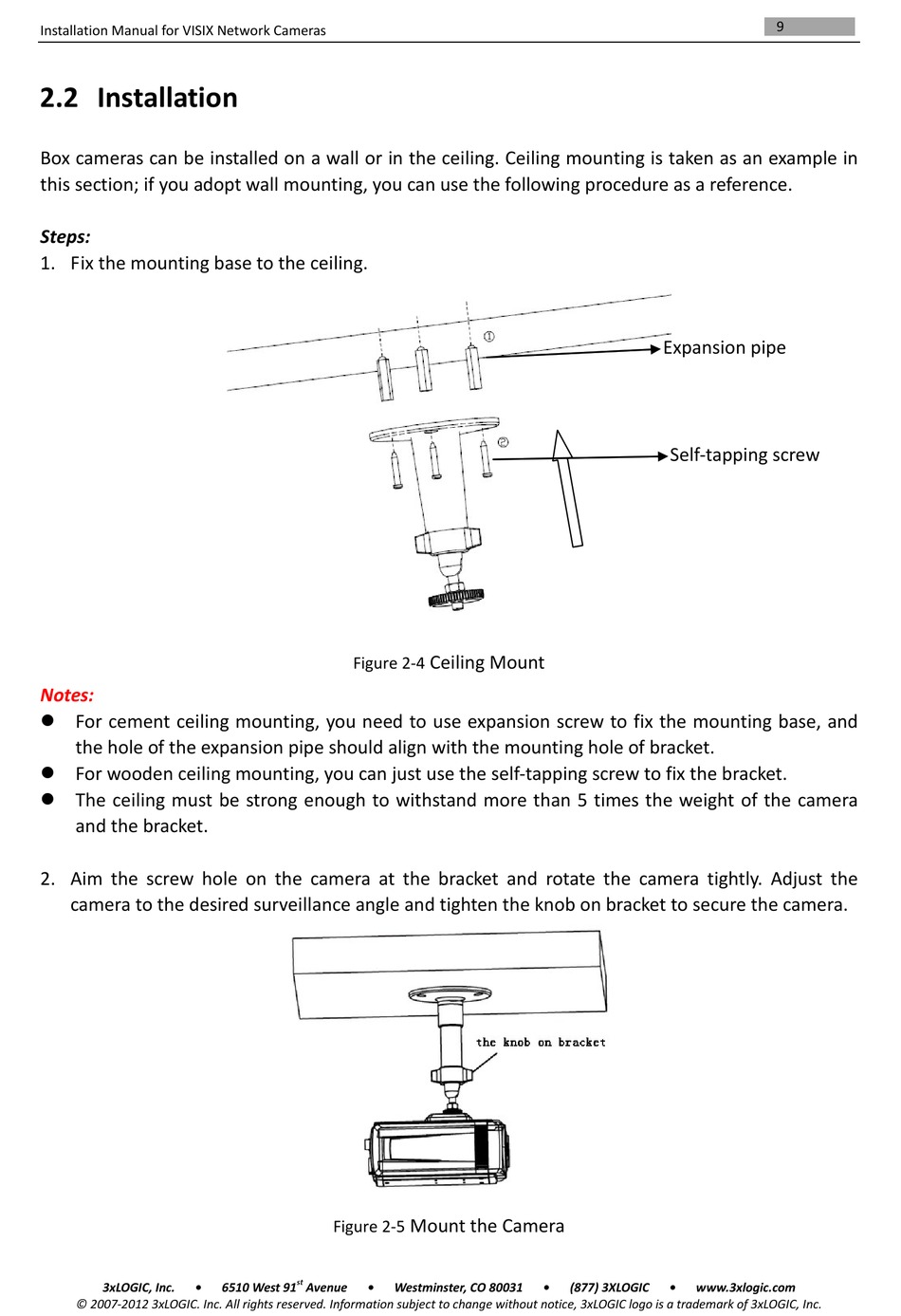

2.2 Installation

Box cameras can be installed on a wall or in the ceiling. Ceiling mounting is taken as an example in
this section; if you adopt wall mounting, you can use the following procedure as a reference.
Steps:
1. Fix the mounting base to the ceiling.
Notes:
 For cement ceiling mounting, you need to use expansion screw to fix the mounting base, and
the hole of the expansion pipe should align with the mounting hole of bracket.
 For wooden ceiling mounting, you can just use the self-tapping screw to fix the bracket.
 The ceiling must be strong enough to withstand more than 5 times the weight of the camera
and the bracket.
2. Aim the screw hole on the camera at the bracket and rotate the camera tightly. Adjust the
camera to the desired surveillance angle and tighten the knob on bracket to secure the camera.
3xLOGIC, Inc. •
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.
Figure 2-4
Figure 2-5
st
6510 West 91 Avenue •
Ceiling Mount
Mount the Camera
Westminster, CO 80031 •
Expansion pipe
Self-tapping screw
