Installation Manual for VISIX Network Cameras

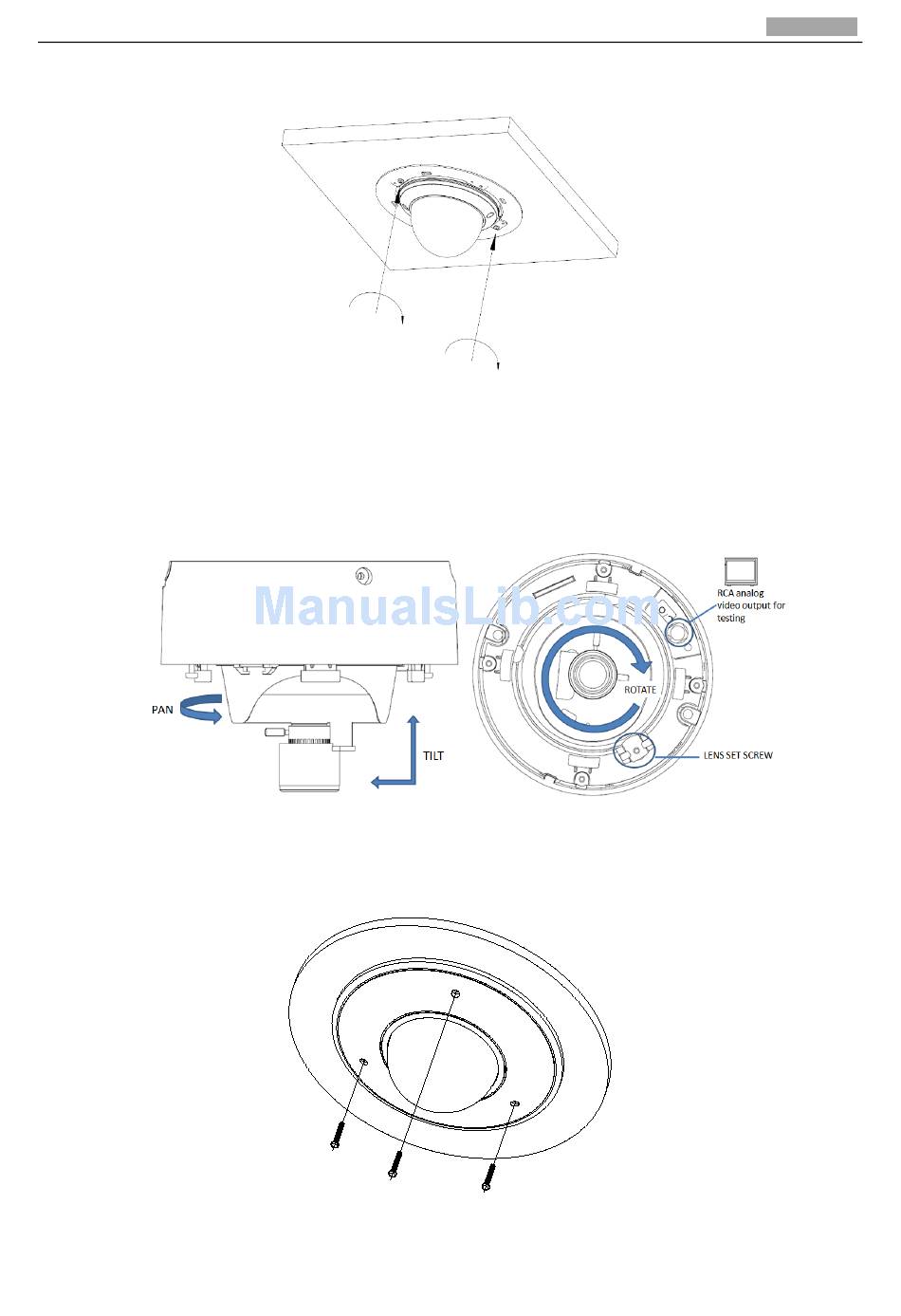

5. Fasten the lock screws to secure the dome camera.
6. Remove the lower dome and connect the RCA analog video output with a monitor to view the
image of the camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired
surveillance angle. Adjust the lens focus to obtain a perfect image. Fasten the lens set screw.
7. Install the trim plate with screws to finish the installation.
3xLOGIC, Inc. •
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.
Lock screw
Figure 3-12
Figure 3-13
Reinstall the Lower Dome
Figure 3-14
st
6510 West 91 Avenue •
Secure the Camera
Adjust the Image
