Installation Manual for VISIX Network Cameras

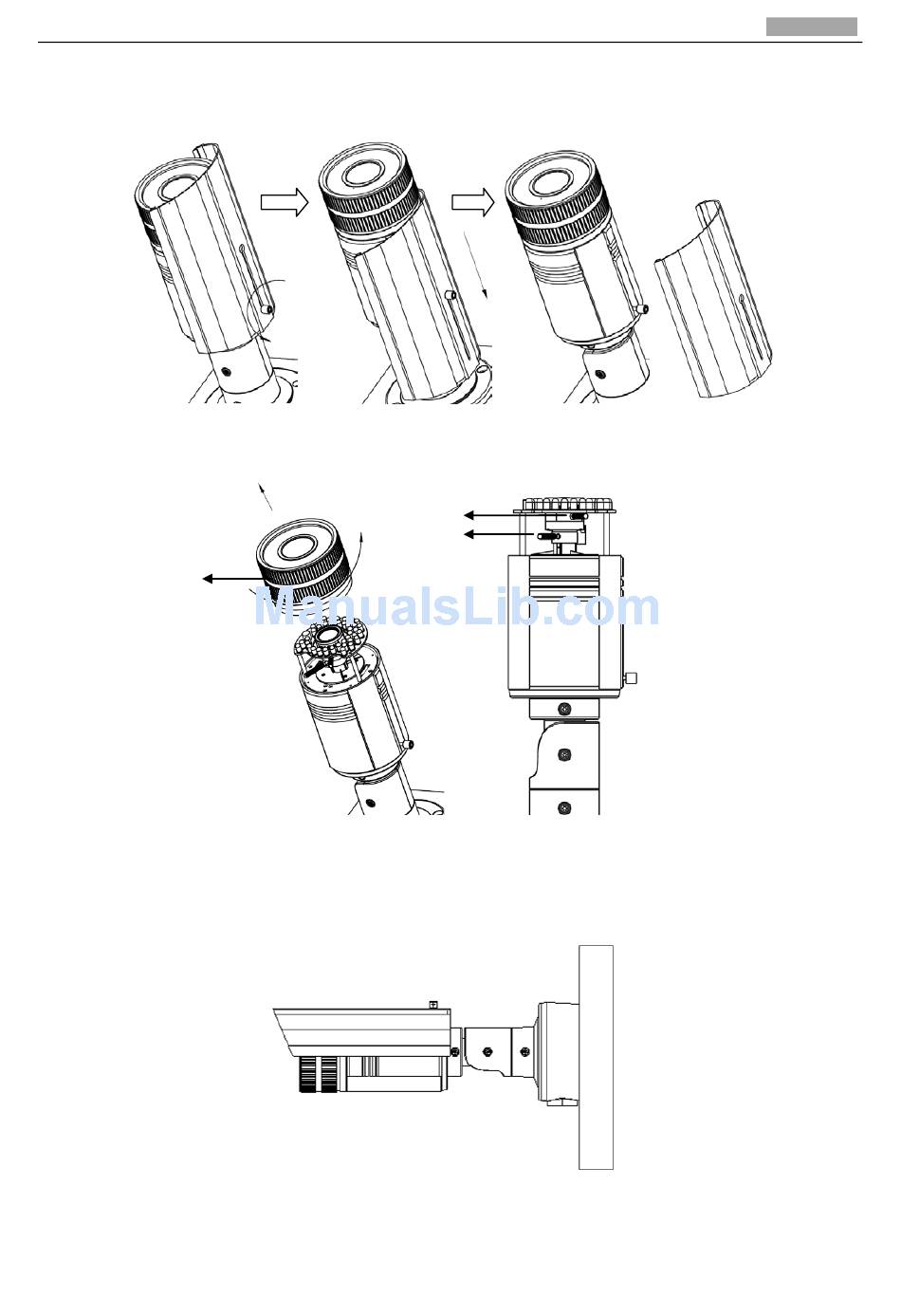

6. Loosen the lock screw on the sun shield and move the sun shield until you can remove it.
Remove the sun shield.
7. Rotate to remove the front cover from camera and adjust the lens to get a clear image.
Front cover
8. Fix the lens; reinstall the front cover and the sun shield to finish the installation.
Note: Reinstall the front cover until aligning the mark on the front cover with the mark on the
camera.
3xLOGIC, Inc. •
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.
Figure 4-7
Adjust the lens
Figure 4-8
Figure 4-9
st
6510 West 91 Avenue •
Remove the Sun Shield
Adjust the Lens
Reinstall the Camera
