Installation Manual for VISIX Network Cameras
Notes:
 After the powering on of the camera, pressing and holding the RESET button for about 10
seconds can reset all the parameters to the default settings.
 The type of auto-iris interface is shown in Figure 2-2, and the definition of each pin is shown
below:
Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+
and Drive- pins are used when the auto-iris is driven by DC.

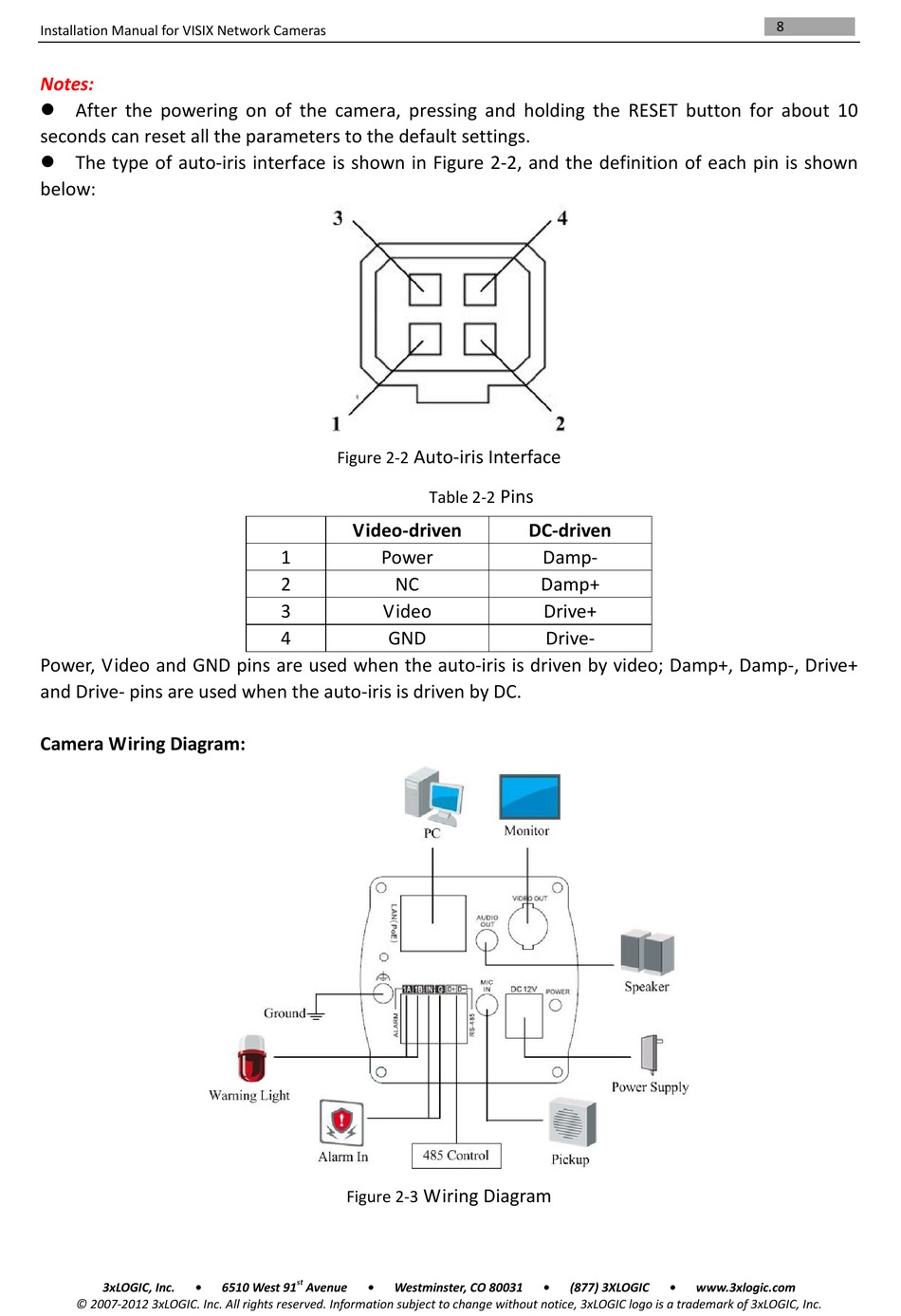

Camera Wiring Diagram:
3xLOGIC, Inc.
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.
Figure 2-2
Video-driven
1
Power
2
3
Video
4
GND
Figure 2-3
st
6510 West 91
Avenue
Auto-iris Interface
Pins
Table 2-2
DC-driven
Damp-
NC
Damp+
Drive+
Drive-
Wiring Diagram
