Installation Manual for VISIX Network Cameras

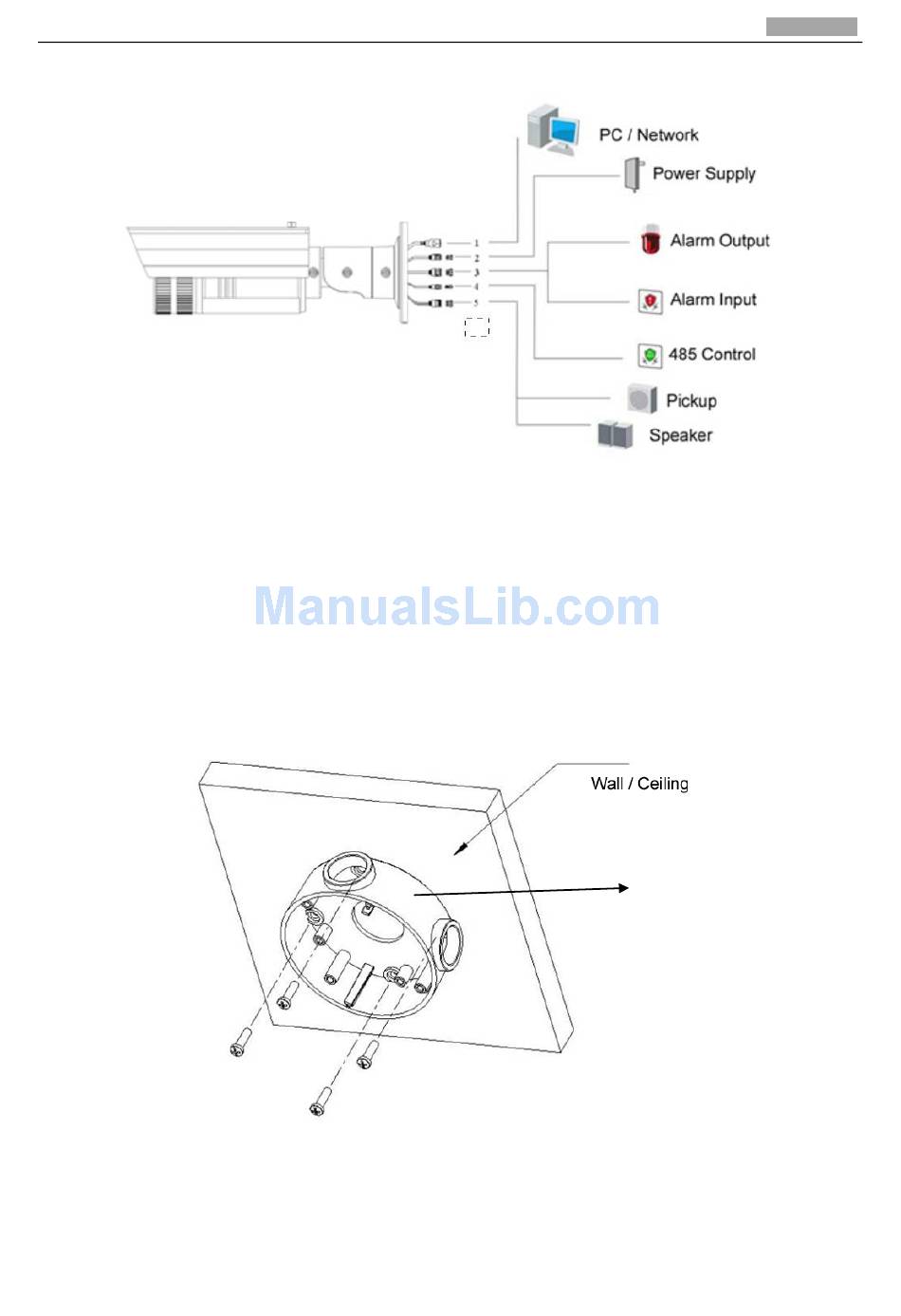

Camera Wiring Diagram:
Wiring Diagram
Figure 4-3

4.2 Installation

Bullet camera can be installed to wall or ceiling. Wall mounting is taken as an example in this section;
if you adopt ceiling mounting, you can also take below procedure as a reference.
Steps:
1. Fix the mounting base to the wall. The mounting base can also be used to hide the cables.
Mounting base
Secure the Mounting Base
Figure 4-4
