Installation Manual for VISIX Network Cameras
Steps:

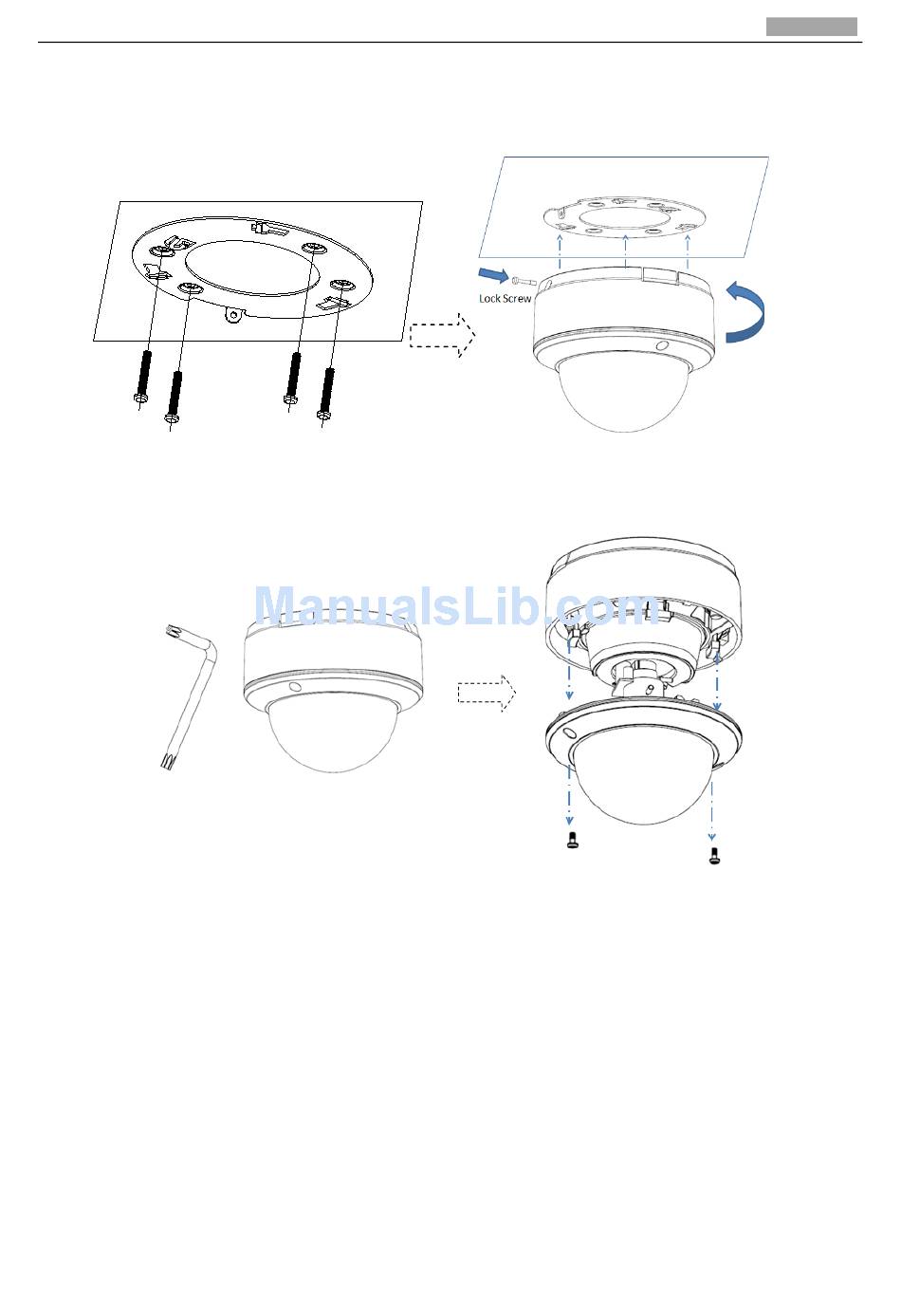

1. Use the screws to fix the mounting base to the ceiling; rotate the back box counterclockwise to
secure it to the mounting base; use the lock screw to secure the dome camera.
2. Loosen the set screws with the hex key (supplied) to remove the lower dome.
3. Connect the RCA analog video output with a monitor to view the image of the camera. Loosen
the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the
lens focus to obtain a perfect image. Fasten the lens set screw.
3xLOGIC, Inc. •
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.
Figure 3-4
Remove the Lower Dome
Figure 3-5
st
6510 West 91 Avenue •
Mount the Camera
