Installation; Ceiling Mounting - 3xLogic VISIX Installation Manual

12
Installation Manual for VISIX Network Cameras

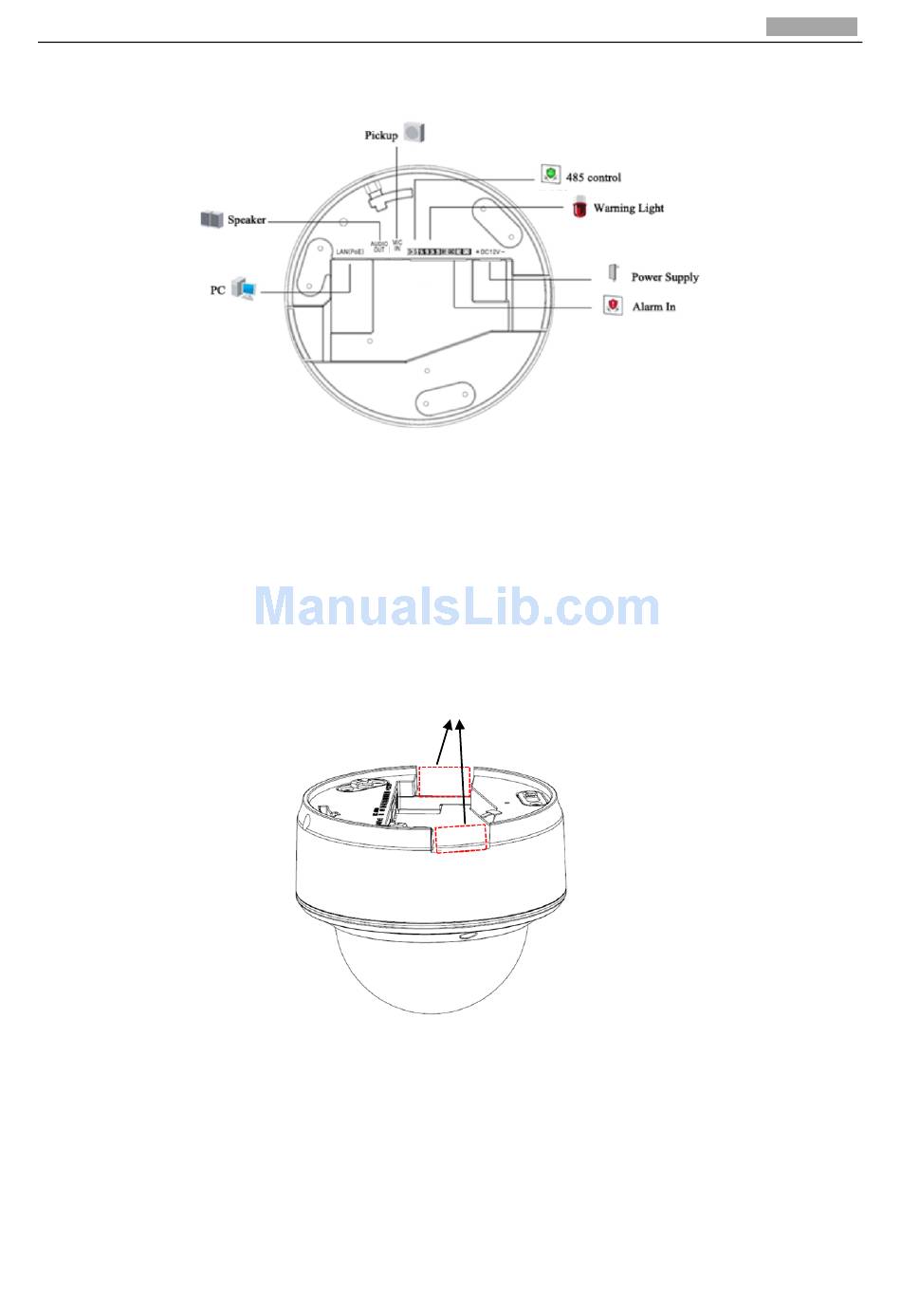

Camera Wiring Diagram:
Wiring Diagram
Figure 3-2

3.2 Installation

Ceiling mounting:

Note: If required, you can use a plier to remove the clip (one or two) on the side of the back box and
then route cables through the opening to secure the cables on the ceiling.
Clips
Remove the Clip
Figure 3-3
