2 VX-2S-OP-30X Installation
Before you start:
Check the package contents and make sure that the device in the package is in good condition and all the assembly
parts are included.
NOTE:
Do not touch the bubble shield directly by hand. The camera image may appear blurred as a result.
n
Do not power the speed dome on until installation is finished. To ensure the safety of personnel and
n
equipment, all the installation steps should be completed with power supply off.
Do not lift or drag the speed dome by its cables; otherwise the performance of the unit's weatherproofing may
n
be affected.
Mounting options are described in the proceeding sections.
2.2 Wall Mounting
This mount must be purchased separately.
3xLOGIC Product Number: VX-WM-PTZ (Wall Mount)
2.2.1 WALL MOUNT
Wall Mount - VX-WM-PTZ
n
Applicable to indoor/outdoor pendant domes.
Mounting Accessories
n
2.2.2 WALL MOUNT INSTALLATION
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.3

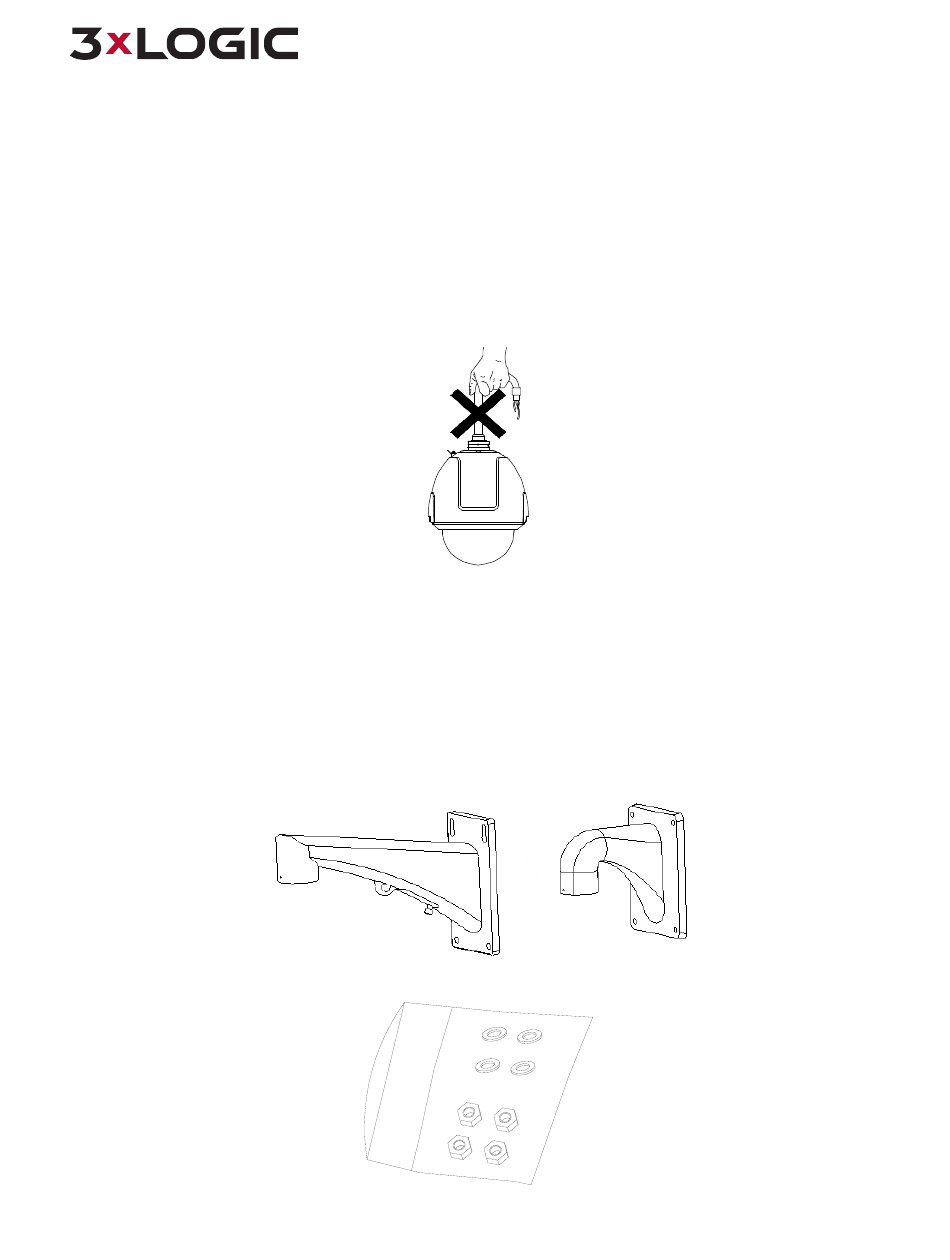

Do Not Pickup or Drag by Cables
Figure 2-1
Wall Mount
Figure 2-2
Nuts and Flat Washers
Figure 2-3
