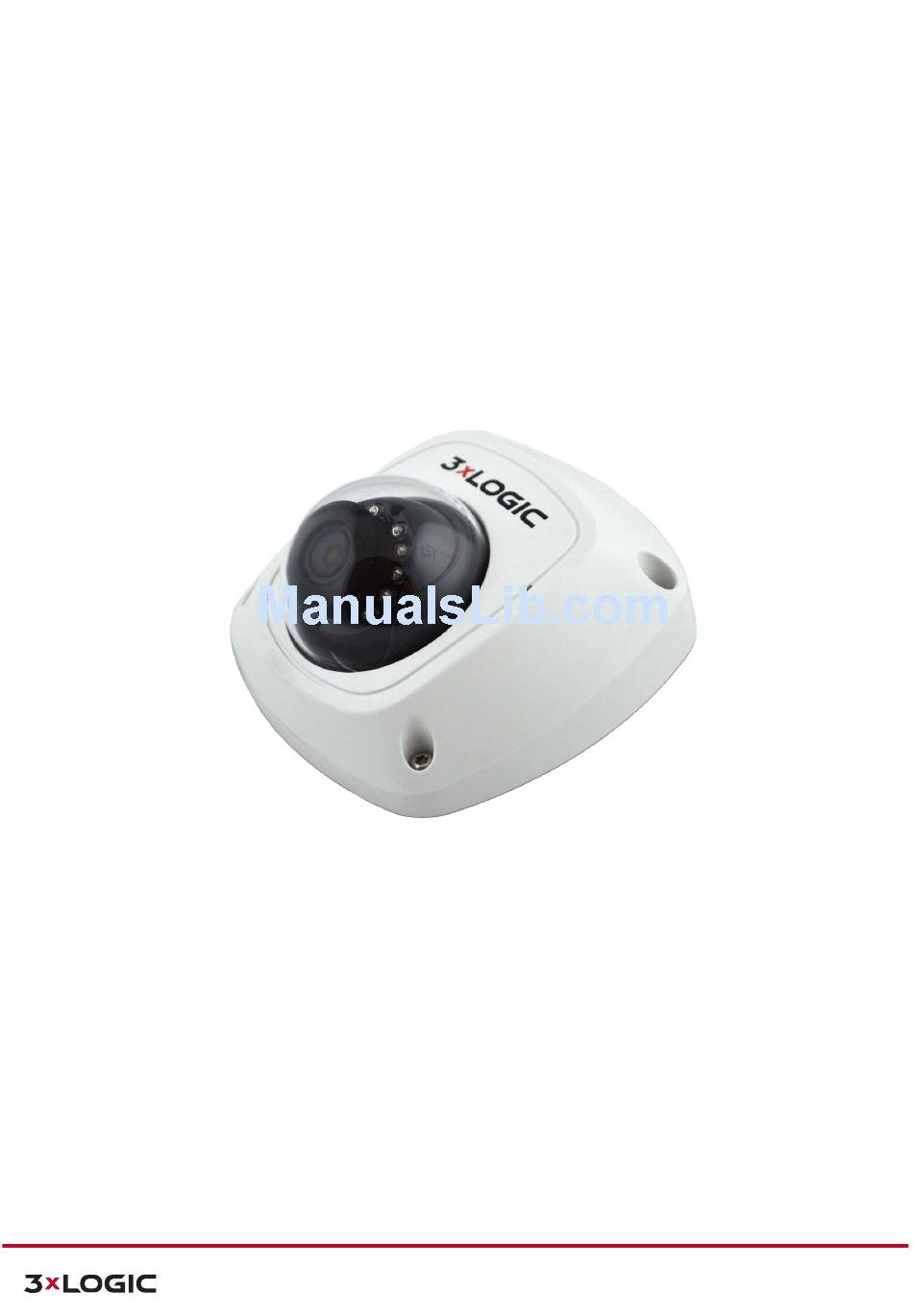

- Page 1 V-Series Camera Quick Start Guide | VX-4V28-MD-IAW VISIX V-Series All-in-One Camera – Gen II VX-4V28-MD-IAW Quick Start Guide v01-2017 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 2: Table Of Contents
ONITORING AND IEWING DDING A ERIES AMERA TO LIENT LOGIC V II M EMOTE ONITORING AND IEWING DDING A ERIES AMERA TO OBILE NDROID AND OS) 13 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 3: Camera Overview
Press and hold RESET for 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 4: Installation
Drill Template/Adapter Plate Figure 1-2 Loosen the set screw on the front cover to disassemble the camera with the supplied Allen key. Disassemble the Camera Figure 1-3 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... - Page 5 Use pliers to remove the removable part and route the cables via side outlet (as shown in Figure 5-7) if no cable hole is drilled in step 1, and connect the corresponding cables. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
- Page 6 Align the front cover to the dome drive and tighten the set screws on the front cover to complete the installation. Install the Front Cover Figure 1-8 Tear off the protection film softly to complete the installation. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 7: Installation - Pendant Mount
Attach the adapter plate to the ceiling bracket with the supplied PM4x8 screws. Attach the Adapter Plate Figure 1-9 Install the dome drive to the adapter plate. Attach the Dome Drive Figure 1-10 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 8: Installation - Wall Mount
Install the wall bracket to the wall with the supplied screws in the wall bracket package. NOTE: Wall mount product number: VX-WM-MD. Separate mount purchase is required if wall bracket mounting is adopted. Install Wall Bracket Figure 1-12 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... - Page 9 Attach the dome drive to the wall bracket with the supplied screws. Attach the Camera Figure 1-14 Align the front cover to the dome drive and tighten the set screws on the front cover to complete the installation. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 10: Installation - Micro Sd Card
Insert the Micro SD card to the card slot until you hear a click. (Optional) Slightly push the inserted Micro SD card to eject it from the camera. Mirco SD Card Inserting / Ejecting Micro SD Card Figure 1-17 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC... -
Page 11: Camera Setup
All V-Series camera models can be quickly setup for recording and remote monitoring out-of-the-box using one of two tools; either the 3xLOGIC VSX Setup Tool (iOS and Android) mobile app or 3xLOGIC All-in-One PC Setup software, depending on your network environment. -
Page 12: Camera Setup - Non-Dhcp Networks
(requires DHCP) cannot be used to configure the camera. A laptop connected to the same network as the camera will be required to discover the camera and assign a valid IP address using the 3xLOGIC All-in-One PC Setup. -
Page 13: Remote Monitoring And Viewing - Adding A V-Series Camera To
Mobile (Android and iOS) Steps: 1. To interface a V-Series camera with 3xLOGIC’s View Lite II mobile app, launch the View Lite II app on your mobile device (Android OS is pictured in the below screenshot, however, the process is identical in the iOS version). - Page 14 7. Fill in the remaining required fields and tap Save to save the V-Series camera to View Lite II. A user may now add the camera stream to the View Lite viewer using the same process as adding VIGIL Server, VCM or 3xCLOUD networked cameras. 10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC...
- Page 15 Toll Free: 877.3xLOGIC www.3xlogic.com © 2017 3xLOGIC Inc. All rights reserved. Information in this document is subject to change without notice. 3xLOGIC and the 3xLOGIC logo are trademarks of 3xLOGIC, Inc. all other trademarks are property of their respective owners.
