5. Insert the hex key into the hole marked in the Figure 6-7 and rotate the hex key to adjust the
panning position and tilting position until getting the desired surveillance angle. Tighten the set
screws.
Notes:
 As the lens of camera has already been factory adjusted to the best imaging effect, you just need
to adjust the panning position and tilting position to get the desired surveillance angle.
 Reinstall the cover before viewing the image of the camera because you may get an unclear
image without the cover.
3xLOGIC, Inc. •
© 2007-2012 3xLOGIC. Inc. All rights reserved. Information subject to change without notice, 3xLOGIC logo is a trademark of 3xLOGIC, Inc.

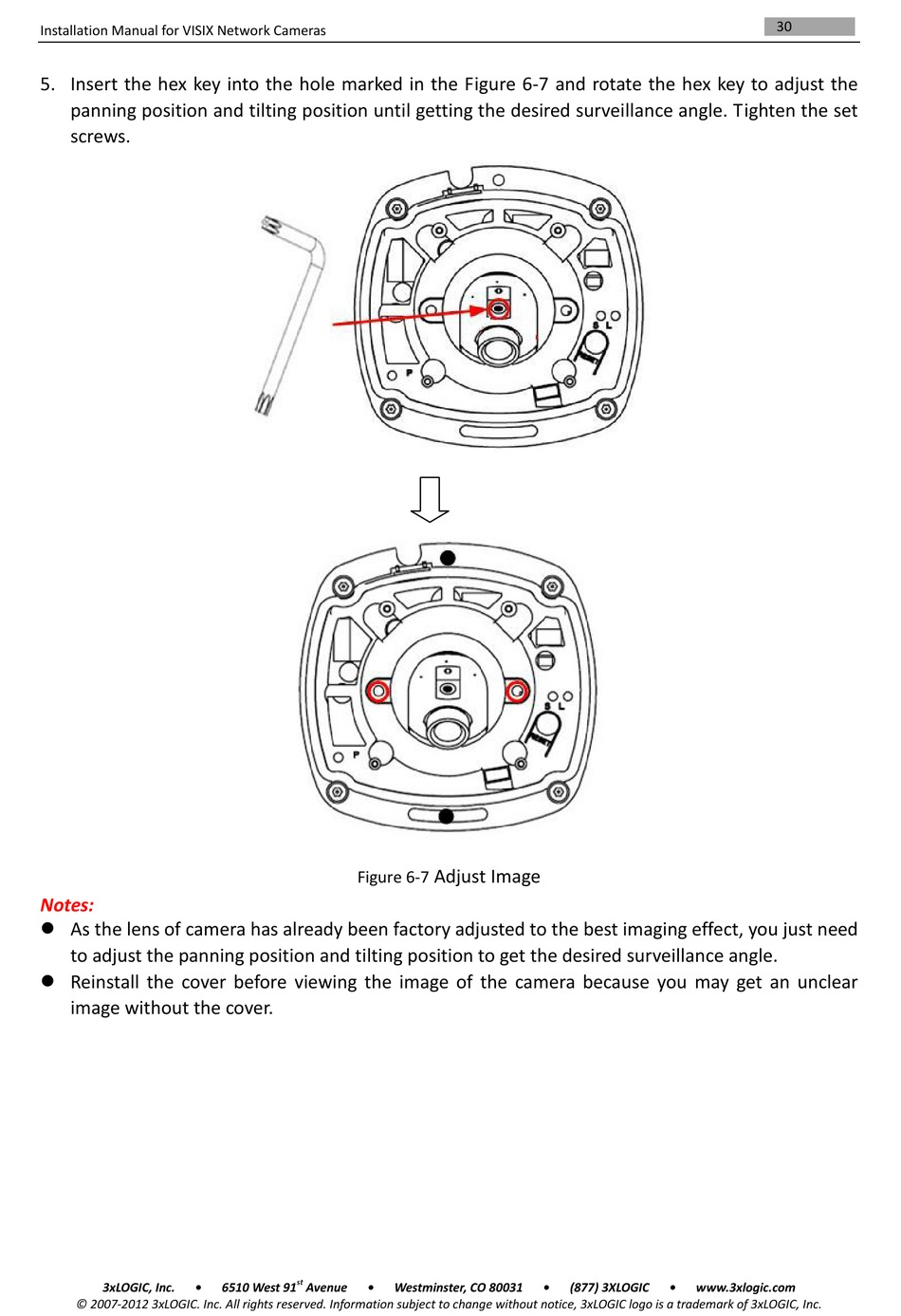

Figure 6-7
