Note:
After the powering on of the camera, pressing and holding the RESET button for about 10 seconds
can reset all the parameters to the default settings.

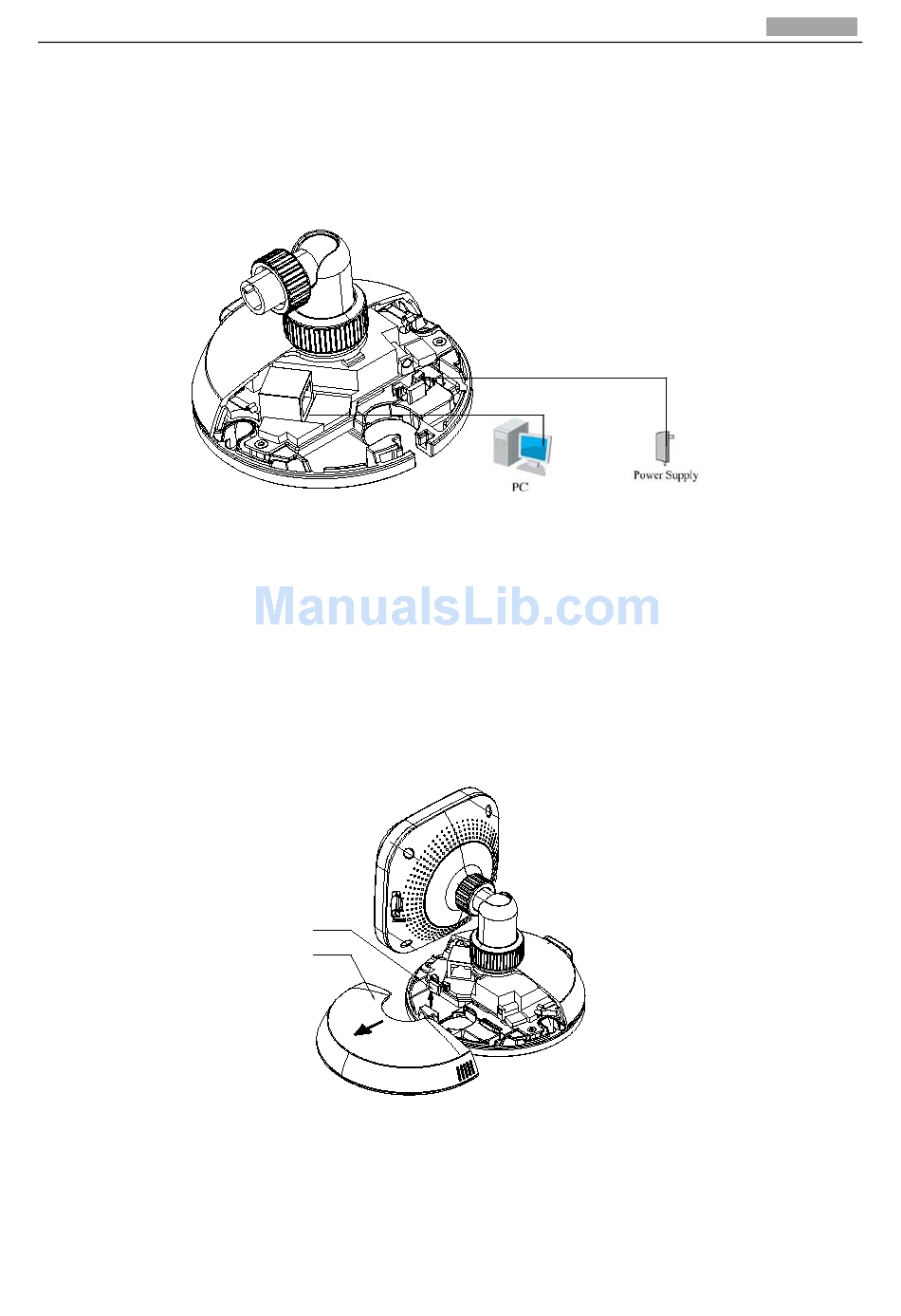

Camera wiring diagram:
Wiring Diagram
Figure 5-2

5.2 Installation

The cube camera can be installed to wall, ceiling or table. Ceiling mounting is taken as an example in
this section; if you adopt wall mounting or table mounting, you can also take below procedure as a
reference.
Steps:
1. Slide the right cover to remove it from the camera. Remove the fixator.
Fixator
Right cover
Remove the Side Cover
Figure 5-3
2. Remove the battery cover; insert the battery; reinstall the battery cover.
Note: If you want to install the battery, then you can take this step.
st
