INSTALLATION – CEILING MOUNT
Steps:

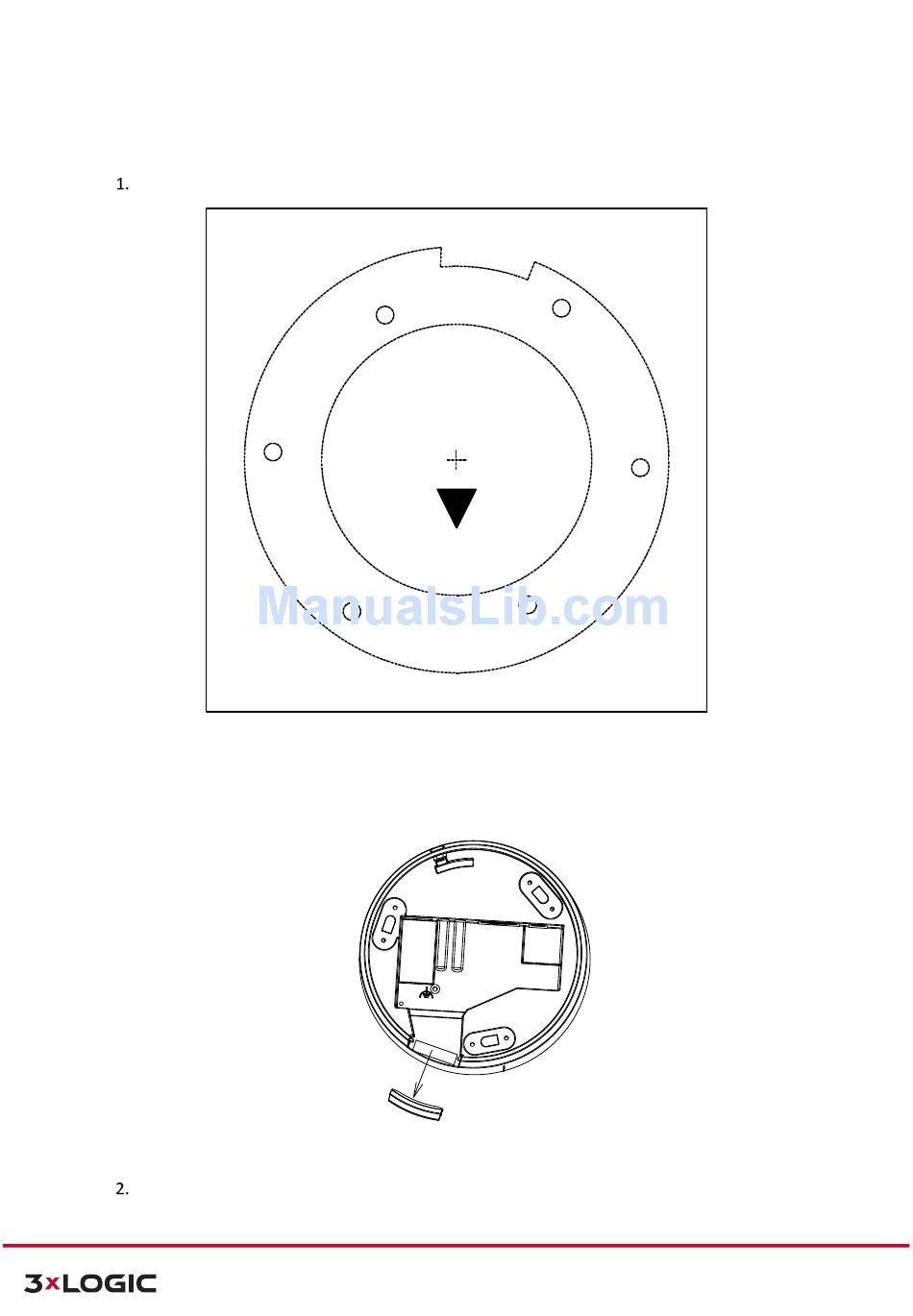

Drill the screw holes and the cable hole according to the supplied drill template.
NOTE: (Optional) Routing the cable from the side outlet instead of the cable hole drilled on the ceiling is
possible. Use pliers to remove the part shown in Figure 1-5, and simply route the cables through the side
outlet.
Attach the adapter plate to the ceiling with the supplied screws.
12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
2
Hole
1
BOTTOM
1
Drill Template
Figure 1-4
Side Outlet
Side Outlet
Figure 1-5
V-Series Camera Quick Start Guide | VX-3V-ID-RIAWD
1
2
1
5
