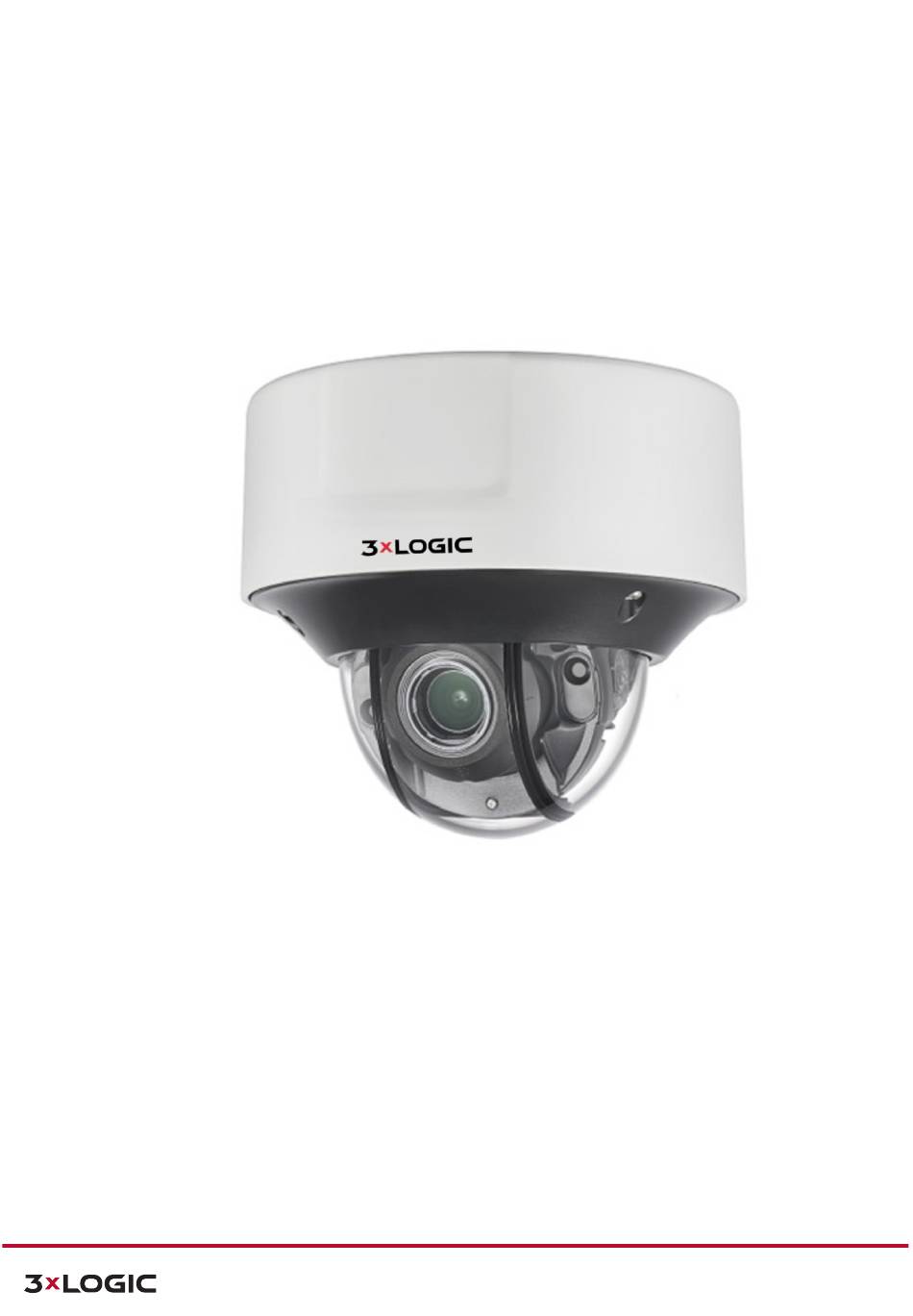

- Page 1 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD VISIX S-Series Outdoor IP Dome Camera VX-2M-OD3-RIAH Quick Start Guide v01-2019 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 2: Table Of Contents
................16 ETECTING CTIVATING HANGING THE AMERA DDRESS 1.1 A VISIX S-S VIGIL S .................... 17 DDING A ERIES AMERA TO ERVER 1.2 A .......................... 19 CCESS ROWSER 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 3: Camera Overview
IP address, port No., etc. AVAILABLE MOUNTS VX-WM-147: Wall Mount Adaptor VX-PM-147: Pendant Mount Adaptor VX-POLE-147: Pole Mount Adaptor VX-CM-147: Corner Mount Adaptor 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 4: Installation
Steps: 1. Use the supplied hardware to unfasten the dome screws and remove the from the chassis. 2. Insert the microSD card into the available reader slot. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 5: Installing The Camera - Cabling Routed Through Base
Route the cabling harness through the center cable hole. Use a Philipps-head screwdriver to fasten the mounting base to the installation surface. Proceed to Installation – Preparing Camera Housing for next steps. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... -
Page 6: Installing The Camera - Cabling Routed Through Side
Use a pencil and the mounting base to mark the drilling points on the installation surface. Drill the anchoring points into the installation surface. Insert the anchors. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... - Page 7 The routing hole cap should fit snuggly into place with the mounting plate. Use a Philips head screwdriver to fasten the mounting base to the installation surface. Proceed to Installation – Preparing Camera Housing for next steps. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 8: Installation - Preparing Camera Housing
(A). If you are routing the cable through the side of the camera, no action is required (B). 1. Using a Philipps-head screwdriver, attach the GND wire to the grounding terminal located in the camera’s housing 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC... - Page 9 2. Attach the supplied RJ-45 piercing cap to the RJ-45 cable head. 3. Pierce the center weatherproof gasket seal and pull the RJ-45 cable through the gasket. Always pull the cabling through gently to avoid tearing the gasket. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 10 4. Use the supplied Torx key to pierce the remaining seals and insert the remaining cabling through the weather seals. Warning: Only pass a single segment of cabling through a seal. Attempting to pass more than one segment of cabling can compromise the seal. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 11 Be sure to dispose of the RJ-45 piercing cap. 7. Fasten the camera housing to the mounting plate using the supplied Torx key. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 12 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD Attach the safety wire located in the camera housing to the clip located on the camera body. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 13 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD Remove the alarm and power terminal blocks. Wire the alarm and power blocks according to the labelling on the wiring / blocks. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 14 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD Attach all cabling and blocks to the camera’s inputs / outputs. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 15 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD Fasten the camera body to the camera housing using the supplied torx key, Fasten the dome to the camera body using the supplied torx key. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
-
Page 16: Camera Setup
After networking the camera with the LAN, the user must obtain the camera’s IP address to connect to the device. To obtain the IP address, the 3xLOGIC Camera (VISIC IP) Setup Utility, a software tool which can automatically detect online network cameras on the LAN, add these devices to VIGIL Server and list the device information including IP address, subnet mask, port number, device serial number, device version, etc…... -
Page 17: Adding Avisix S-Series Camera To Vigil Server
1.1 Adding a VISIX S-Series Camera to VIGIL Server Purpose: By following the steps outlined in this section, a user can add a camera to VIGIL Server using the 3xLOGIC Camera (VISIX IP) Setup Utility. The utility was previously utilized in Section 2.1.2 to detect and change the camera’s IP address. - Page 18 S-Series Camera Quick Start Guide | VX-4M-OD3-RIAWD 3xLOGIC Camera (VISIX IP) Setup Utility – Selecting Camera from Online Devices List Figure 1-2 7. After the utility successfully accesses the camera, click Save to VIGIL. A window will deploy where the user can assign the camera’s stream profiles.
-
Page 19: Access Ui Via Web Browser
The username/password for the camera will have been configured during camera activation If the camera has already been configured using one of 3xLOGIC’s setup tools (VIGIL Easy Setup Wizard, 3xLOGIc Camera Setup Utility) then default credentials will have been changed by the installer (this is a standard security precaution enforced by the setup tools). - Page 20 After the Web Components plugin successfully install, you can access and operate the camera’s browser interface. Visit the 3xLOGIC Document Library for the latest available support documentation. 12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC...
- Page 21 Toll Free: 877.3xLOGIC www.3xlogic.com © 2019 3xLOGIC Inc. All rights reserved. Information in this document is subject to change without notice. 3xLOGIC and the 3xLOGIC logo are trademarks of 3xLOGIC, Inc. all other trademarks are property of their respective owners.
