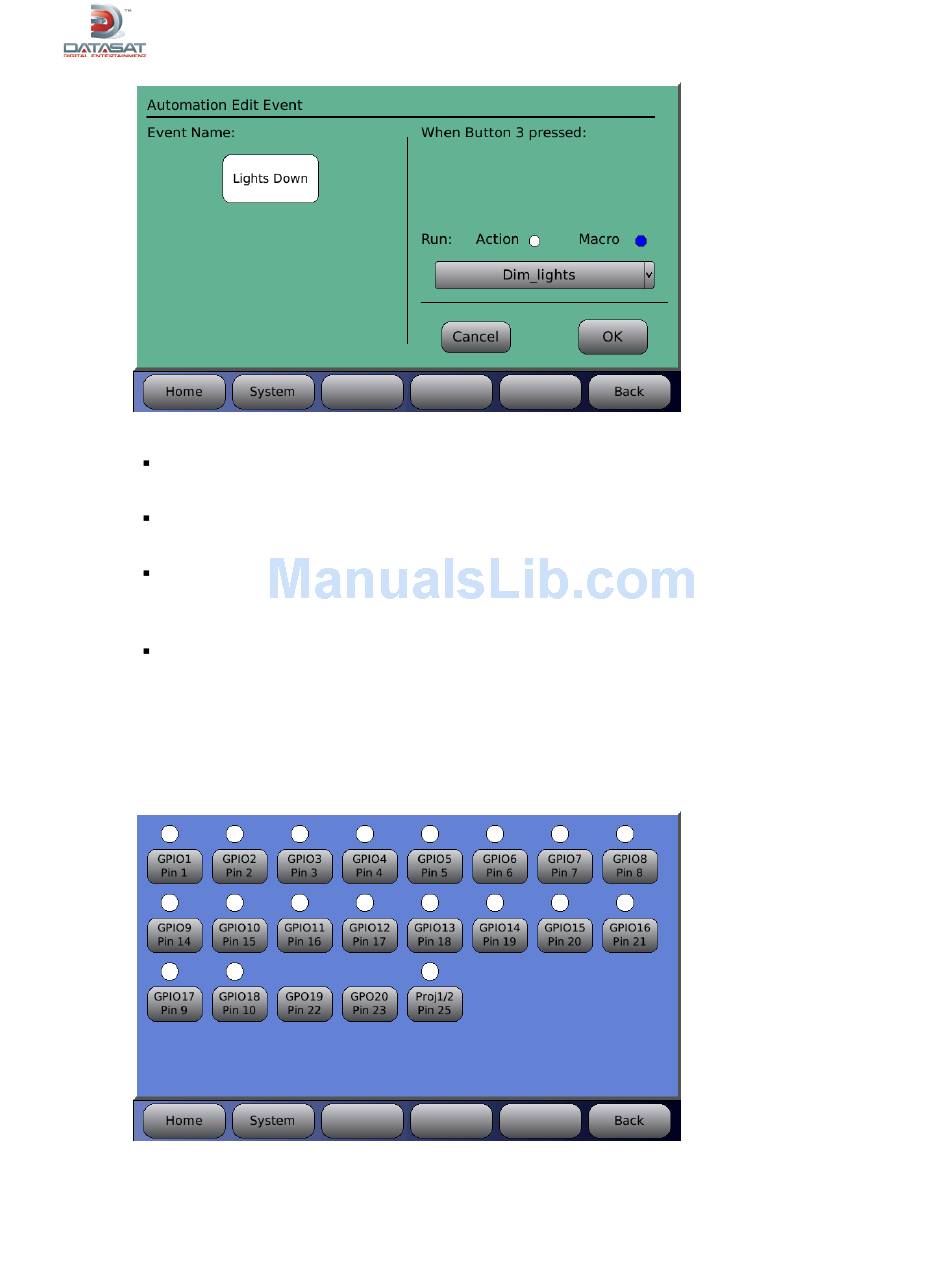

Figure 74. Button Assignment
To enter or change the button title, touch the Event Name box to select. A keyboard screen
will open allowing you to type in a new title for this button.
To assign a macro to the button, select the Macro button, touch the Macro drop down list
and select from the listing. Touch OK when finished, or touch Cancel to cancel this task.
To assign an Action to the button, select the Action button and touch the white box that
appears below it. This will bring up the Automation Edit Action screen. See page 86
above.
Touch OK when finished, or touch Cancel to cancel this task.
4.5.4 Automation Test Screen
The Automation Test Screen provides an easy way to test that the automation signals to and from the
AP20 are correctly wired and operational.
Menu (System) > Automation > Test
Figure 75. Automation Test
