4.5.1.1 Add New Event
Selecting the Add New Event button takes you into the "Automation Edit Event" screen and
automatically assigns a temporary event name, which is added to the event list.
Menu (System) > Automation > Events > Add New Event

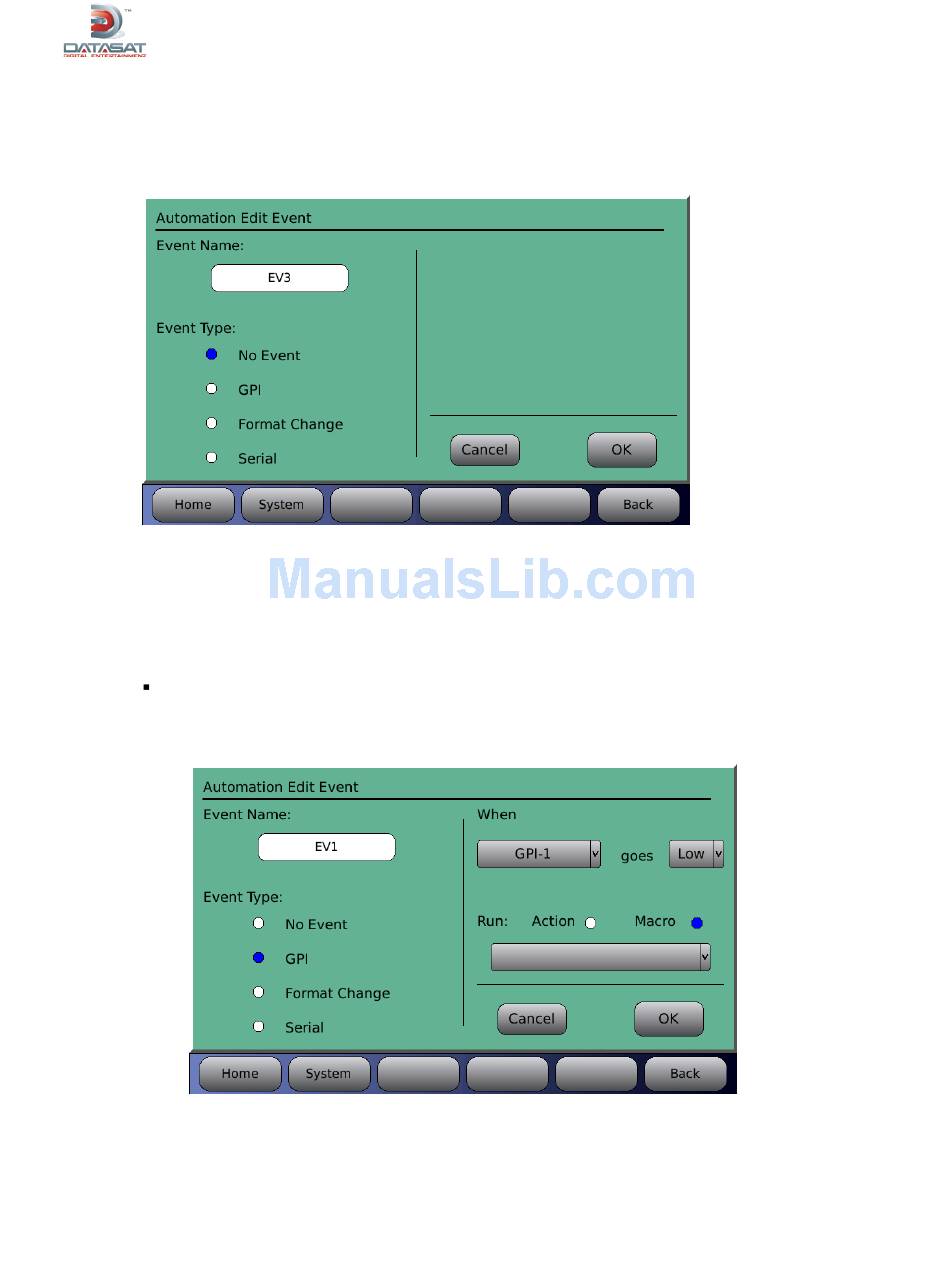

Figure 67. Automation Edit Event Screen
Event Name - Touching the Event Name box will bring up the keyboard screen and allow editing of
the event name. Choose a name that is meaningful.
Event Type – When an event is first added the event type defaults to "No Event", this means the
event type is not configured and should be replaced with one of the other event types.
GPI – Configure an input event
When GPI is selected, an input may be configured to run either a single action or a macro
when it receives a signal.
Figure 68. Automation Edit Event Screen - GPI
Select an input (GPI-1 thru 18 or Projector) from the dropdown list. Select the signal (Low
or High). Select an Action or a Macro to run. If Macro is selected, choose a macro from the
