4.3.7.3 Dirac Optimization
The Dirac Live setup procedure must be used to copy Dirac configuration setup files to the
AP20 before this screen becomes functional. Ignore this screen if you are not using Dirac
Live software to setup the AP20.
Menu (System) > Formats > Audio EQ Setup > Dirac Optimization

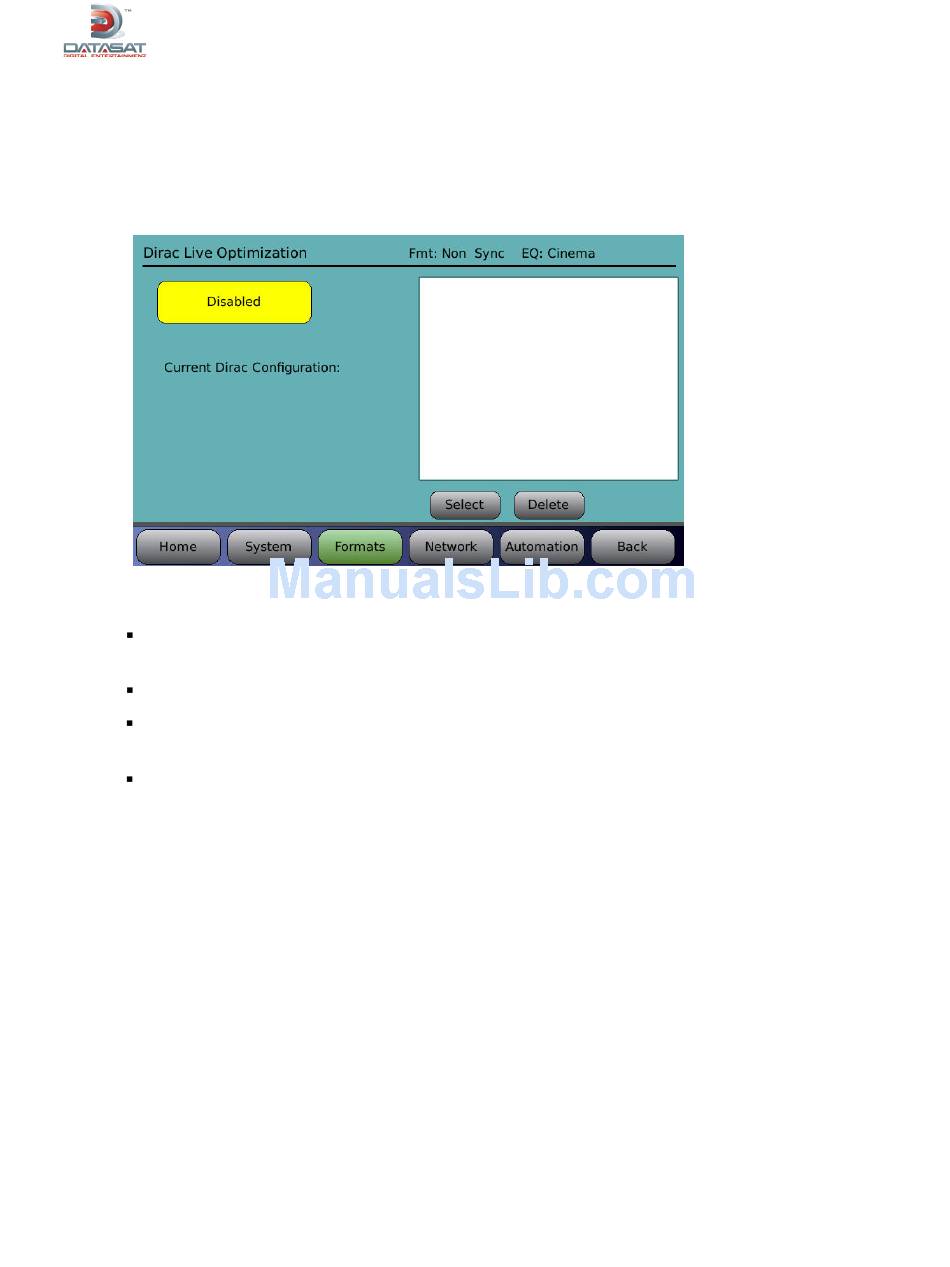

Figure 50. Dirac Optimization Screen
Dirac Room Optimization Enabled/Disabled – Touching the button will toggle between
enabling and disabling the Dirac Optimization.
Current Dirac Configuration – Displays the name of the current Dirac configuration.
Select – Select a configuration from the list of saved configurations in the box above, then
touch the Select button. This configuration will now become the current Dirac configuration.
Delete – Select a configuration from the list of saved configurations in the box above, then
touch the Delete button. The configuration will be deleted from the list and from the memory
of the AP20.
4.3.7.4 Third Octave EQ
Selecting the Third Octave EQ button from the EQ Setup screen will bring up a screen
similar to that shown below. See the topic
a usage example.
Menu (System) > Formats > Audio EQ Setup > Third Octave EQ
In the upper left-hand portion of the RTA section, the current Format and current master
fader value are shown. In the upper right-hand portion, the current audio level and the 0 dB
reference are displayed.
