Page 2 AP20 Audio Processor Installation and Operating Guide Version 1.2 Effective Date: November 2010 Document # 9301H39200 Datasat Digital Entertainment 9631 Topanga Canyon Place Chatsworth, CA 91311...
Page 3 The content of this publication is subject to change without notice. Datasat Digital Entertainment assumes no obligation to notify you of any changes or updates. While Datasat Digital Entertainment believes this publication is accurate, due to ongoing improvements and revisions, Datasat Digital Entertainment cannot guarantee the accuracy of printed material, nor can it accept responsibility for errors or omissions.
Page 4 AP20 Installation and Operating Guide Page 3 Record of Changes Manual Version / Description Date 1.0 April, 2010 Preliminary version 1.1 June 2010 Version 1.1 release Version 1.2 release. Includes H338 film card, 8-channel version and V1.02.00 1.2 November 2010 software feature updates.
Page 5 AP20 Installation and Operating Guide Page 4 TABLE OF CONTENTS INTRODUCTION PART 1: OPERATION OPERATING AP20 – O ROCEDURES PERATIONS RONT ANEL ONTROLS AND NDICATORS AP20 P OWERING ROCESSOR AVIGATING THROUGH THE ENUS CREEN 1.4.1 DJUSTING THE ADER 1.4.2 OOTH ONITOR OLUME 1.4.3...
Page 6 B. Interface Wiring Diagrams C. AP20 Wiring and Block Diagrams D. Specifications E. Dolby® Digital Operation F. Optical Film Card (H338) – Option G. 8-Channel AP20 (Includes 16-Channel upgrade instructions) AP20 Installation & Operating Guide Document # 9301H39200 Ver. 1.2...
Page 7: Introduction

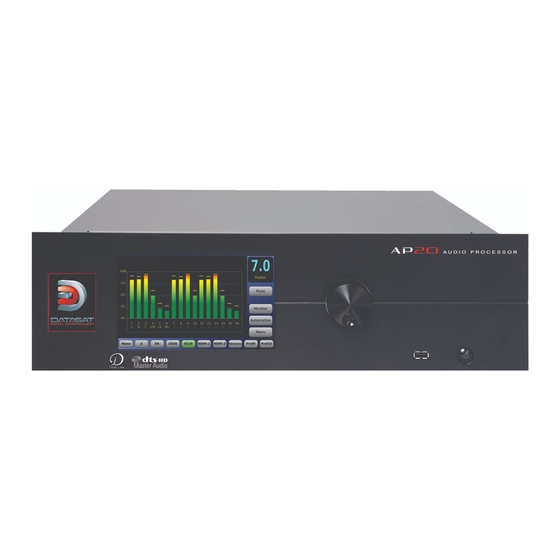

Page 6 Introduction This manual explains the AP20 Audio Processor setup and operation. It contains full instructions for installing hardware and software, setting up audio playback, configuring the system, performing maintenance and troubleshooting, and setting up and operating optional functions.
Page 8: Limited Warranty
All internal control and data lines are available to expansion cards to service future user needs. To get the most out of your AP20, we suggest that you review this manual and keep it available during system installation and initial operation.
Page 9 We publish the Tech Talk newsletter with tips and updates for Service Technicians. Tech Talk is published quarterly, and e-mailed. If you would like to be added to our mailing list, contact Datasat Digital Entertainment Technical Support. It is also posted on the free online Support Center located on our website at www.datasatdigital.com.
Page 10: Contact Information
Entertainment hereby grants you a non-exclusive, non-transferable, revocable, limited license to use the Software solely for your internal business purposes and solely in connection with the AP20 Audio processor. All rights not expressly granted to you are reserved by Datasat Digital Entertainment.
Page 11 INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, LOSS OF DATA, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO YOUR USE OF THE DATASAT DIGITAL ENTERTAINMENT SOFTWARE OR HARDWARE, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY AND EVEN IF DATASAT DIGITAL ENTERTAINMENT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 12 Connector backshell,25-pin D Caution Notices Power Cord to the AP20 rear panel: The power cord is the main disconnect device. It should be plugged into an easily accessible outlet with surge protection. The power cord is to be used in a minimum type SVT 18/3 rated 250 Volts AC, 10 Amps with a maximum length of 4.5 M, with...
Page 13 AP20 Installation and Operating Guide Page 12 AP20 Installation & Operating Guide Document # 9301H39200 Ver. 1.2...
Page 14: Part 1: Operation
AP20 Installation and Operating Guide Page 13 Part 1: Operation This part of this manual contains information the user needs to operate the AP20 Audio Processor on a day-to-day basis. 1.0 OPERATING AP20 14 1.1 H – O 14 ...
Page 15: Operating Ap20
Turn clockwise to increase volume. See Adjusting the Fader, page 18. Select a format Touch the desired format in the bottom row of the AP20 display. If the format you want is not shown, then that format is not available. See The Home Screen, page 18.
Page 16: F Ront P Anel C Ontrols And I Ndicators
USB port Power button Figure 1: Front Panel Controls and Indicators The front panel contains the following controls and indicators for operating AP20. Power button: Turns the unit on and off LCD/Touch Screen: Displays theater system configuration and status and allows configuration changes.
Page 17: P Owering On The Ap20 P Rocessor
While the system is initializing, the following messages will appear on the AP20 touch screen. Figure 2. Initial screen Figure 3. Loading Coefficients... When the screen messages in the box disappear and the fader value appears, the AP20 is ready. AP20 Installation & Operating Guide Document # 9301H39200 Ver. 1.2...
Page 18: N Avigating Through The M Enus
Is the front panel power switch lighted? Navigating through the Menus Since the AP20 is equipped with a touch screen display, you can navigate easily through the menus by touching any button with your finger. A non-abrasive stylus that won’t scratch the screen can also be used if you prefer.
Page 19: A Djusting The F Ader
The button label and fader display will turn red. The button label will also change to “Muted”. Unmute the AP20 by touching the mute button again, changing format level, or changing formats. Touch it again to un-mute the fader.
Page 20: B Ooth M Onitor V Olume
Figure 7. Fader Muted 1.4.2 Booth Monitor Volume When an external powered speaker is connected to the AP20, the level can be controlled using the monitor volume. To adjust the booth monitor volume, touch the Monitor button. The screen shown in F igure 7 will appear.
Page 21: M Anual A Utomation
AP20 Installation and Operating Guide Page 20 Touch the small button to select a channel for monitoring Figure 9. Monitor Mix Select channel(s), then touch the + or – button to adjust volume from 0 to 10. Touch the small button next to a channel to select it for monitoring.
Page 22: T Roubleshooting (O Peration )
See Powering ON the AP20 Processor, page 16. If the AP20 is mounted in a rack and a breaker is used for the rack, make sure the breaker is ON. Verify the surge protector is powered and is working.
Page 23: Part 2: Installation And Setup
AP20 Installation and Operating Guide Page 22 Part 2: Installation and Setup This part of this manual contains information the theater technician needs to set up and configure the AP20 Audio Processor. PART 2: INSTALLATION AND SETUP INSTALLATION AND SET UP...
Page 24 AP20 Installation and Operating Guide Page 23 4.2.2 AP20 S PDATING OFTWARE 4.2.3 AVING AND ESTORING ONFIGURATION ILES 4.2.4 CCESS ONTROL 4.2.5 4.2.6 YSTEM 4.2.7 ERSION ERIAL UMBER ADDRESS 4.2.8 YSTEM ONITOR ORMATS 4.3.1 URRENT UDIO ORMAT 4.3.2 TARTUP ORMAT 4.3.3...
Page 25: Table Of Contents
AP20 Installation and Operating Guide Page 24 Installation and Set Up 2.1 Installation Checklist This checklist summarizes the installation and setup procedures for the AP20. Table 3: AP20 Installation and Setup Completed Task Description Refer to: Install AP20 in Equipment Rack...
Page 26: P Reliminary I Nspection
2.2.1 Preliminary Inspection Note: Before installing the AP20 unit, take a complete inventory of system components to minimize problems or questions during installation. Additionally, save all packing materials until installation is complete in case you need to return parts to the factory.
Page 27 AP20 Installation and Operating Guide Page 26 14 15 16 17 Figure 11. AP20 Rear Panel Table 4. AP20 Rear Panel Connections ITEM DESCRIPTION ITEM DESCRIPTION Power Entry Module/Power Switch Digital Audio In (CH 1 – 8) – DB25F Option Card Slots (3) Digital Audio In (CH 9 –...
Page 28: C Hassis R Ack M Ounting And C Onnection
3. Connect the supplied power cable between the AP20 unit and the AC mains source. 2.5.1 Rack Mount Recommendations Follow these recommendations if the AP20 unit will be installed in a closed or multi-unit rack assembly. Determine the maximum and ambient temperatures within the rack, since they may be greater than the maximum and ambient temperatures in the room.
Page 29: N Avigating The M Enus
(usually to scroll through a list or to increase/decrease values): Note: When using a laptop to VNC into the AP20, use the up and down arrows to mimic the scrolling action of the front panel adjustment knob.
Page 30: C Reating An A Udio F Ormat
AP20 Installation and Operating Guide Page 29 Menu (System) > Formats In the Audio Format Setup screen, five options appear along the bottom: Input Source, Format Options, Audio EQ Setup, Channel Profile, and Audio Levels. Figure 13. Audio Format Setup Screen 2.7.1 Creating an Audio Format...
Page 31: F Actory P Resets
Third Octave EQ: Calibrated adjustment made by qualified technician Parametric Equalization: Calibrated adjustment made by qualified technician 2.8 Factory Presets The AP20 factory settings include formats for Digital Cinema and Nonsync as described in the table below. Table 5. AP20 Factory Presets...
Page 32: D Efault Eq
AP20 Installation and Operating Guide Page 31 2.8.2 Default EQ The Default EQ appear in the Audio EQ Edit screen for Copy Preset to EQ. See a sample screen at 4.3.7.2 Edit EQs, page 70. There is only one option for Default EQ (Flat), which has EQ filters flat, parametric filters disabled, and Dirac optimization off.
Page 33: Theater Equipment Check
The laptop computer uses a Virtual Network Connection (VNC) to communicate with the AP20. The front panel touch-screen display of the AP20 will appear on the laptop screen, but will not function as a touch-screen. Use the laptop’s cursor and arrow keys to make selections.
Page 34: Assign Channels On Ap20
EQ (B-chain) alignment. 2.9.4 Assign Channels on AP20 After installing the AP20 into the rack and connecting the cabling for inputs and outputs, the next step is to assign channels. The AP20 allows for custom defined channel names for the input channels. The input channels are named through the Channel Names screen.
Page 35: H Earing I Mpaired O Utput
There are buttons for Shift (upper case / lower case shift), Clear (clears the name field), Space, Backspace, as well as Cancel and OK. The factory default channel configuration for the AP20 is 6 channels. Table 9: Default Channel Configuration...
Page 36: Erify Channel Assignments In Auditorium
2.9.6 Verify Channel Assignments in Auditorium On the AP20, select a channel and turn on Pink Noise. In the auditorium, verify that the Pink Noise output is coming from the correct loudspeaker(s). Do this for all channels. For details, see Audio Levels, page 81.
Page 37 AP20 Installation and Operating Guide Page 36 SUGGESTED MICROPHONE PLACEMENT MICROPHONE MULTIPLEXER MIC 3 MIC 4 MIC 2 MIC 1 MAKE ALL SPL READINGS AT THIS LOCATION. IF USING A SINGLE CALIBRATED MICROPHONE FOR ADJUSTING EQ, LOCATE THE MIC AT THIS LOCATION.
Page 38: Set Levels To Establish A Baseline
* Subwoofer should be set to 10 dB of in-band gain (see SMPTE RP-200), which equates to approximately 91 dBC (slow). If not possible to achieve the baseline, use the AP20 (Analog Output Levels) to make minor adjustments. AP20 Installation & Operating Guide...
Page 39: Perform The Eq
Dirac Live® to Tune the Auditorium , page The AP20 contains a full suite of 1/3 Octave EQ filters that are “traditional” cinema processor filters. If using AP20 1/3 Octave EQ, complete the following steps. Menu > Formats > Audio EQ Setup > Third Octave EQ Figure 17.
Page 40 AP20 Installation and Operating Guide Page 39 4. Examine the response on the RTA (whichever RTA the microphone is attached to). 5. Turn on XCurve Display. Try to tune the frequency pattern to the XCurve. If the pattern does not conform – there is a hole or a peak or other variance – then select the frequency that needs adjusting, and push it down or pull it up.
Page 41: Subwoofer Eq - Parametric Eq
2.11 Subwoofer EQ – Parametric EQ The AP20 features Parametric EQ on every channel. Parametric EQ is an optional adjustment and is in addition to 1/3 Octave EQ. It is only available with low frequencies and offers more control than 1/3 Octave EQ.
Page 42 AP20 Installation and Operating Guide Page 41 Figure 20. Parametric EQ Screen, Filter Enabled 2.12 Copy EQ Set to Another EQ Set This screen is used to copy the EQ settings for all channels to a new EQ set under a new name. After equalizing all the channels, copy these settings to create another EQ (with a new name).
Page 43: F Inal Adjustments
To do this, save the setup configuration on a memory stick (USB Flash drive), then use the saved setup to copy to the AP20 for the next screen, since many or all the values will be the same. Menu (System) > System Setup > USB Save/Restore > Save on USB > Master...
Page 44: How-To Procedures For Setup
AP20 Installation and Operating Guide Page 43 2.17 AP20 Playback Sound Check After installing and setting up the unit—or doing a maintenance check—it is a good idea to play content and stand in the theater while listening to the first few minutes of the movie.
Page 45: Example: Creating A Format
View AP20 System information See 4.2.6 System Info, page 60. Update AP20 software See 4.2.2 Updating Your AP20 Software, page 53. 3.1 Example: Creating a Format Prior to creating a format, it is necessary to identify the following: Input source...
Page 46: Setup Menus
Setup Menus On the next three pages, you will find a menu diagram for the AP20. This chapter contains a detailed of all the screens under the "Menu" selection of the home page. Refer to section 1.4 for all operations under the "Home"...
Page 47: Ap20 Installation And Operating Guide
“System” button will return you to the “System Setup” screen. Selecting “Home” from a sub-menu will return to the home screen. If “Menu” is then selected, the AP20 will return to the last selected sub-menu.
Page 48 AP20 Installation and Operating Guide Page 47 AP20 Menu Structure Home (Main) (Page 2) Current audio format Menu (System) Current Audio Format (select) Copy Format Copy Preset to Format Formats Edit Formats Rename Format Delete Format Assign Buttons Format Button Assignments...
Page 49 AP20 Installation and Operating Guide Page 48 AP20 Menu Structure Home (Main) (Page 3) Menu (System) Formats Format Options Channel Profile Nonsync Level and Routing Global Delay (mS) and Channel Profile Setup Nonsync Gain (set) Surround Offset (dB) L (dB)
Page 50 AP20 Installation and Operating Guide Page 49 AP20 Menu Structure Home (Main) (Page 4) Menu (System) Automation Network Network Mode Select (DHCP/Static) Current IP Address Other IP addresses Automation Events Connection Status (Up/Down) Delete Event Events Automation Events Add New Event...
Page 51 Selecting the button, after first powering up the AP20, will display the System Setup screen. This will provide access to the Setup menus. In the next section, we will discuss in detail the options available through the menu bar. Pressing the Home button will take you back to the Home or Main screen.
Page 52: Assign Fader Level To A Format
AP20 Installation and Operating Guide Page 51 Digital Out ClockRate – Select a clock rate from one of the following options: 48 kHz 96 kHz 192 kHz Output Mapping – Option to duplicate channels 1-8 on channels 9-16: Standard 16 Ch Out – Standard output channel assignments.
Page 53 AP20 Installation and Operating Guide Page 52 2. Next, select the desired format button, in this example we will use Dig_In. Note that the mode is Fmt (Format) and the fader level is set at 0.0 Figure 24. Setting Fader Level for a Format (1/3) 3.
Page 54 Fmt Fader setting. 4.2.2 Updating Your AP20 Software There are two ways you can update your software. The first way, is to connect to the servers at Datasat Digital Entertainment by selecting Update From Network and selecting the default update server. This requires that the AP20 be connected to the Internet.
Page 55 10 minutes to less than a few minutes to complete. When it has finished with the installation process you will be prompted to reboot the AP20 by cycling the rear panel power switch. If you already have the latest version of software, the system will display a message stating: “System does not require update”.
Page 56: Saving And Restoring Configuration Files
4.2.2.2 Update System Software from USB Device If the AP20 is not connected to the Internet, you may update the software through a USB Flash drive. 1. First, obtain the software update file from the Datasat Digital Entertainment web page at http://www.datasatdigital.com.
Page 57 Save Master Config Save AP20 configuration to USB device as MASTER configuration, which may be loaded onto other AP20 units. This will erase from the USB device any existing MASTER configuration. Save Diagnostic Info Save AP20 Diagnostic information to the USB device to facilitate troubleshooting.
Page 58: Access Control
The same Setup password also allows VNC connection to the AP20. The setup password needs to be entered only once after entering the setup menus. The AP20 must be turned off and back on again to reset the restriction to the setup menus.
Page 59 Figure 32. “Expert” Nav Mode 4.2.4.3 Identity There are three text fields that can be entered into the AP20 to be used for identification of the AP20. These are labeled “Screen”, “Theater”, and “Circuit”. The text entered in the “Screen” field will be displayed in the bottom left corner of the home screen above the navigation menu.
Page 60 The log file is helpful for debugging by DDE staff. You may be asked by the Datasat staff to save the log files on the USB Flash drive, to send for troubleshooting purposes.
Page 61: S Ystem M Onitor
AP20 Installation and Operating Guide Page 60 4.2.6 System Info From the system Setup screen, touch the System Info button. The System Info screen is shown below. Menu (System) > System Setup > System Info Figure 34. System Info Screen 4.2.7 Version, Serial Number, and MAC address...
Page 62: F Ormats
AP20 Installation and Operating Guide Page 61 4.3 Formats Menu (System) > Formats Figure 35. Audio Format Setup Screen 4.3.1 Current Audio Format Select the format you wish to modify from the drop-down list of installed formats. Touch the drop down list to open it, then use the adjustment knob to scroll the list in cases where there are several formats.
Page 63: S Tartup F Ormat
Page 62 4.3.2 Startup Format The Startup format is the default format selection when the AP20 is powered up. Select any defined format or Last Format. Touch the drop down list to open it, then select the format. Figure 37. Select Startup Audio Format 4.3.3 Edit Formats...
Page 64: A Ssign F Ormat B Uttons
AP20 Installation and Operating Guide Page 63 and enter a name for the new format. Press the Copy button to complete the process, or press Cancel to quit. Rename Format – Give an existing audio format a new name. Select an existing format from the drop-down list on the right side of the screen.
Page 65: Input Source
If HDMI is selected, touching the button again cycles the selection from HDMI-1 to HDMI-4. See Table 13 (below) for a description of where input channels will be routed within the AP20. Figure 41. Input Source Screen AP20 Installation & Operating Guide...
Page 66: F Ormat O Ptions
AP20 Installation and Operating Guide Page 65 Table 13. Input Source Mapping INPUT OUTPUT Analog 8 Channel Processor Channel 1 NonSync1 L/R Processor Channel 1 MIC Pre Processor Channel 3 (Mic power off) Optical (option, see Processor Channel 1 appendix F)
Page 67 AP20 Installation and Operating Guide Page 66 4.3.6.1 Global Delay and Surround Offset Menu (System) > Formats > Format Options > Global Delay and Surround Offset Global Delay: Audio can be delayed for a selected format, if necessary, to synchronize with a digital video projector.
Page 68 AP20 Installation and Operating Guide Page 67 None – No surround option, signals are not re-routed. Copy surround channels to rear surround channels – Allows the surround channels to be copied to the Rear Surround channels (Ch7 and Ch8) Matrix decode surround channels – The option to matrix decode the surround channels to the Rear Surround channels is available for 8-channel analog input and 8/16 channel digital inputs.
Page 69 AP20 Installation and Operating Guide Page 68 4.3.6.4 Mic Level and Routing This screen is available for Mic Pre input source only. Menu (System) > Formats > Format Options > Mic Level and Routing Figure 46. Mic Level & Routing Adjust the Mic gain by selecting the box under gain and turning the fader knob.
Page 70 AP20 Installation and Operating Guide Page 69 4.3.6.5 HDMI Options This screen is available for HDMI input sources only. Menu (System) > Formats > Format Options > HDMI Options Figure 47. HDMI Options Screen Select an input port for the HDMI signal and a speaker configuration. All ports will have the same speaker configuration.
Page 71 AP20 Installation and Operating Guide Page 70 4.3.7.1 Current Audio EQ This drop-down list allows you to select from the list of available EQ setups. The selection will become the current audio equalization setup. 4.3.7.2 Edit EQs Selecting the Edit EQs button from the Audio EQ Setup screen will open the screen below.
Page 72 4.3.7.3 Dirac Optimization The Dirac Live setup procedure must be used to copy Dirac configuration setup files to the AP20 before this screen becomes functional. Ignore this screen if you are not using Dirac Live software to setup the AP20.
Page 73 AP20 Installation and Operating Guide Page 72 Current format Current audio level and EQ and 0dB reference Figure 51. 1/3 Octave EQ Screen Channel Number Selection – Touch the Chan button to bring up a display of all sixteen channels. Select the channel you would like to equalize. You may also select the next channel by touching the “+”...
Page 74 If Mic Power is ON, it remains ON when you leave this screen and go to other screens. However, Mic Power is automatically disabled when the AP20 resets. This Mic Power setting is independent of the Mic power that is part of Format.
Page 75 AP20 Installation and Operating Guide Page 74 4.3.7.5 Parametric Equalization Parametric filters allow you to adjust not only the gain or cut, but also the center frequency, and how wide or narrow the filter is. This allows you to tune in on room modes that show up in a spectrum analysis.
Page 76 AP20 Installation and Operating Guide Page 75 Figure 55. Clear EQ on selected channel Clear EQ on all channels clears third octave, bass, treble and parametric filters on all channels. Figure 56. Clear EQ on all channels AP20 Installation & Operating Guide...
Page 77: C Hannel P Rofile
AP20 Installation and Operating Guide Page 76 4.3.8 Channel Profile Menu (System) > Formats > Channel Profile Figure 57. Channel Profile Setup Screen 4.3.8.1 Current Channel Profile The current channel profile is displayed in the drop-down box under the label “Current Channel Profile”.
Page 78 AP20 Installation and Operating Guide Page 77 4.3.8.2 Edit Profiles Menu (System) > Formats > Channel Profile > Edit Profiles Figure 58. Audio Profile Edit Copy Profile – Use an existing audio profile as a template for a new one. Select the audio profile you wish to copy from by selecting it from the drop down box.
Page 79: Signal Flow
Page 78 4.3.8.3 Channel Names Depending how the AP20 is connected, sixteen channels are available. Channel assignments can be different in other profiles. The top title bar displays the current format and profile. Note: In general, the default assignments must be preserved for the first 6 channels in order to maintain compatibility with the HDMI input channel assignments, and with the Hearing Impaired output channel.
Page 80 AP20 Installation and Operating Guide Page 79 1. From a user perspective, the channel mapping occurs near the last stage of the signal processing. Only high pass and low pass filters are applied after the signal routing occurs. This is illustrated in the diagram below.
Page 81 AP20 Installation and Operating Guide Page 80 Routing/Crossover setup screen Figure 61. Crossover Setup Screen The matrix on the left displays the input channel – to – output channel mapping. To make assignments, first dial in the output channel, then edit the input channel and other options.
Page 82: A Udio L Evels
AP20 Installation and Operating Guide Page 81 4.3.8.5 Channel Delays Menu (System) > Formats > Channel Profile > Channel Delays Figure 62. Channel Delays Delays can be set for each of the 16 channels. The delay is set in milliseconds (000-999ms).
Page 83 AP20 Installation and Operating Guide Page 82 Select channel(s) Figure 63. Audio Levels At the top right of the screen, the current Format and current Profile are displayed. Pink Noise – Select to turn pink noise on for a selected channel (1-16). Pink noise is cleared when exiting the screen.
Page 84: N Etwork
The volume level is in effect only if the enable/disable box is enabled (blue). Digital volume should be enabled only if the system is using the digital output on the AP20. Once Digital Volume is Enabled, the Digital Volume Offset, which may be set between 0.0 and 10.0, should be set to the fader level that is considered to be maximum.
Page 85: A Utomation
AP20 Installation and Operating Guide Page 84 4.5 Automation Menu (System) > Automation Figure 65. Automation Screen The Automation menus provide the ability to add, edit and delete automation events. Automation events may be single actions, or may be linked to a macro. Events may then be associated with an automation button.
Page 86 AP20 Installation and Operating Guide Page 85 4.5.1.1 Add New Event Selecting the Add New Event button takes you into the “Automation Edit Event” screen and automatically assigns a temporary event name, which is added to the event list. Menu (System) > Automation > Events > Add New Event Figure 67.
Page 87 AP20 Installation and Operating Guide Page 86 dropdown list. If Action is selected, touch the white box that appears below it. This will bring up the Automation Edit Action screen. Figure 69. Automation Edit Action screen o NOP (no operation) is a default that appears until an action is assigned.
Page 88 Figure 70. Automation Edit Event screen – Format Change Serial The AP20 can be configured to allow an external device to send an RS232 command to the AP20, which, when receiving the specified serial command, will then execute any predefined action or macro.
Page 89: M Acros
AP20 Installation and Operating Guide Page 88 Option 1: Select the text box and the keyboard screen will appear. Type in the serial command. Option 2: Select the Capture button to automatically capture a command received from the serial port. This assumes that there is an external serial control device connected that can be manually triggered to send a single command.
Page 90: A Utomation B Uttons
AP20 Installation and Operating Guide Page 89 4.5.2.1 Add Macro To add a Macro, select the “Add Macro” button. The keyboard screen will appear allowing a Macro name to be typed in. Choose a name that is meaningful. A name of up to 15 characters will be displayed.
Page 91 Touch OK when finished, or touch Cancel to cancel this task. 4.5.4 Automation Test Screen The Automation Test Screen provides an easy way to test that the automation signals to and from the AP20 are correctly wired and operational. Menu (System) > Automation > Test Figure 75. Automation Test AP20 Installation &...
Page 92 The input indicator turns green when there is a low signal applied to the pin. To verify that the AP20 is properly receiving an input from an external source you would need to make the external device send a low signal on that pin. Then confirm that the signal is received by the AP20 by checking if the corresponding circle turns green.
Page 93: Maintenance And Troubleshooting
See NoLock below Touchscreen Positioning The AP20 LCD display position has been configured at the factory. If, for some reason, you should need to recalibrate the location of the screen, follow the steps outlined below (these steps are much like...
Page 94: E Rror M Essages
Figure 78. USB Device Not Found If you encounter this error message, be sure you have inserted a USB device into the AP20. If a device is present, it may be malfunctioning. Replace the USB device with another to see if the problem is resolved.
Page 95: E Rror B Ooting The Ap20
************************************************************ insert USB memory stick with ap20 image ************************************************************ To solve this problem, reboot the AP20, making sure nothing is in contact with the touch screen during the boot-up process. AP20 Installation & Operating Guide Document # 9301H39200 Ver. 1.2...
Page 96 AP20 Installation and Operating Guide Version 1.2 Appendix A. Connector Pin-outs This appendix lists the pin-out of all of the connectors on the back panel of the AP20 Audio Processor. Figure 1. AP20 Rear Panel AUTOMATION GPIO – DB25F Description...
Page 97 AP20 Installation and Operating Guide Version 1.2 CONTROL (RS232)– DB9F Description Data out - TXD Data in - RXD Connected to pin 6 Chassis GND Connected to pin 4 Connected to pin 8 Connected to pin 7 N/C = No connection SERVICE PORT (RS232)–...
Page 98 AP20 Installation and Operating Guide Version 1.2 HDMI IN 1-4, OUT – HDMI Description HDMI TMDS Data 2 (+) TMDS Data 2 (Shield) TMDS Data 2 (-) TMDS Data 1 (+) TMDS Data 1 (Shield) TMDS Data 1 (-) TMDS Data 0 (+)
Page 99 AP20 Installation and Operating Guide Version 1.2 DIGITAL AUDIO IN (CH 1 – 8) – DB25F Description Standard Ch Assignment Chassis Ground AES 1/2 - AES 3/4 + C/LFE Chassis Ground AES 5/6 - LS/RS AES 7/8 + LC/RC Chassis Ground...
Page 100 AP20 Installation and Operating Guide Version 1.2 DIGITAL AUDIO OUT (CH 1 – 8) – DB25M Description Standard Ch Assignment Chassis Ground AES 1/2 - AES 3/4 + C/LFE Chassis Ground AES 5/6 - LS/RS AES 7/8 + LC/RC Chassis Ground...
Page 101 Ultra Stereo JSD-80 cinema processor. The pin-out also matches the Dolby DMA8. Datasat Digital Entertainment offers a DB25 male to female cable, 3-feet long, for hook-up (DDE P/N 2503004100). If wiring your own cable, the following criteria must be met: 1.
Page 102 AP20 Installation and Operating Guide Version 1.2 ANALOG AUDIO OUT (CH 9 – 16) DB25M Description ANALOG GND CHANNEL 9 (+) CHANNEL 15 (-) ANALOG GND CHANNEL 11 (+) CHANNEL 16 (-) ANALOG GND CHANNEL 10 (+) ANALOG GND CHANNEL 13 (-)
Page 103 AP20 Installation and Operating Guide Version 1.2 H338 Optical Film Card Option (Rear panel plug in board). PROJECTOR 1 INPUT (Optional)– DB9F Description LT (+) LT / RT (-) LT/ RT (-) RT (+) LT / RT (-) LT / RT Analog GND...
Page 104 AP20 Installation and Operating Guide Version 1.2 Appendix B: Interface Wiring Diagrams Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 105 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 106 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 107 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 108 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 109 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 110 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 111 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 112 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: Document #: 9301H39200 1.2...
Page 113 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: B-10 Document #: 9301H39200 1.2...
Page 114 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: B-11 Document #: 9301H39200 1.2...
Page 115 AP20 Installation and Operating Guide Version 1.2 Interface Wiring Diagrams Appendix B: B-12 Document #: 9301H39200 1.2...
Page 116 AP20 Installation and Operating Guide Version 1.2 Appendix C: AP20 Wiring and Block Diagrams thru 3 Appendix C: Block Diagrams Document #: 9301H39200 1.2...
Page 117 AP20 Installation and Operating Guide Version 1.2 Appendix D: AP20 Product Specifications Digital Audio Decoders Dolby Dolby AC3 DTS Master Audio (future software upgrade)/ DTS ES (future software upgrade)/ DTS 5.1 / Neo:6 Signal Inputs Digital Audio Inputs Channels: 16...
Page 118 AP20 Installation and Operating Guide Version 1.2 Signal Outputs Digital Audio Outputs Channels: 16 (fully routable as to input) Connector: Two DB25 (Male) connectors (1-8) and (9-16) Digital Format: AES/EBU Sample Rates: 48kHz, 96 kHz and 192kHz Analog Audio Outputs...
Page 119 AP20 Installation and Operating Guide Version 1.2 Audio Delays Individual Channel Delays 0 - 1000ms (ie: 0 to 1 second delay) Global Delay 0 – 250ms Note: Total delay per channel not to exceed 1000ms (ie: 1 second) 35mm Film Optical Soundtrack Audio Processing (with optional H338 PCB) Built-in processing for mono, A-Type and SR noise reduction.
Page 120 S/PDIF2 (TosLink) S/PDIF3 (Coax) Operation The AP20 monitors the selected input signal from one of the S/PDIF or HDMI ports to determine the type ® of audio signal received. If a Dolby Digital stream is detected, the AP20 decodes the audio and places it on the first 8 channels (see Table 1).
Page 121 AP20 Installation and Operating Guide Version 1.2 HDMI Setup Options Additional Dolby ® Digital options are available to set the speaker configuration and phantom center option. These options are accessed through the menu path Formats → Format Options → HDMI Options.
Page 122 This card offers two inputs (Projector 1 & 2), see Figure 1 below. Both inputs have an LED to indicate which input is active. The automation in the AP20 must be programmed to switch the inputs at the proper time. In addition to these inputs, there are two Lt/Rt test points.
Page 123 Turn off the AP20’s rear panel power switch and unplug the power cord. • Remove one of the three cover plates from the AP20 option slots. All slots are identical. • Slide the H338 card into the card guides of the option slot and gently push the card into its mating connector.
Page 124 F3. AP20 Optical Format and Analog Input Setup Before the H338 card can be used, Optical formats must be created in the AP20 and the optical format must have the analog input source selected as Optical. The H338 card supports standard optical film soundtrack formats: Mono, A- type and SR-type.
Page 125 AP20 Installation and Operating Guide Version 1.2 To assign a format button, go to: Menu (System) → Formats → Assign Buttons Figure 5 – Format Button Assignment Select a Format to assign from the Assign drop down menu. Select a button to assign the format to from the drop down menu.
Page 126 Inputs from the film are on the left. The resulting channels are on the right side, and are internal to the AP20. Note that these are not necessarily the output channels as they and may be routed on the AP20 output (see Section 2.9.4 Assign Channels on AP20 in this manual).
Page 127 AP20 Installation and Operating Guide Version 1.2 Typical Setups for optical formats are shown below. While other combinations are possible they are not representative of what should be used with standard film formats. When Mono is selected: In this example, left total (LT) and right total (RT) are the inputs.
Page 128 AP20 Installation and Operating Guide Version 1.2 When SR is selected: In this example, left total (LT) and right total (RT) are the inputs. Outputs are: 1L = channel 1 is left, 2R = channel 2 is right, 3C = channel 3 is center, 5Ls = channel 5 is left surround, and 6Rs = channel 6 is right surround.
Page 129 F4.3. Wiring and Connections Projector 1 & 2 inputs on the AP20 are 9-pin female D-connectors. See Figure 8 below for pin assignments. Input from the solar cell is a 9-pin Male D-connector. PIN NO. DESCRIPTION...
Page 130 The right channel is nearest the edge of the film. To confirm proper wiring, while observing the projector output on a RTA or the AP20 setup screen, place a business card or similar object to block the side of the cell nearest the edge of the film.
Page 131 Allen/Hex Wrenches, small screw driver etc. On the AP20 select one of the optical formats in the home screen, next select Menu (System) → Formats → Format Options → Film Options → Film Setup. You should now be in the Film Card Setup screen as...
Page 132 To manually adjust levels, select the button below the left input level bar and use the AP20 front panel adjustment knob to increase or decrease this level until it meets the reference line. Note: When using a laptop to VNC into the AP20, use the up and down arrows to mimic the action of the AP20 adjustment knob.
Page 133 Figure 14 – Crosstalk using Cat 97 test film Note: while running the CAT 97 test film you can also select Azimuth in the AP20’s optical set up screen. If alignment is correct you should be able to observe a cross on the screen as shown in Figure 15. The same applies to viewing on the oscilloscope in X/Y mode.
Page 134 Correct Figure 16 – Azimuth This can also be viewed on the AP20 screen by going to Menu (System) → Formats → Format Options → Film Options → Film Setup and Selecting Azimuth (see Figure 15). When Azimuth is selected, on the right a pictorial of the azimuth adjustment is shown.
Page 135 AP20 Installation and Operating Guide Version 1.2 Figure 17 – Focus After the flattest response is achieved by adjusting the projector optics, the final slit loss correction is made using the Parametric Filter Settings, see Figure 18. F4.4.5. Slit Loss EQ When Slit Loss EQ is selected a graph of the slit loss adjustment is shown on the right of the screen (see Figure 18 below).
Page 136 Next turn on the subwoofer channel, then select the Optical Bass Gain by pressing the <Gain> button. Use the AP20 fader knob, or up and down keys when using a laptop, to adjust the Optical Bass Gain to match the Center channel level previously noted on the RTA display. The Optical Bass Gain range is 0 to +10dBc.
Page 137 Digital Soundtrack Input is used to allow a smooth cross-fade from the optical playback to another analog or digital input source (that is connected to the AP20 rear panel). If digital soundtrack for film is not used then keep the selection at None (factory default).
Page 138 F4.4.8. Optical Surrounds Delay Settings To set surround delays, for the optical formats, a “Profile” must be created in the AP20 and assigned to the optical formats. Go to Menu (System) → Formats → Channel Profile → Edit Profiles Figure 22 – Audio Profile Edit Select Copy Profile and choose a profile to copy from the drop down menu (in Figure 22, “Profile 2”...
Page 139 Projector input is being used, and check that LED light is on next to input, if not select an optical format on the home screen. The AP20 mutes when switching from optical card to digital or analog input source This may occur if the digital soundtrack input is not set correctly. Go to the Film Card Setup screen and select Digital Soundtrack Input, in this menu choose the input source in use, analog or digital.
Page 140 MD10H33000) with the exception of Digital Audio channels 9-16 in and out, and Analog Audio channels 9-16 out. The 8 channel AP20 may be upgraded to 16 channels by adding the H332 circuit card (P/N 9030H33200). See page AP20 8-Channel Screens The following screens differ from the standard 16-channel version.
Page 141 AP20 Installation and Operating Guide Version 1.2 Figure 3 – Channel Names Screen Menu (System) → Formats → Channel Profile → Channel Names Channel Delay Screen Channel selection is limited to 8 channels. Figure 4 – Channel Delays Screen Menu (System) → Formats → Channel Profile → Channel Delays Channel selection is limited to 8 channels.
Page 142 AP20 Installation and Operating Guide Version 1.2 Format Source Selection Screen Figure 5 – Input Select Screen Menu (System) → Formats → Input Source Only the Digital Ch 1-8 selection is available. Pressing the Digital button will not toggle to other choices. The factory default Digital Cinema format is 8 channel.
Page 143 AP20 Installation and Operating Guide Version 1.2 Octave EQ Screen Figure 7 – Third Octave EQ Menu (System) → Formats → Audio EQ Setup → Third Octave EQ Channel selection is limited to 8 channels. Parametric EQ Screen Figure 8 – Parametric EQ Menu (System) →...
Page 144 AP20 Installation and Operating Guide Version 1.2 16-Channel Upgrade (H332 Card) The 8 channel AP20 may be upgraded to 16 channels by adding the H332 circuit card. Order P/N 9030H33200 latest version. H332 Card Installation Tools required: Phillips head #2 screw driver Caution: The H332 card contains parts that are static sensitive.

Datasat AP20 Installation And Operating Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datasat AP20

Summary of Contents for Datasat AP20

Table of Contents
