rd
3 Octave EQ Screen
Menu (System) → Formats → Audio EQ Setup → Third Octave EQ
Channel selection is limited to 8 channels.
Parametric EQ Screen
Menu (System) → Formats → Audio EQ Setup → Parametric Equalization
Channel selection is limited to 8 channels.
Notes:
1. The Output Mapping on the System setup screen (Menu (System) → Output Mapping) will have no affect on the
8 channel version. This option will be removed in the next software version (V2.1.01 or above).
2. The monitor mix screen (Home → Monitor → Mix) on the 8 channel version shows 16 channels. Channels 9-16
should be left at 0 in order to disable. The next software version (V2.1.01 or above) will only display channels 1-8.
Appendix G. 8-Channel AP20
AP20 Installation and Operating Guide

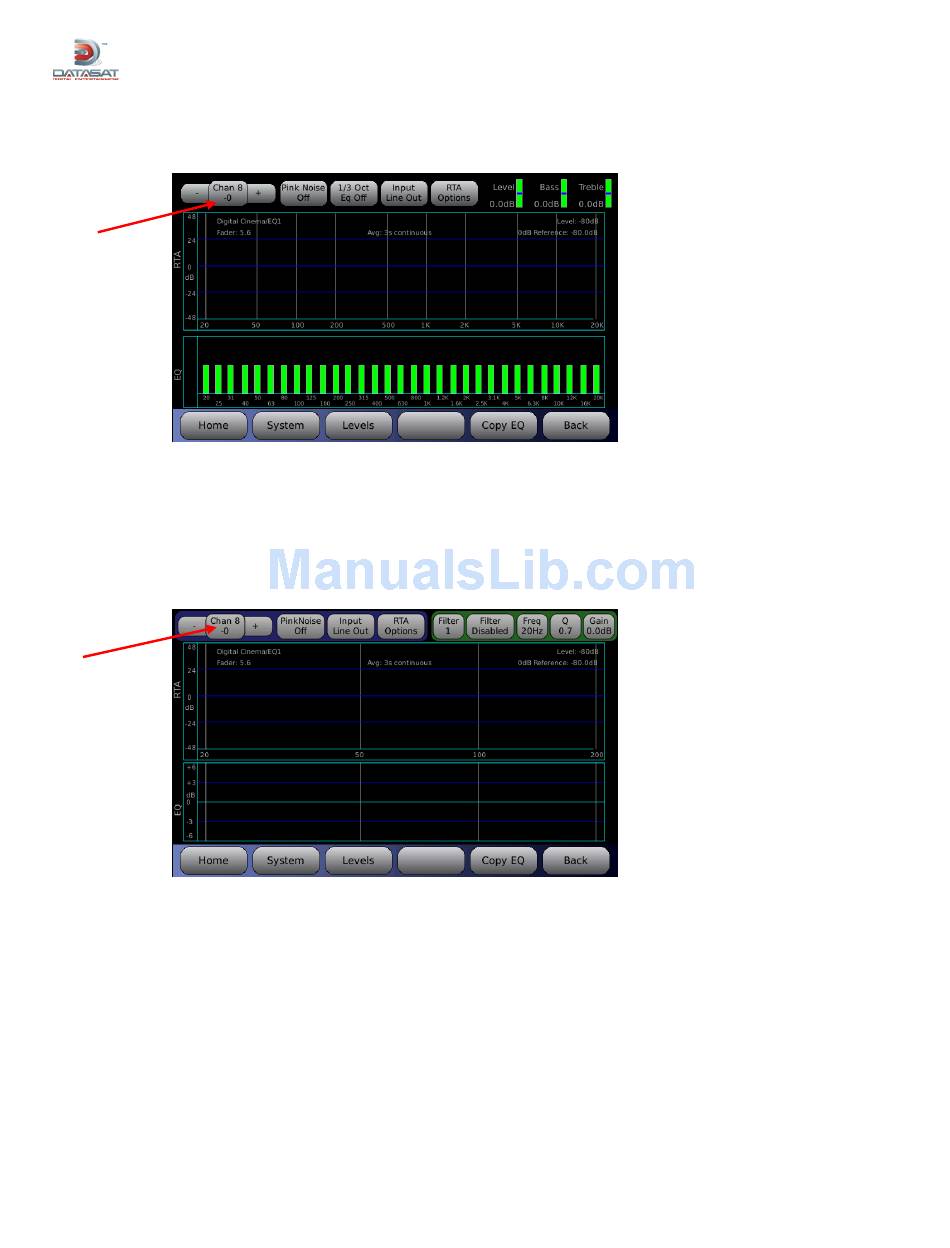

Figure 7 – Third Octave EQ
Figure 8 – Parametric EQ
G-4
Version 1.2
Document #: 9301H39200 1.2
