dropdown list. If Action is selected, touch the white box that appears below it. This will
bring up the Automation Edit Action screen.

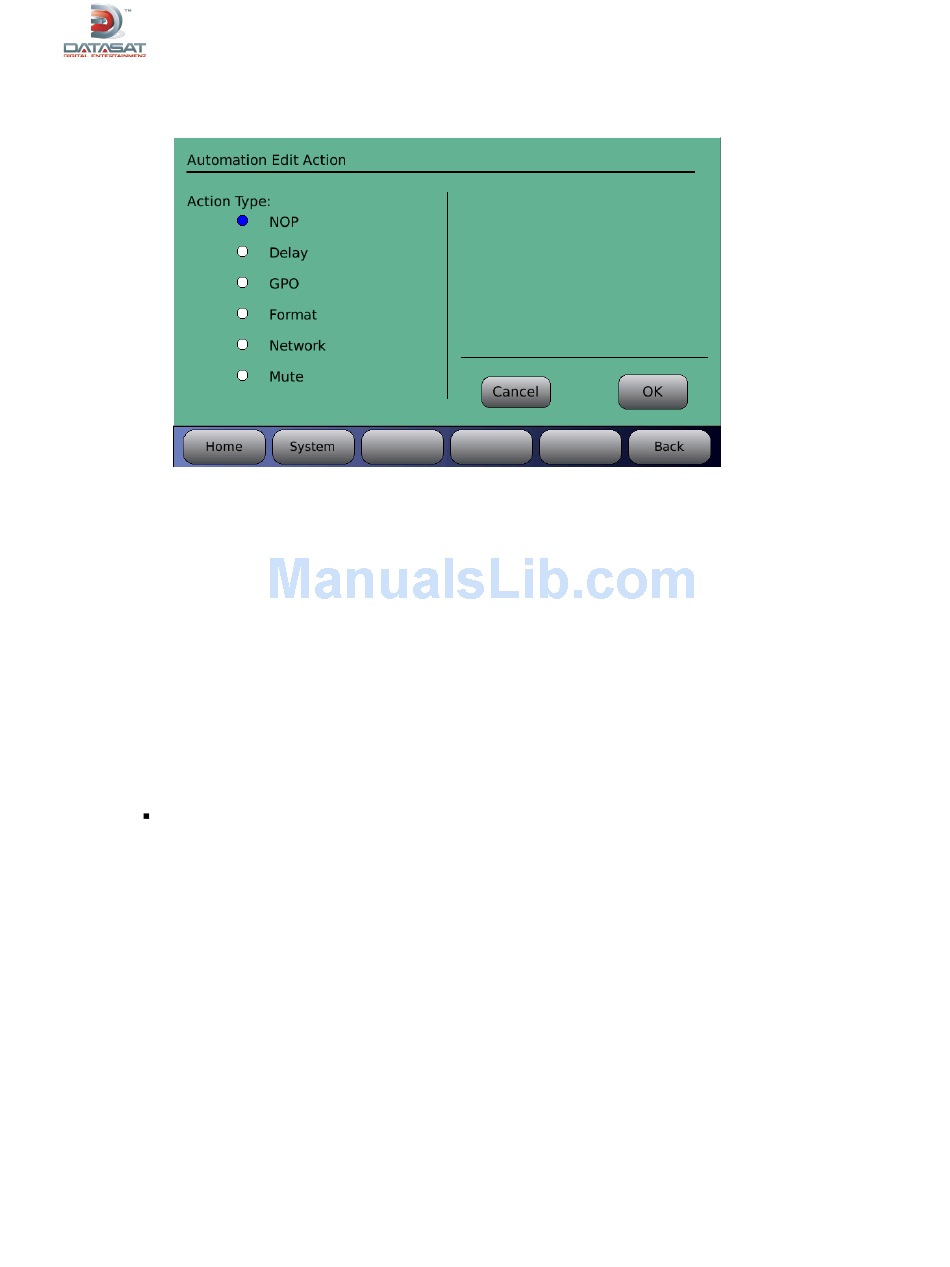

Figure 69. Automation Edit Action screen
o NOP (no operation) is a default that appears until an action is assigned.
o Delay – Delay is set in milliseconds with a range of 0-10000ms (10 seconds)
o GPO – Select a GPO to set (GPO 1-20 or Projector) by touching the dropdown menu
next to "Set". Then select an action for that GPO from the dropdown menu next to
"To". Selections are Pulse, Low, and High.
o Format – Select from the "Change Format To:" drop down menu.
o Network – Type in the IP Address, TCP Port and Data information by touching the
associated box to bring up the keyboard screen.
o Mute – Select between on and off.
Touch OK when finished, or touch Cancel to cancel this task.
Format Change – Configure an event when a format is changed.
When Format Change is selected, an action or macro is run when the format changes to
one selected from the dropdown list. Select an Action or a Macro to run. If Macro is
selected, choose a macro from the dropdown list. If Action is selected, touch the
white box that appears below it. This will bring up the Automation Edit Action
screen (for a description of options available, see Figure 69, and text following it,
above). In figure Figure 70 below, when the format changes to "Digital Cinema" the
Digital_Cinema macro is run.
Touch OK when finished, or touch Cancel to cancel this task.
