F2.2. H338 Card Installation
Tools required: Phillips head #2 screw driver
Caution: The H338 card contains parts that are static sensitive. Use caution when handling to avoid damage.
Keep the card in the anti-static bag until needed. Just before removing the card from the bag, hold the bag and
touch the chassis of the player. This will make your body the same electrical potential as the player (and will
prevent static discharge). It is a good idea to stand on a linoleum or cement floor (not carpet) when handling the
card.
Power switch
•
Turn off the AP20's rear panel power switch and unplug the power cord.
•
Remove one of the three cover plates from the AP20 option slots. All slots are identical.
•
Slide the H338 card into the card guides of the option slot and gently push the card into its mating
connector. Tighten the attached thumbscrews.
Appendix F. H338 Optical Film Card Option
AP20 Installation and Operating Guide

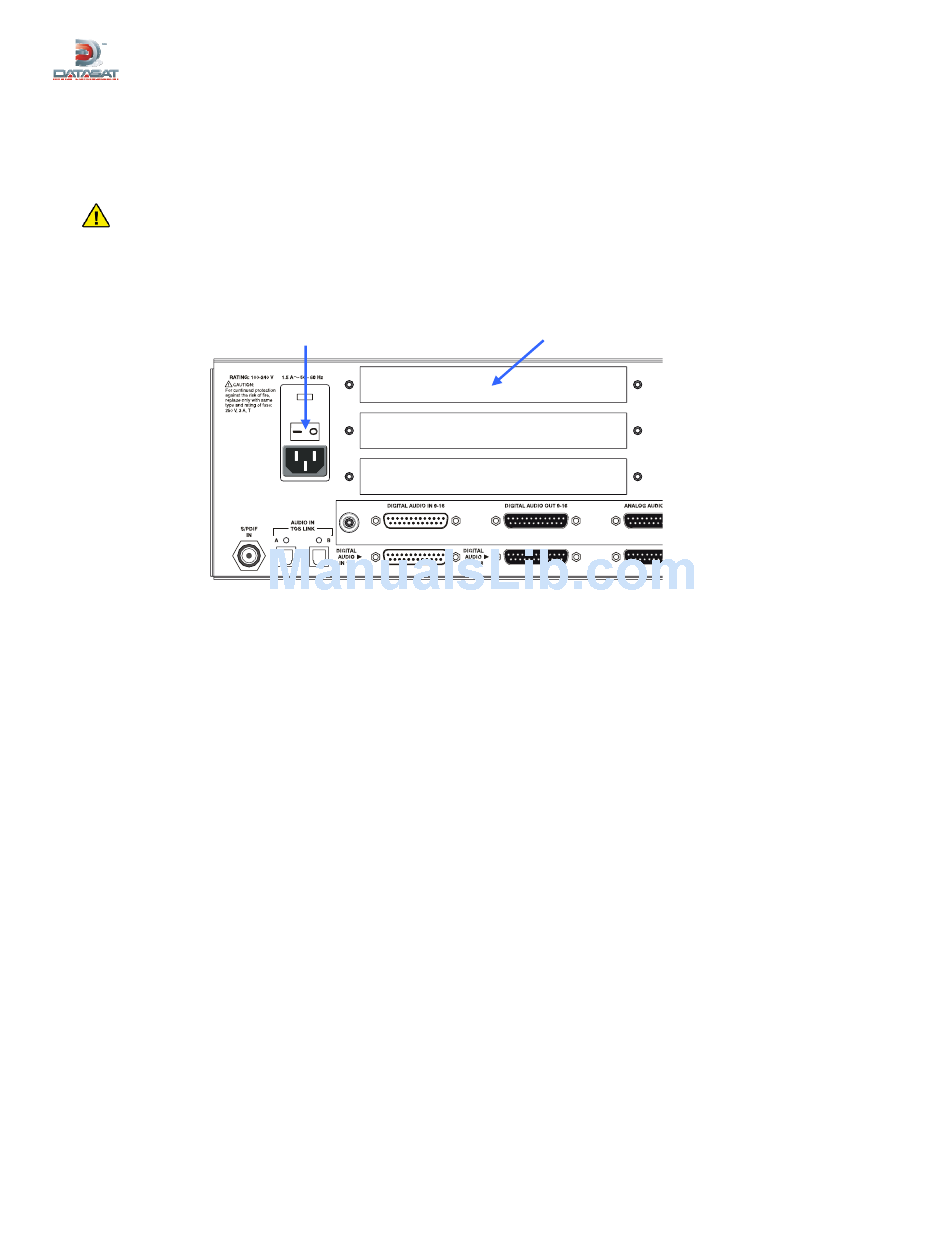

Figure 2 – AP20 Rear Panel
