Menu (System) > Formats
In the Audio Format Setup screen, five options appear along the bottom: Input Source, Format Options,
Audio EQ Setup, Channel Profile, and Audio Levels.

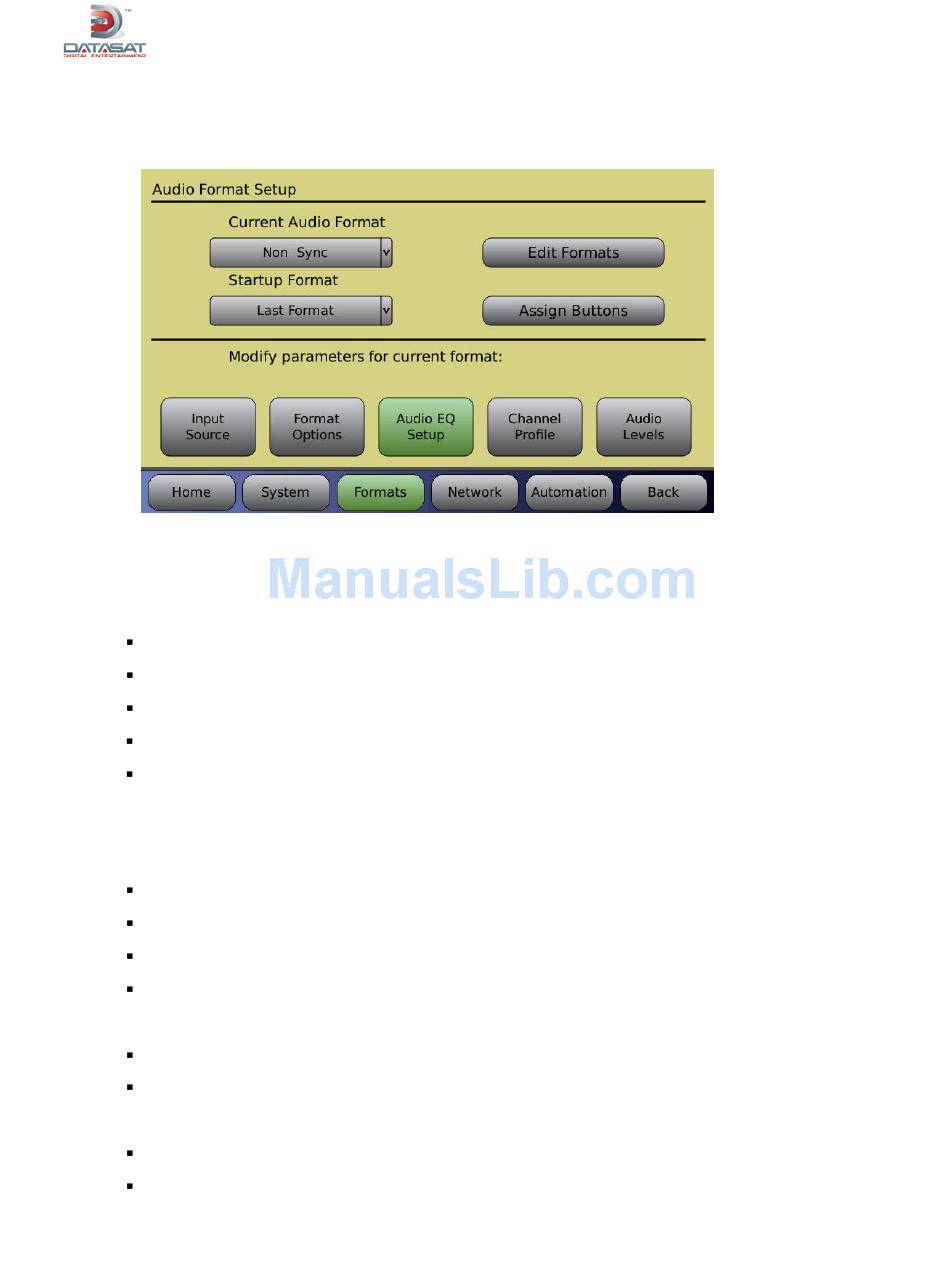

Figure 13. Audio Format Setup Screen
2.7.1 Creating an Audio Format
This is an overall summary of the procedure for creating an audio format.
Under Audio Format Setup screen: assign the format to a button.
Input Source screen: select the audio input.
Format Options screen: set global delay and other options, depending on format.
Channel Profile screen: set channel names, audio levels, and crossover settings.
EQ Setup screen: set up Third Octave EQ, Dirac, or Parametric EQ.
The following is an example of a format configuration.
Audio Format:
Home screen button name: Digital Cinema
Audio format name: Digital Cinema
Input source: Digital Ch: 1 – 16
Options: Global Delay, setting 000ms, Extended Surrounds, setting Ls, Rs
Audio Profile:
Channel Names: Ch1 L, Ch2 R, Ch3 C, Ch4 LFE, Ch5 Ls, Ch 6 Rs
Crossover: Ch1 – Ch 6 settings done during setup – calibration, if needed
Audio EQ:
Dirac: Enabled or disabled depending on setup and calibration
Audio Levels: Ch1 – Ch6 settings done during setup – calibration, if needed
