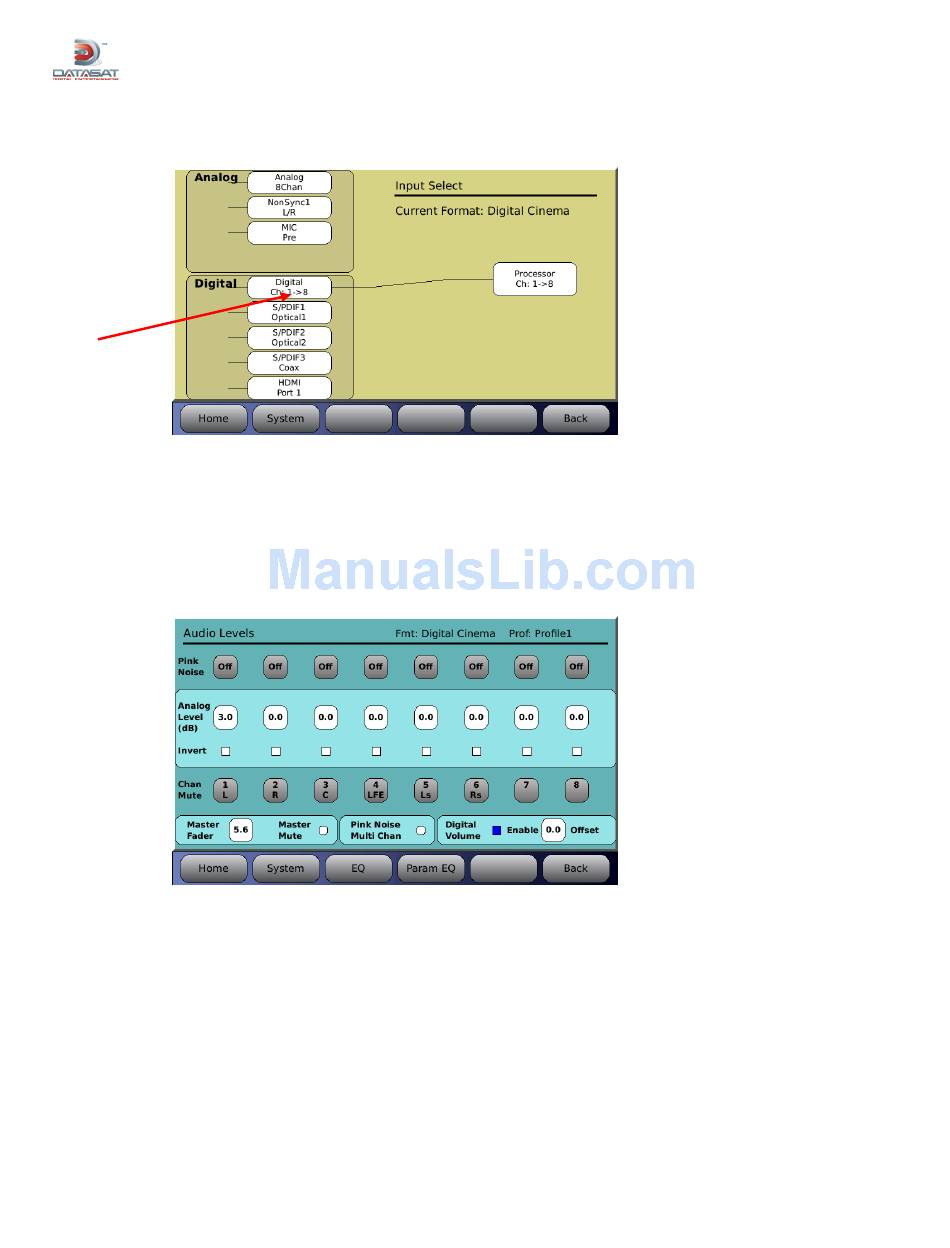

Format Source Selection Screen
Menu (System) → Formats → Input Source
Only the Digital Ch 1-8 selection is available. Pressing the Digital button will not toggle to other choices. The factory
default Digital Cinema format is 8 channel.
Audio Levels Screen
Menu (System) → Formats → Audio EQ Setup → Audio Levels
All selections in the Audio Levels Screen are limited to 8 channels.
Appendix G. 8-Channel AP20
AP20 Installation and Operating Guide
Figure 5 – Input Select Screen
Figure 6 – Audio Levels Screen
G-3
