4.3.8 Channel Profile
Menu (System) > Formats > Channel Profile

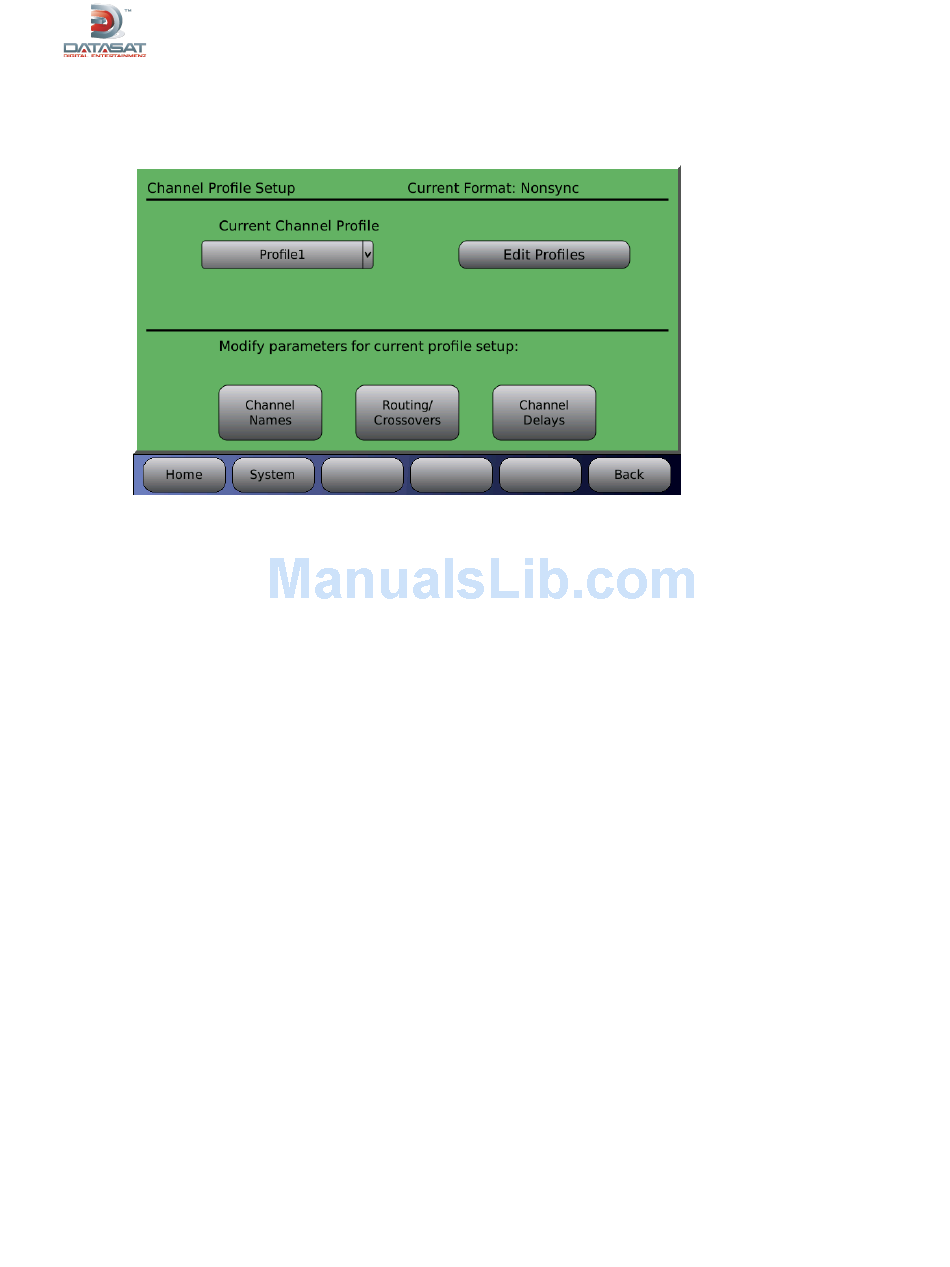

Figure 57. Channel Profile Setup Screen
4.3.8.1 Current Channel Profile
The current channel profile is displayed in the drop-down box under the label "Current
Channel Profile". Before making changes to the profile, always verify that you are in the
desired format (check the upper right corner of the Channel Profiles screen).
To select a different profile, touch the down arrow and select a profile from the list. Any
changes made to the Channel Names, Routing/Crossovers and Channel Delays will be for
this profile only.
AP20 Installation & Operating Guide
AP20 Installation and Operating Guide
Document # 9301H39200 Ver. 1.2
Page 76
