To assign a format button, go to:
Menu (System) → Formats → Assign Buttons
Select a Format to assign from the Assign drop down menu. Select a button to assign the format to from the
drop down menu. Press the Assign button. In Figure 5 above, SR has been assigned to Button 3. The current
format assignments will be listed next to the button numbers. The newly selected format should now appear
on the list.
F3.3. Input Source Selection
Each of the optical formats must be set to have Optical selected as their input source. In the example in Figure 6
below, SR will have its input source set to Optical. Select the Input Source button. This will open the Input
Select screen. The right side of the screen should display "Current Format: SR". If it is not displayed, return to
the Audio Format Setup screen and select SR in the Current Audio Format drop down menu. Return to the Input
Select screen by pressing the Input Source button. Select Optical as the Analog Input Source. A line should
appear from the selected source to the output
Menu (System) → Formats → Input Source
Appendix F. H338 Optical Film Card Option
AP20 Installation and Operating Guide

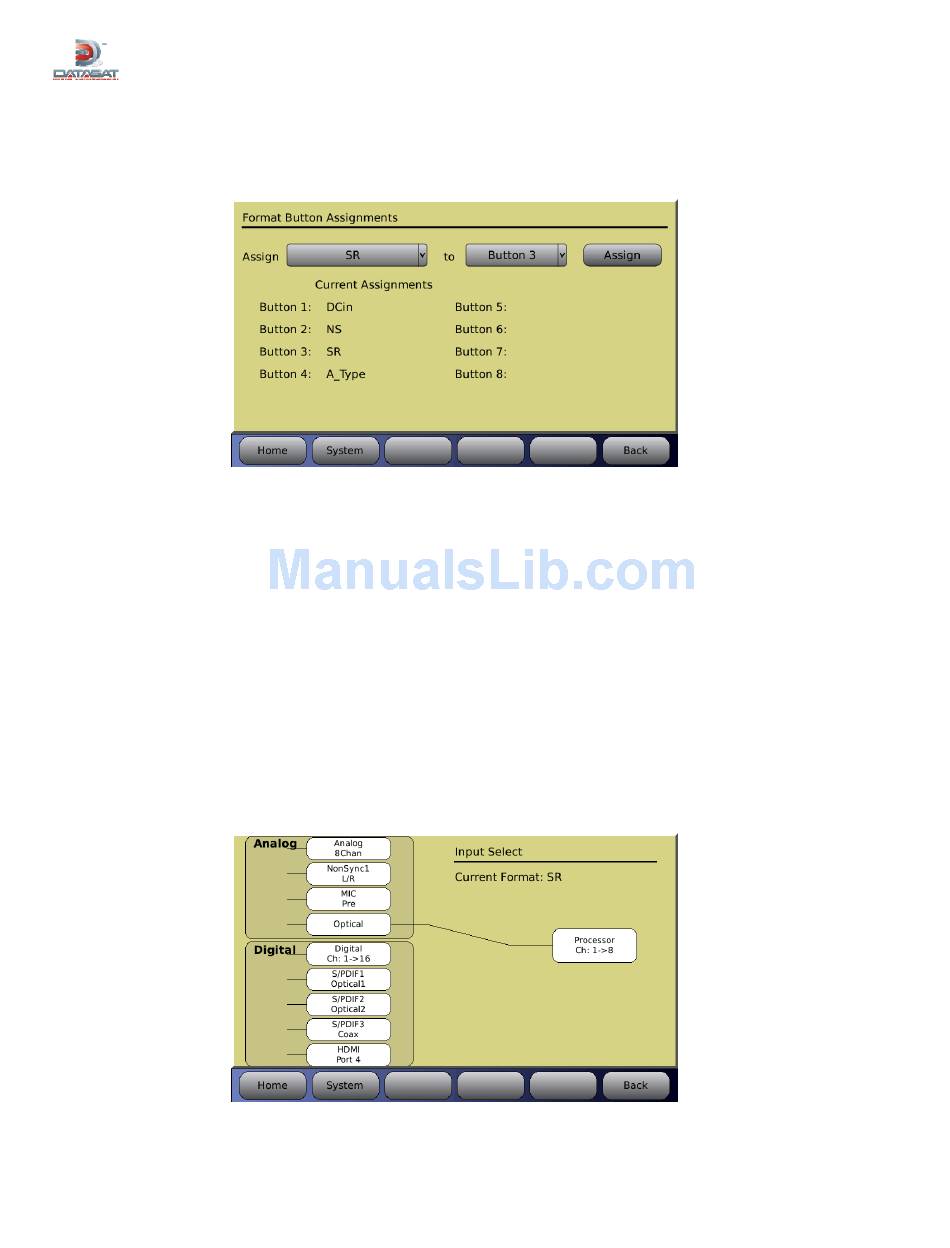

Figure 5 – Format Button Assignment
Figure 6 – Select Input Source
