16. REAR BRAKE & REAR WHEEL & REAR CUSHION

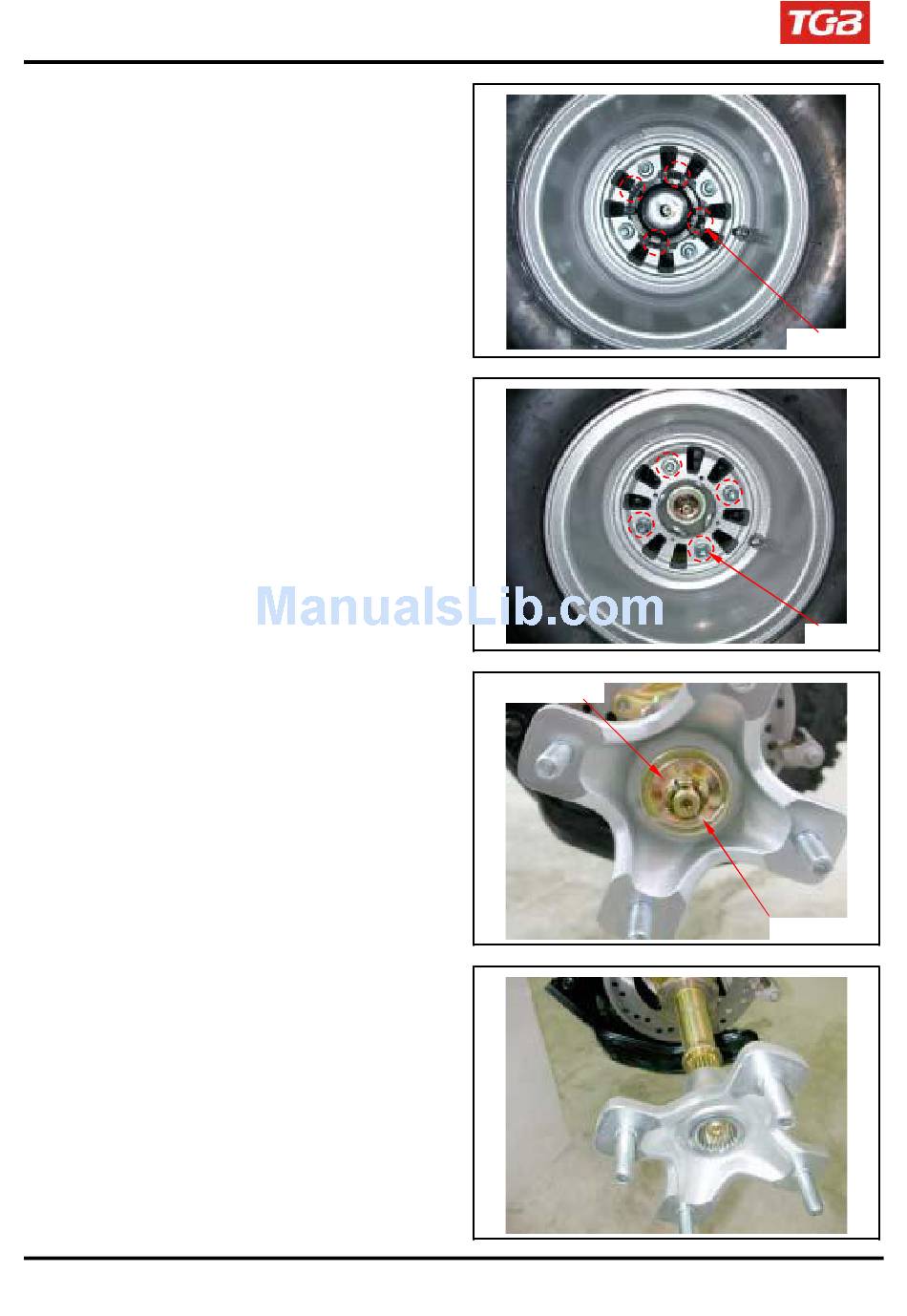

Rear Wheel

Removal
Raise the rear wheels off the ground by placing a
jack or other support under the frame.
Remove rear axle cover (4 screws).
4 screws
Remove the rear wheel nuts, and then remove
rear wheels.
Installation
Install the rear wheel and tighten the nuts.
Torque: 2.4kgf-m
4 nuts
Rear Wheel Axle Connecter
Wheel hub nut
Removal
Remove cotter pin, rear wheel axle connecter nut
and washer.
Cotter pin
Remove right and left rear wheel axle connecter.
Installation
Install the rear wheel shaft connecter.
Install wheel shaft connecter washer and tighten
the wheel shaft connecter nut.
Torque: 2.4kgf-m
Install cotter pin.
16-4
