16. REAR BRAKE & REAR WHEEL & REAR CUSHION

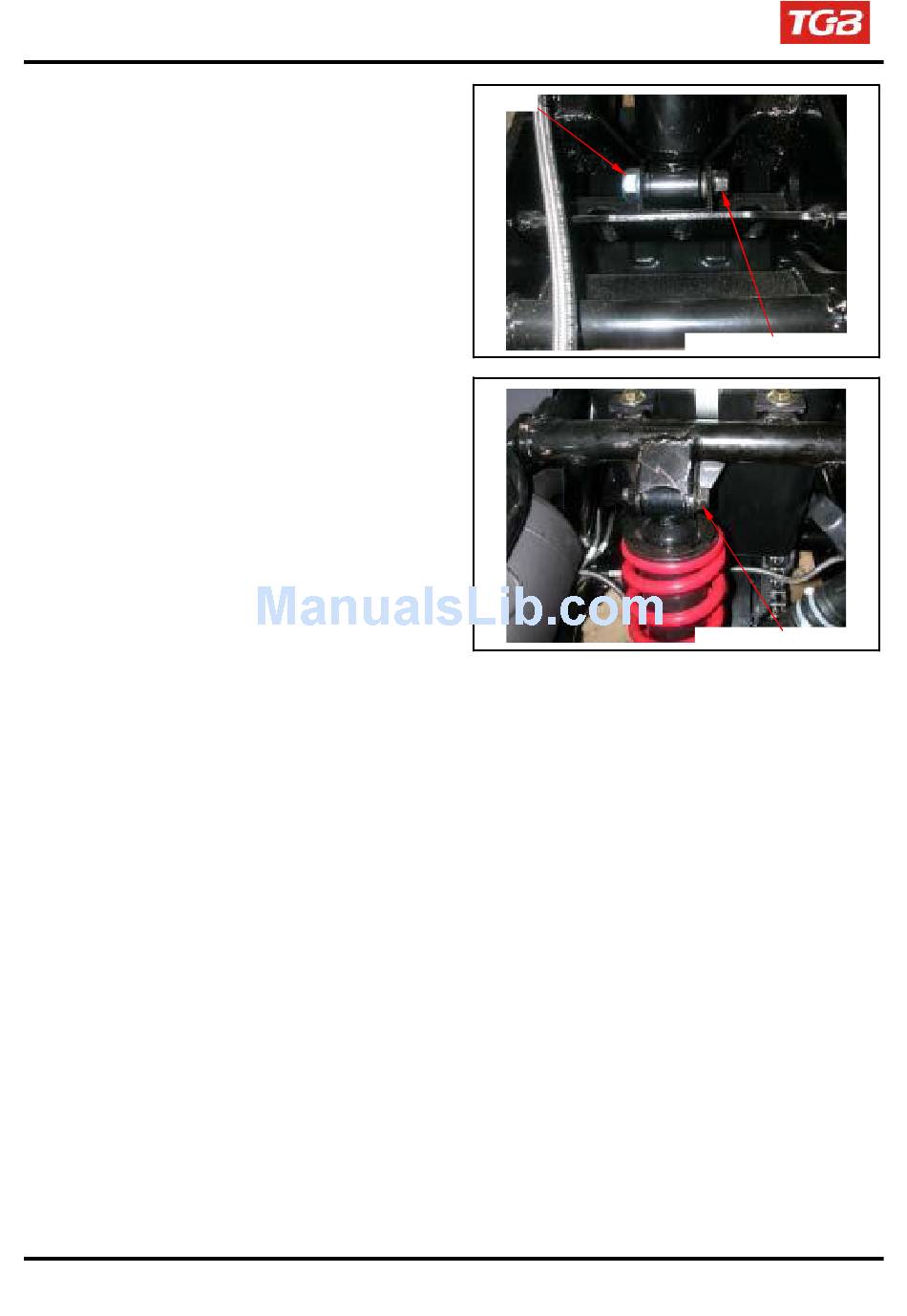

Rear Cushion
Nut
Removal
Support the frame.
Loosen rear cushion under bolt nut, and remove
rear cushion under bolt.
Rear cushion under bolt
Remove rear cushion upper bolt, and then remove
rear cushion.
Installation
Install rear cushion, and install rear cushion upper
bolt.
Install rear cushion under bolt, and install nut.
Tighten the rear cushion upper bolt and under nut
to the specified torque value.
Torque: 4.6kgf-m
Rear cushion upper bolt
16-18
