4 Cable/DSL Status LED
Green (100 Mbps link) / Yellow (10 Mbps link)
Indicates a number of different conditions, as described below.
On
The link between the Router and the cable or DSL modem
is OK.
Flashing
The link is OK and data is being transmitted or
received.
Off
Indicates one of the following
nothing is connected
the modem is switched off
there is a problem with the connection.
page 75.

Rear Panel

5 Power Adapter socket
"Troubleshooting" on
6 Ethernet Cable/DSL port
7 Four 10/100 LAN ports
13
The rear panel (Figure 4) of the Router contains four LAN ports,
one Ethernet Cable/DSL port, and a power adapter socket.

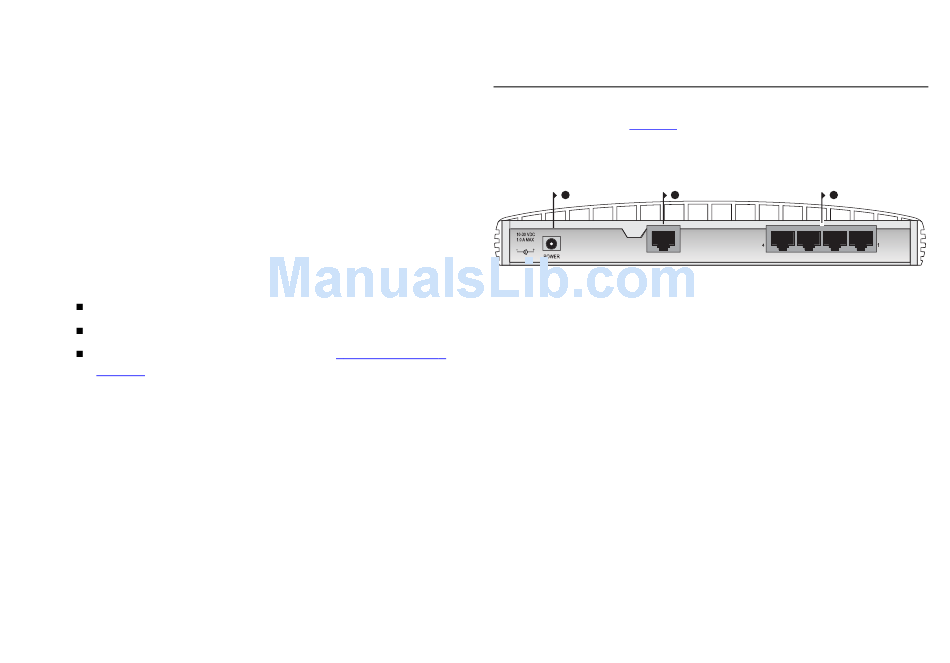

Figure 4 Secure Router - Rear Panel
5 6
Ethernet
Cable/
DSL
Only use the power adapter that is supplied with this Router. Do
not use any other adapter.
Use the supplied patch cable to connect the Router to the
10/100 port on your cable or DSL modem. This port will
automatically adjust for the correct speed, duplex and cable type.
You can connect your Cable/DSL modem using either
straight-through or crossover cables.
Use suitable cable with RJ-45 connectors. You can connect your
Router to a computer, or to any other piece of equipment that
has an Ethernet connection (for example, a hub or a switch). All
ports will automatically adjust for the correct speed, duplex and
cable type. You can connect your Ethernet devices using either
straight-through or crossover cables.
7
LAN
