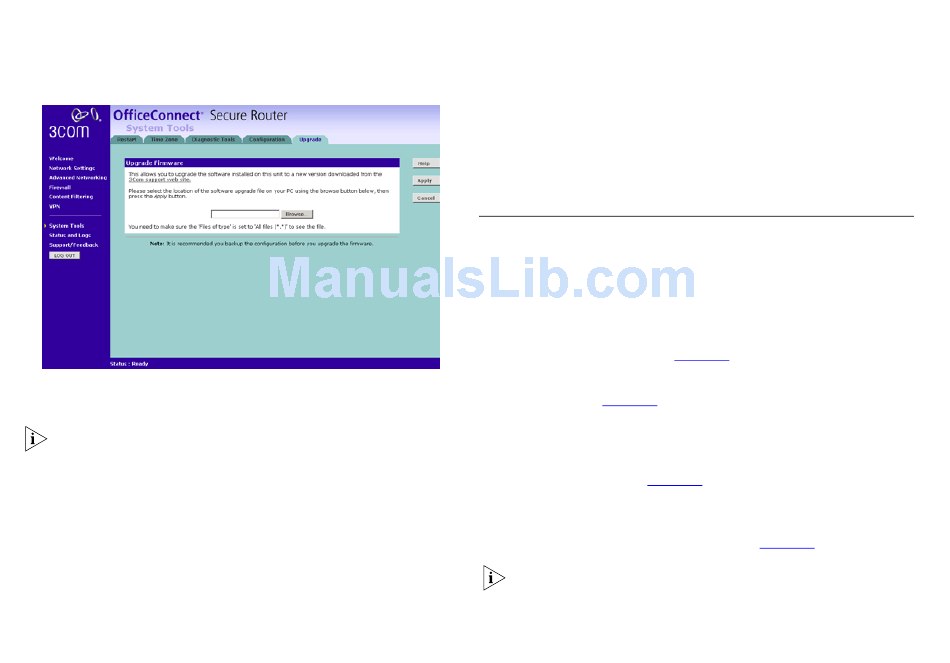

Figure 71 Upgrade Screen
Once you have downloaded the software, use the Browse button
to locate the file on your computer, and then click on Apply.
You may need to change the file type in the dialog box displayed
by your web browser to *.* to be able to see the file.
The file will be copied to the Router, and once this has
completed, the Router will restart. Although the upgrade process
has been designed to preserve your configuration settings, 3Com
recommends that you make a backup of the configuration
beforehand, in case the upgrade process fails for any reason (for
example, the connection between the computer and the Router
is lost while the new software is being copied to the Router).
The upgrade procedure can take a few minutes, and is complete
when the Alert LED has stopped flashing and is permanently off.
Make sure that you do not interrupt power to the Router during
the upgrade procedure; if you do, the software may be corrupted
and the Router may not start up properly afterwards. If the Alert
LED comes on continuously or flashing slowly after a failed
upgrade, refer to "Troubleshooting" on page 75.

Viewing Status and Logs

Selecting Status and Logs from the Main menu displays the
Status and Logs screens in your Web browser. The Status and
Logs screen displays a tabular representation of your network
and Internet connection.
Status — to display the current unit status, including a summary
of the configuration. See
Routing Table — to display the configured static and dynamic
routings. See Figure
Usage Monitor — to display the amount of data transmitted to
and received from the Internet. This information is provided for
guidance only, and may differ from that used by your ISP for
billing purposes. See
Log Settings — to choose whether to store the log on the Router
or to send to the remote user or both and to choose to to
enable or disable some log entries. See
If you choose the option to store the log on the Router the log
file will be overwritten when it is full. If you choose the option to
send logs to a remote server then you will need to specify the IP
address of the remote server. The IP address must be within the
70
Figure 72.
73.
Figure 74.
Figure 75.
