Dynamic Routing

The Router provides support for RIPv1, RIPv2 or both for each
interface, for sending and receiving data, LAN routes are sent on
the LAN subnet, and WAN routes are sent on the WAN subnet.
From the Dynamic Routing screen you can enable the Router to
automatically adjust to physical changes in the networks layout.
Using the RIP protocols, the Router determines the network
packets' route based on the fewest number of hops between the
source and the destination. The RIP protocol regularly broadcasts
routing information to other devices on the network.
Setting up Dynamic Routing
To set up Dynamic Routing:
Select a Service from the pull-down list.
1
Click Apply to save your changes.
2
The list of all routes (static and dynamic) are listed in the Status
and Logs section.

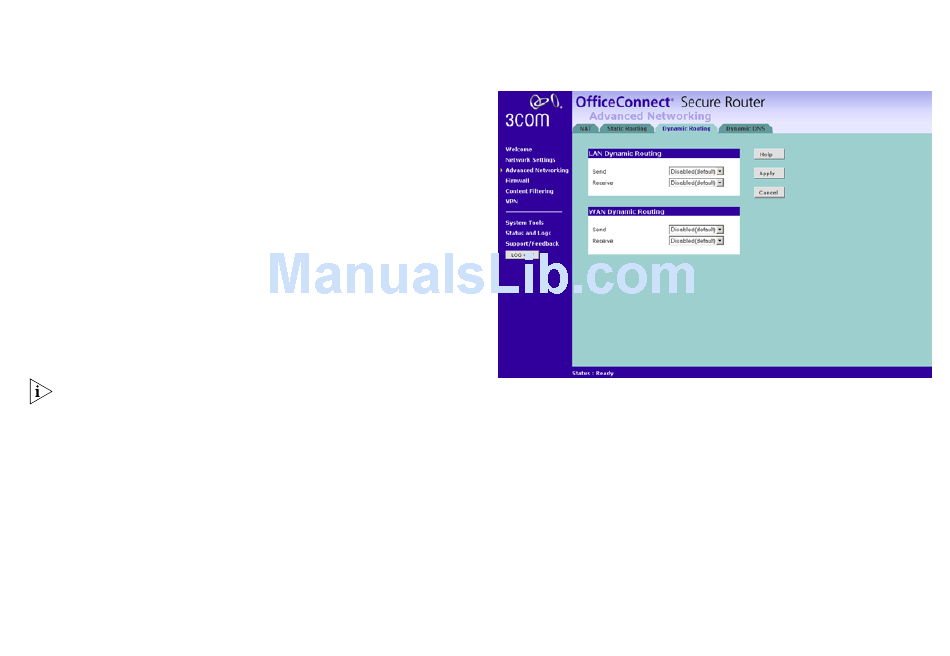

Figure 42 Dynamic Routing Screen
47
