3Com OfficeConnect 3CR860-95 Installation Manual

Installation Guide
OfficeConnect ®
Secure Router
(3CR860-95)
3Com Corporation, 350 Campus Drive, Marlborough, MA 01752-3064
Copyright © 2003 3Com Corporation. All rights reserved. 3Com and OfficeConnect are registered
trademarks of 3Com Corporation. The 3Com logo is a registered trademark of 3Com Corporation.
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
All other company and product names may be trademarks of their respective companies.
Part number: DIA08609-5AAA01 Published: September 2003
INTRODUCTION
About This Guide:
This Guide takes you through the basic steps necessary to install and configure
your OfficeConnect Secure Router, and establish a connection from your
computers to the Internet. Throughout, the OfficeConnect Secure Router is
simply referred to as the Router.
Your package contains:
● One OfficeConnect Secure Router
● One power adapter for use with the Router
● Four rubber feet
One Ethernet cable
●
● One CD-ROM containing the Router Discovery program and the User Guide
This Installation Guide
●
● One Support and Safety Information Sheet
One Warranty Flyer
●
● Stacking Clip
License agreement
●
System Requirements
Before starting, you must ensure the following:
You already have a cable or DSL broadband connection to the Internet,
●
with a suitable modem, and that this connection works properly. The
modem must have an Ethernet port for connection to your Router.
You have a computer that has an Ethernet connection available and is
●
already correctly configured for communication with the Internet. Your
computer must be able to connect to the Internet via the modem, and
must have a Web browser installed.
There are no other DHCP server devices on your local network that are
●
responsible for allocating IP addresses to your computers and other network-
connected devices. Your Router will now perform this function by default.
If one or more of these conditions are not met, refer to the comprehensive Router
User Guide provided in PDF format on the CD-ROM that accompanies your Router
for further guidance.
ABOUT YOUR ROUTER

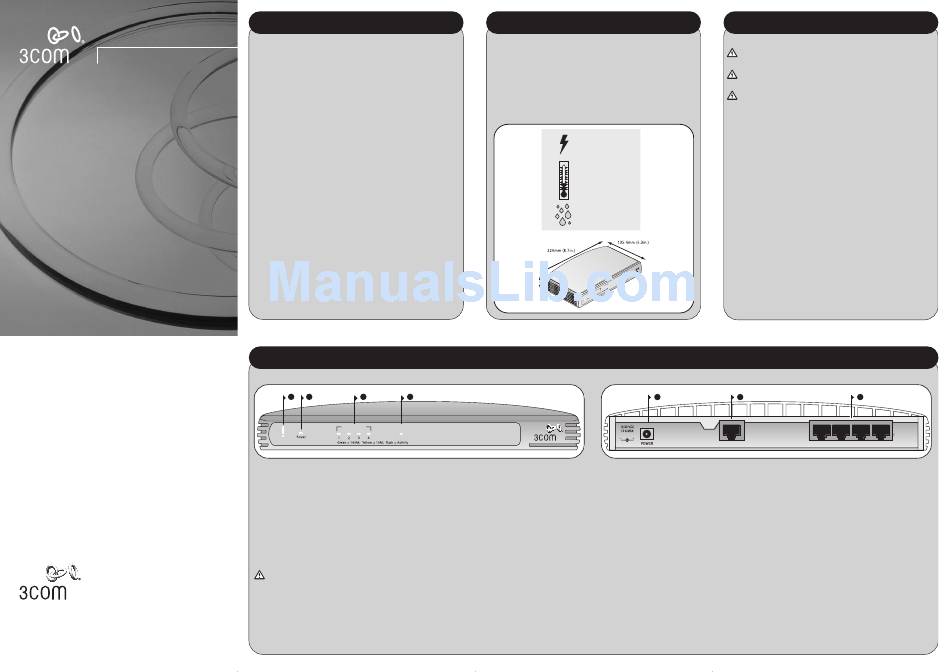

Secure Router - Front
1 2 3 4
LAN Status Cable/DSL
Alert
1 Alert LED Flashing slowly (2 seconds on - 2 seconds off) - The
Router is in fail-safe mode as a result of one of the
orange
following conditions:
Indicates a number of different conditions, as
• The firmware has become corrupted. Install valid
described below.
Off - The Router is operating normally.
Flashing quickly ( 1 / second on - 1 / second off)
2 2
• Loop back has been detected. Remove loop back
- Indicates one of the following conditions:
• The Router has just been started up and is running
a self-test routine.
On for 2 seconds, and then off - The Router has
detected and prevented a hacker from attacking your
The Alert LED may continue to flash for one
network from the Internet.
minute or longer depending on your network
Continuously on (longer than five seconds) - A fault
configuration.
has been detected with your Router during the
or
start-up process. Refer to the main User Guide.
• The system software is in the process of being
2 Power LED
upgraded
green
In each of these cases, wait until the Router has
Indicates that the Router is powered on.
completed the current operation and the Alert LED
is Off.
DIMENSIONS AND STANDARDS
Dimensions and Operating Conditions
Standards
Functional: ISO 8802/3 EMC:
IEEE 802.3, 802.3u
Safety: UL 1950, EN 60950
CSA 22.2 #950,
IEC60950
Environmental:
* Refer to Regulatory Notices section in the Support and Safety Information sheet
Secure Router
7.5 VA, 25.6 BThU/hr
power requirement
0 to 40ºC (32 to 105ºF)
operating
temperature
0 to 90%
(non-condensing)
humidity
35.8mm
(1.4 in.)
Secure Router
537g (1.18 lb)
Secure Router - Rear
3CR860-95
OfficeConnect Secure Router
3 Four LAN Status LEDs
green (100Mbps link) / yellow (10Mbps link)
If the LED is on, the link between the port and the
next piece of network equipment is OK. If the LED is
firmware, refer to the User Guide for further
flashing, the link is OK and data is being transmitted
guidance, or
or received. If the LED is off, nothing is connected, or
the connected device is switched off, or there is a
cable and reset unit by removing power, wait 10 problem with the connection (refer to the "Problem
seconds and then reapply power Solving" section).
4 Cable/DSL Status LED
green (100Mbps link) / yellow (10Mbps link)
If the LED is on, the link between the Router and the
cable or DSL modem is OK. If the LED is flashing, the
link is OK and data is being transmitted or received. If
the LED is off, nothing is connected, the modem is
switched off or there is a problem (refer to the
"Problem Solving" section).
POSITIONING YOUR ROUTER
Safety Information
WARNING: Please read the 'Important Safety Information' section in the
Support and Safety Information sheet before you start.
EN 55022 Class B
EN 55024
VORSICHT: Bitte lesen Sie den Abschnitt 'Wichtige
FCC Part 15 Class B*
Sicherheitsinformationen' sorgfältig durch, bevor Sie das Gerät einschalten.
ICES-003 Class B
VCCI Class B
AVERTISSEMENT: Veuillez lire attentivement la section "Consignes
CNS 13438 Class A
importantes de sécurité" avant de mettre en route.
EN 60068 (IEC 68)
You should place the Secure Router in a location that:
● Is conveniently located for connection to the cable or DSL modem that
will be used to connect to the Internet.
● Allows convenient connection to the computers that are to be
connected to the four LAN ports on the rear panel.
●
Allows easy viewing of the front panel LED indicator lights, and access
to the rear panel connectors if necessary.
When positioning your Router, ensure:
● It is out of direct sunlight and away from sources of heat.
● Cabling is away from power lines, fluorescent lighting fixtures, and
sources of electrical noise such as radios, transmitters and broadband
amplifiers.
● Water or moisture cannot enter the case of the unit.
●
Air flow around the unit and through the vents in the side of the case
is not restricted. We recommend you provide a minimum of 25mm
(1in.) clearance.
For details on using the rubber feet or stacking clip, refer to the User
Guide supplied in PDF format on the CD-ROM that accompanies your
Router.
5 6
Ethernet
4
Cable/
DSL
5 Power Adapter socket
Only use the power adapter that is supplied with
this Router. Do not use any other adapter.
6 Ethernet Cable/DSL port
Use the supplied patch cable to connect the Router
to the 10/100 port on your cable or DSL modem.
This port will automatically adjust for the correct
speed, duplex and cable type. Which means you can
connect to your Cable/DSL modem using either
straight-through or crossover cables.
7 Four 10/100 LAN ports
Use suitable cable with RJ-45 connectors. You can
connect your Router to a computer, or to any other
piece of equipment that has an Ethernet connection
(for example, a hub or a switch). These ports will
automatically adjust for the correct speed, duplex
mode and cable type, which means that you can
connect devices to your Router using either straight-
through or crossover cables.
7
LAN
