Compressor Compact
E382 EH81E 061 01 03 02
4
2
3
1
5

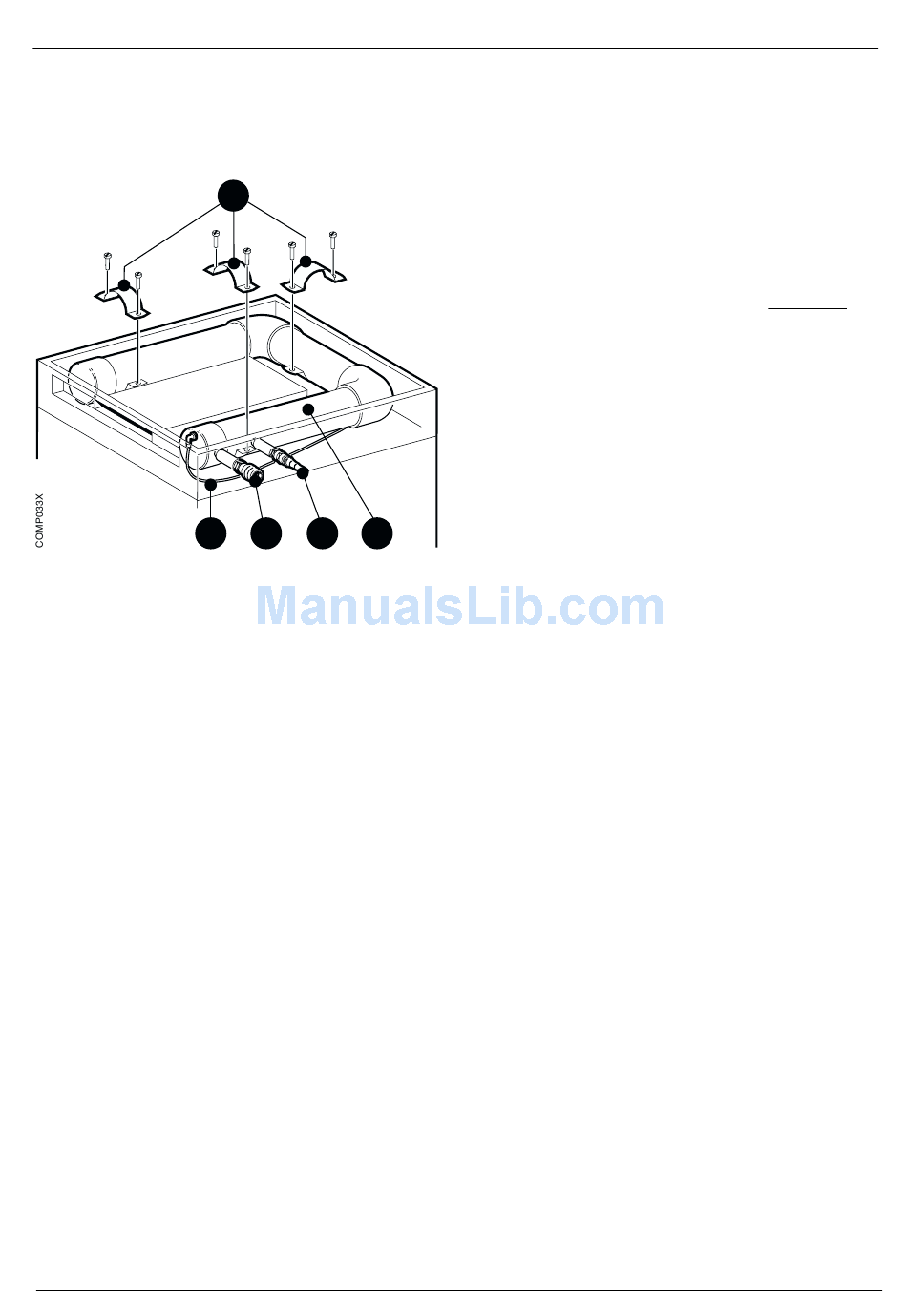

Compressed air reservoir

To remove the air reservoir
• Refit the transport safety locks as
described in section the Transport safety
locks.
• Turn the Compressor Compact upside
down. Note – The compressor must not be
turned upside down if the compressor
casing is removed.
• Remove the compressed air outlet
nipple (1).
• Compressors equipped with standby
function: remove the compressed air inlet
nipple (2).
• Disconnect the moisture relief valve
tube (3).
• Remove the three clamps (4).
• Lift off the complete air reservoir (5).
To refit the air reservoir
• The procedure for refitting the air reservoir
is the reverse of the removal procedure
previously described.
Siemens-Elema AB
Disassembling and assembling
37
