Compressor Compact
3
4
E382 EH81E 061 01 03 02

Drive belt

A drive belt is included in the 8000 hour
maintenance kit. When this overhaul is
performed, the compressor/motor unit is
removed from its mountings and it is
therefore suitable to replace the drive belt
when the compressor/motor unit has been
removed. However, the compressor/motor
unit does not have to be removed only to
replace the drive belt.

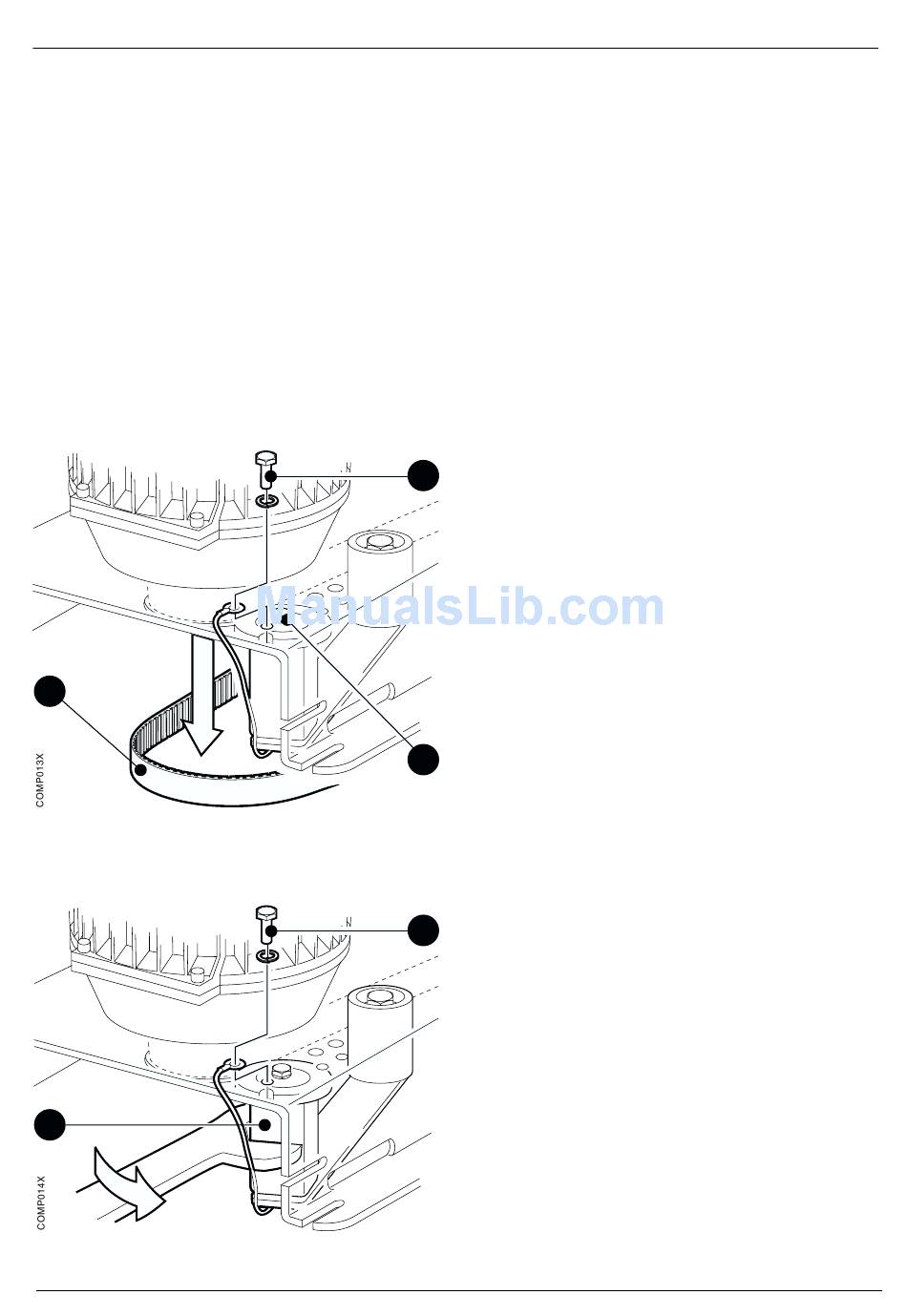

To remove the drive belt
• Open the front cover and remove the rear
1
cover and the casing as described in the
section Compressor covers.
• Remove the screw (1) and loosen the
screw (2). This will release the torsion
spring in the belt tightener.
• Remove ("roll-off") the drive belt (3).
2
To refit the drive belt
• The procedure for refitting the drive belt is
1
the reverse of the removal procedure
previously described. The belt tightener
must be pre-tensioned manually while the
screw (1) is fitted. Use a 23 mm open-end
wrench to position the belt tightener's
square socket (4) while fitting the screw.
Siemens-Elema AB
Disassembling and assembling
27
