Disassembling and assembling
3
4
5
1
26

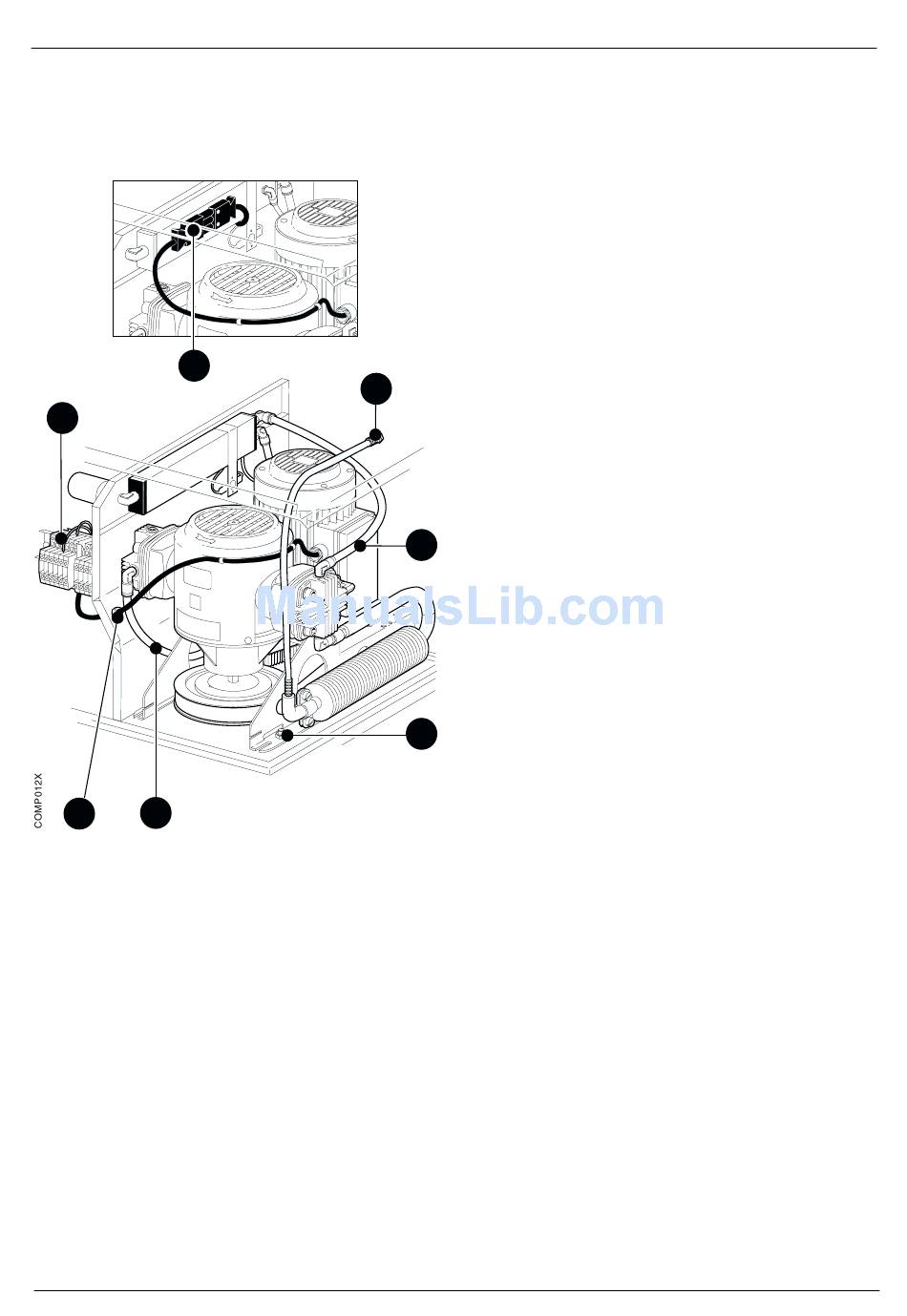

Compressor/motor unit

To remove the compressor/motor unit
• Open the front cover and remove the rear
cover and the casing as described in the
section Compressor covers.
• Disconnect the two tubes (1) at the
compressor inlets.
• Disconnect the tube (2) at the cooling coil.
• Disconnect the motor cables at the
2
electrical interconnection block (4) in the
dryer section (see Connection diagram).
Loosen the cable sleeve (5) and withdraw
the cable. Note – On older versions of the
Compressor Compact, disconnect the
cable connector (3).
1
• Remove the four nuts (6) and lift off the
compressor/motor unit.
To refit the compressor/motor unit
• The procedure for refitting the compressor/
motor unit is the reverse of the removal
6
procedure previously described.
Siemens-Elema AB
Compressor Compact
E382 EH81E 061 01 03 02
