Disassembling and assembling
4
36
1
3
4
2
Siemens-Elema AB

Fan

To remove the fan
• Open the front cover and remove the rear
cover and the casing as described in the
section Compressor covers.

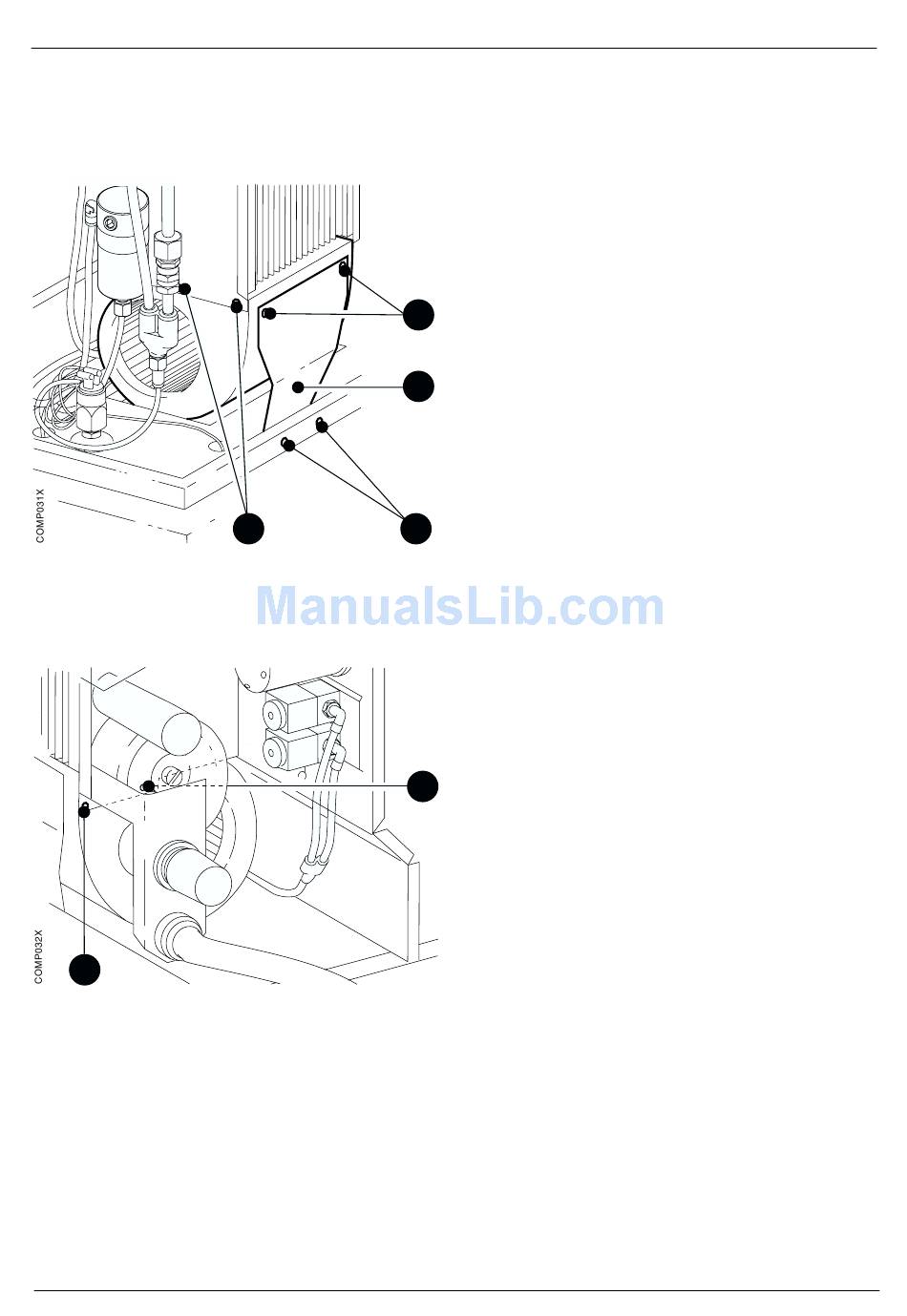

• Remove the four screws (1) and (2). Lift off
the mounting plate (3).
Note – On older versions of the
Compressor Compact, the mounting plate
is mounted with rivets instead of the
screws (2). Use a drill to remove these
rivets.
• Remove the three screws (4).
Note – On older versions of the
Compressor Compact, there is also a
screw (5) that must be removed. Loosen
the transformer to make this screw
accessible.
• Disconnect the fan cables at the electrical
interconnection block (see Connection
diagram). Withdraw the cables.
• Lift off the complete fan (6).
To refit the fan
5
• The procedure for refitting the fan is the
reverse of the removal procedure
previously described.
• On older versions of Compressor
Compact:
– If rivets are used insted of the screws
(2), insert new rivets with a hand riveter.
– Do not insert the screw (5) when refitting
the fan.
Compressor Compact
E382 EH81E 061 01 03 02
