Disassembling and assembling
1
4
24
3
2
5
Siemens-Elema AB

Transport safety locks

To secure the compressor/motor unit and
thereby prevent damage during transit of the
Compressor Compact or when the Com-
pressor Compact is turned upside down, the
unit must be fixed to the base with two
transport safety locks. When the transport
safety locks are removed, the tension in the
vibration dampers is released.
To remove the transport safety locks
• Open the front cover and remove the rear
cover as described in the section
Compressor covers.

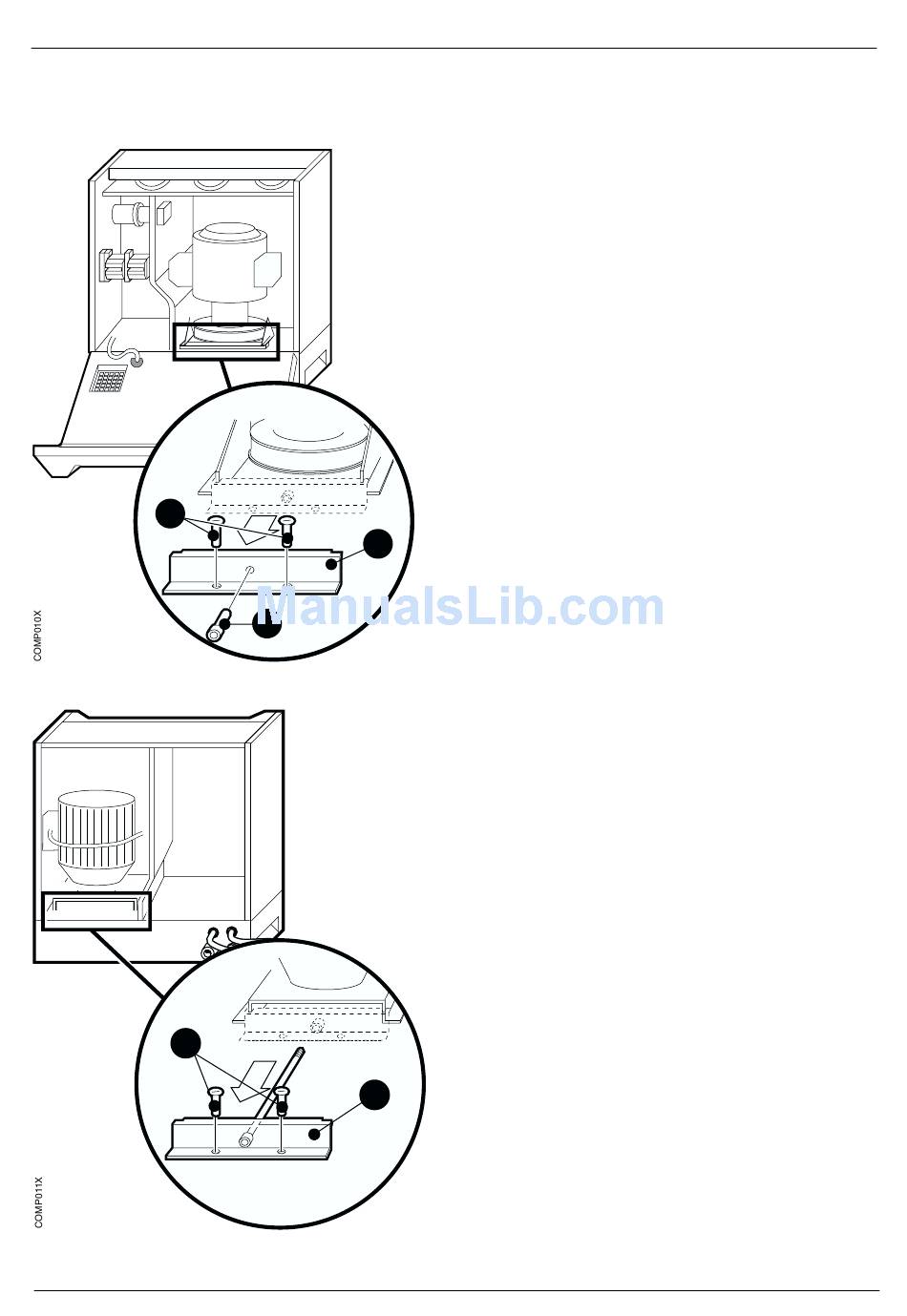

• Remove the two screws (1) and the
screw (2) and lift off the front transport
safety lock (3).
• Remove the two screws (4) and lift off the
rear transport safety lock (5).
• Refit the front and rear covers.
Do not discard the transport safety locks.
They must be mounted on the compressor/
motor unit during transit of the Compressor
Compact.
To refit the transport safety locks
• The procedure for refitting the transport
safety locks is the reverse of the
disassembling procedure previously
described.
Compressor Compact
E382 EH81E 061 01 03 02
