Step 2: Mounting the Inverter

975-0384-01-02
1
Align the flange on the back of the Xantrex XW Inverter/Charger with the
1
bottom edge of the mounting plate.
2
Lower the flange on the inverter onto the mounting plate.
CAUTION: Before releasing the full weight of the inverter, make sure it is
seated properly on the mounting plate.
3
Secure the top of inverter with two #10 self-tapping screws (provided).

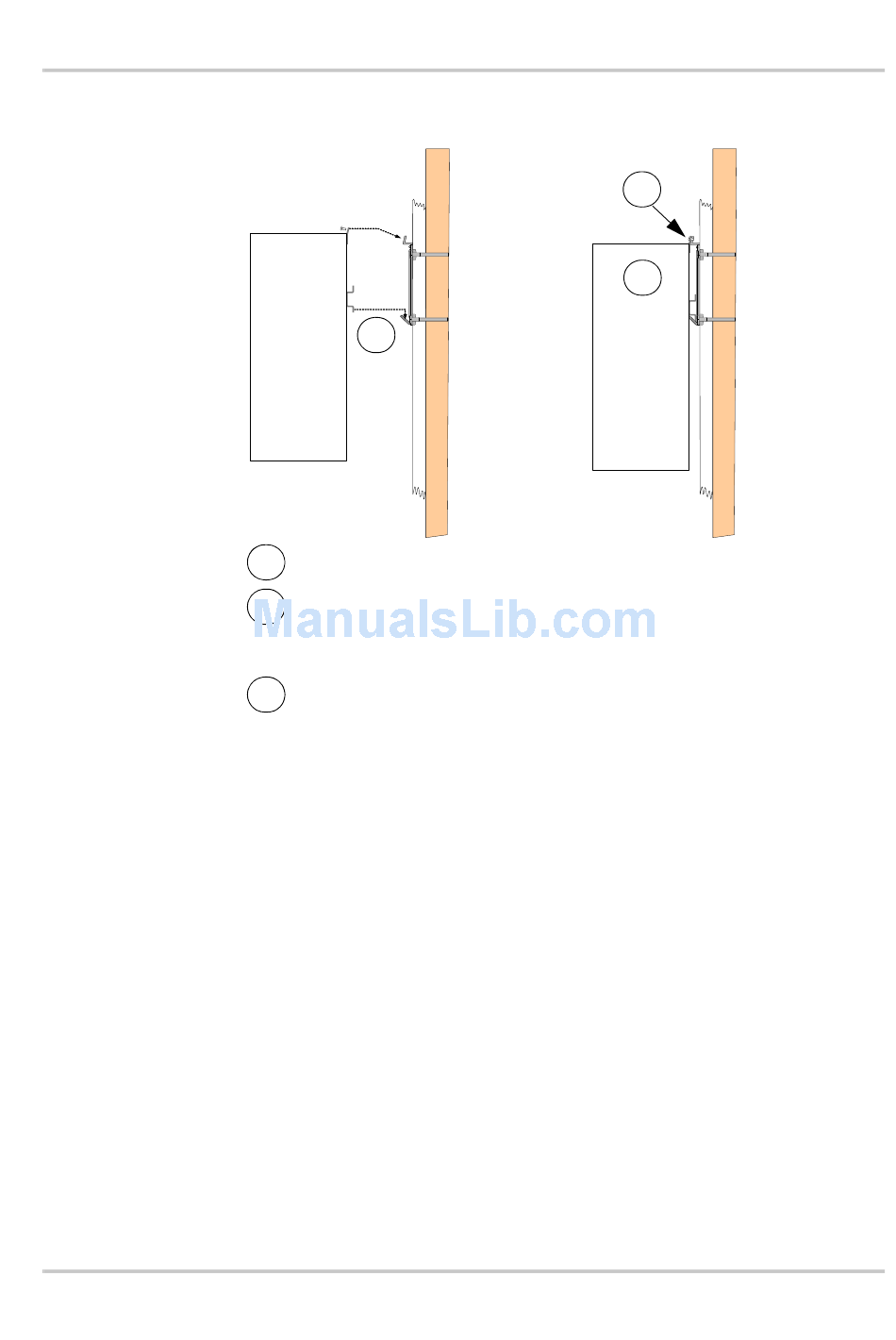

Figure 2-4 Mounting the Xantrex XW Inverter/Charger
This manual for use by qualified personnel only
Step 2: Mounting the Inverter
3
2
2–7
