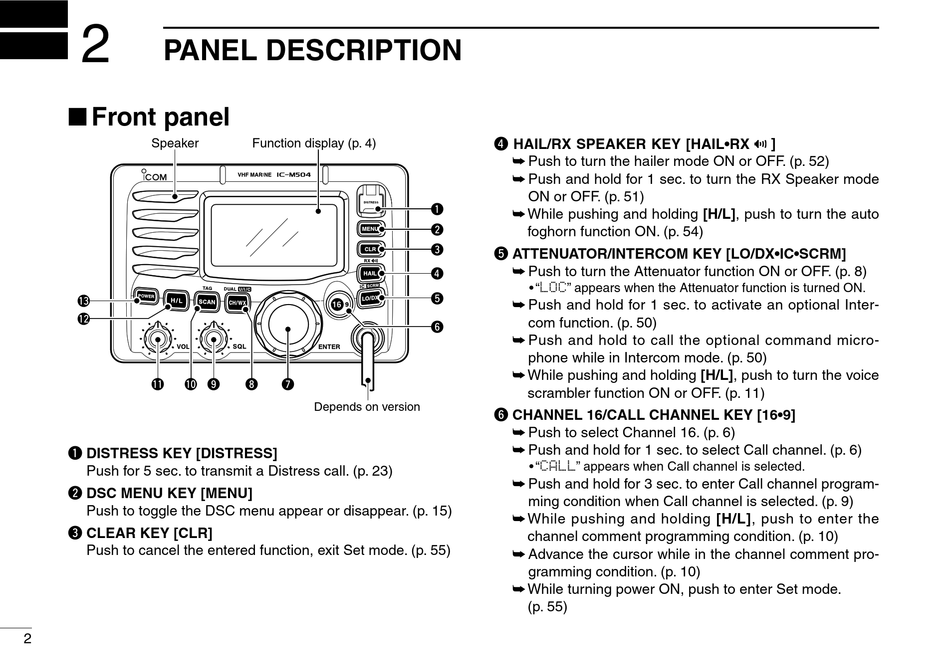

PANEL DESCRIPTION

■ Front panel

Speaker
!3
!2
!1 !0
q DISTRESS KEY [DISTRESS]
Push for 5 sec. to transmt a Dstress call. (p. 23)
w DSC MENU KEY [MENU]
Push to toggle the DSC menu appear or dsappear. (p. 15)
e CLEAR KEY [CLR]
Push to cancel the entered functon, ext Set mode. (p. 55)
2
Function display (p. 4)
o i u
Depends on version
r HAIL/RX SPEAKER KEY [HAIL•RX
➥ Push to turn the haler mode ON or OFF. (p. 52)
➥ Push and hold for 1 sec. to turn the RX Speaker mode
ON or OFF. (p. 51)
q
➥ Whle pushng and holdng [H/L], push to turn the auto
w foghorn functon ON. (p. 54)
e
t ATTENUATOR/INTERCOM KEY [LO/DX•IC•SCRM]
➥ Push to turn the Attenuator functon ON or OFF. (p. 8)
r
• "LOC" appears when the Attenuator functon s turned ON.
t
➥ Push and hold for 1 sec. to actvate an optonal Inter-
com functon. (p. 50)
y
➥ Push and hold to call the optonal command mcro-
phone whle n Intercom mode. (p. 50)
➥ Whle pushng and holdng [H/L], push to turn the voce
scrambler functon ON or OFF. (p. 11)
y CHANNEL 16/CALL CHANNEL KEY [16•9]
➥ Push to select Channel 16. (p. 6)
➥ Push and hold for 1 sec. to select Call channel. (p. 6)
• "CALL" appears when Call channel s selected.
➥ Push and hold for 3 sec. to enter Call channel program-
mng condton when Call channel s selected. (p. 9)
➥ Whle pushng and holdng [H/L], push to enter the
channel comment programmng condton. (p. 10)
➥ Advance the cursor whle n the channel comment pro-
grammng condton. (p. 10)
➥ Whle turnng power ON, push to enter Set mode.
(p. 55)
]
