9

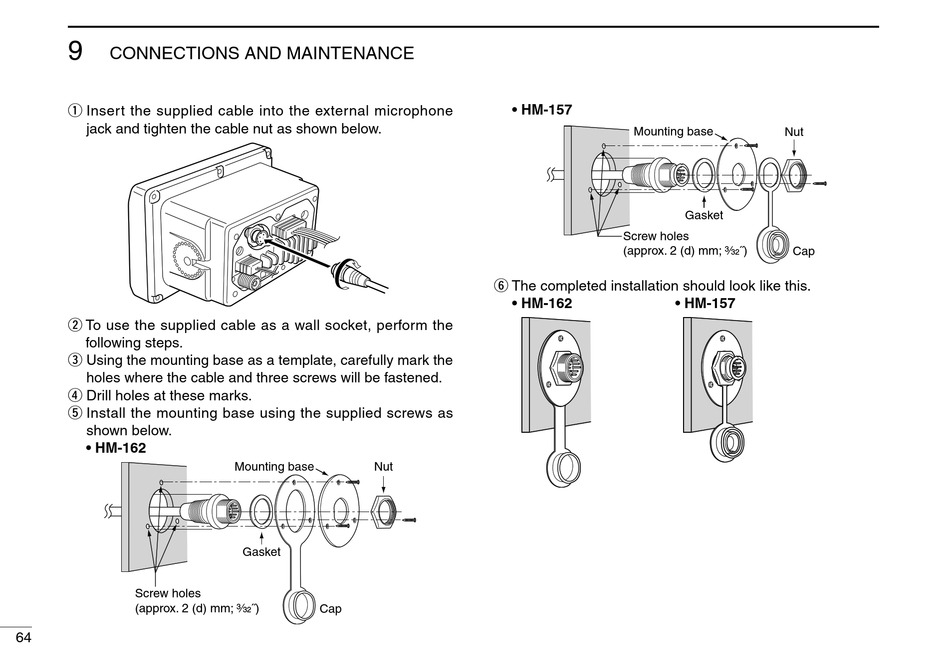

CONNECTIONS AND MAINTENANCE
q Insert the suppled cable nto the external mcrophone
jack and tghten the cable nut as shown below.
w To use the suppled cable as a wall socket, perform the
followng steps.
e Usng the mountng base as a template, carefully mark the
holes where the cable and three screws wll be fastened.
r Drll holes at these marks.
t Install the mountng base usng the suppled screws as
shown below.
• HM-162
Screw holes
(approx. 2 (d) mm;
64
Mounting base Nut
Gasket
⁄ ˝)
3 Cap
32
• HM-157
Mounting base
Screw holes
(approx. 2 (d) mm;
y The completed nstallaton should look lke ths.
• HM-162
Nut
Gasket
⁄ ˝)
Cap
3
32
• HM-157
