Applies a band pass filter with a frequency range of 40 kHz to 100kHz to the signal. According to the AES recom-

mendation the signal level in this frequency range should not exceed -20 dB.

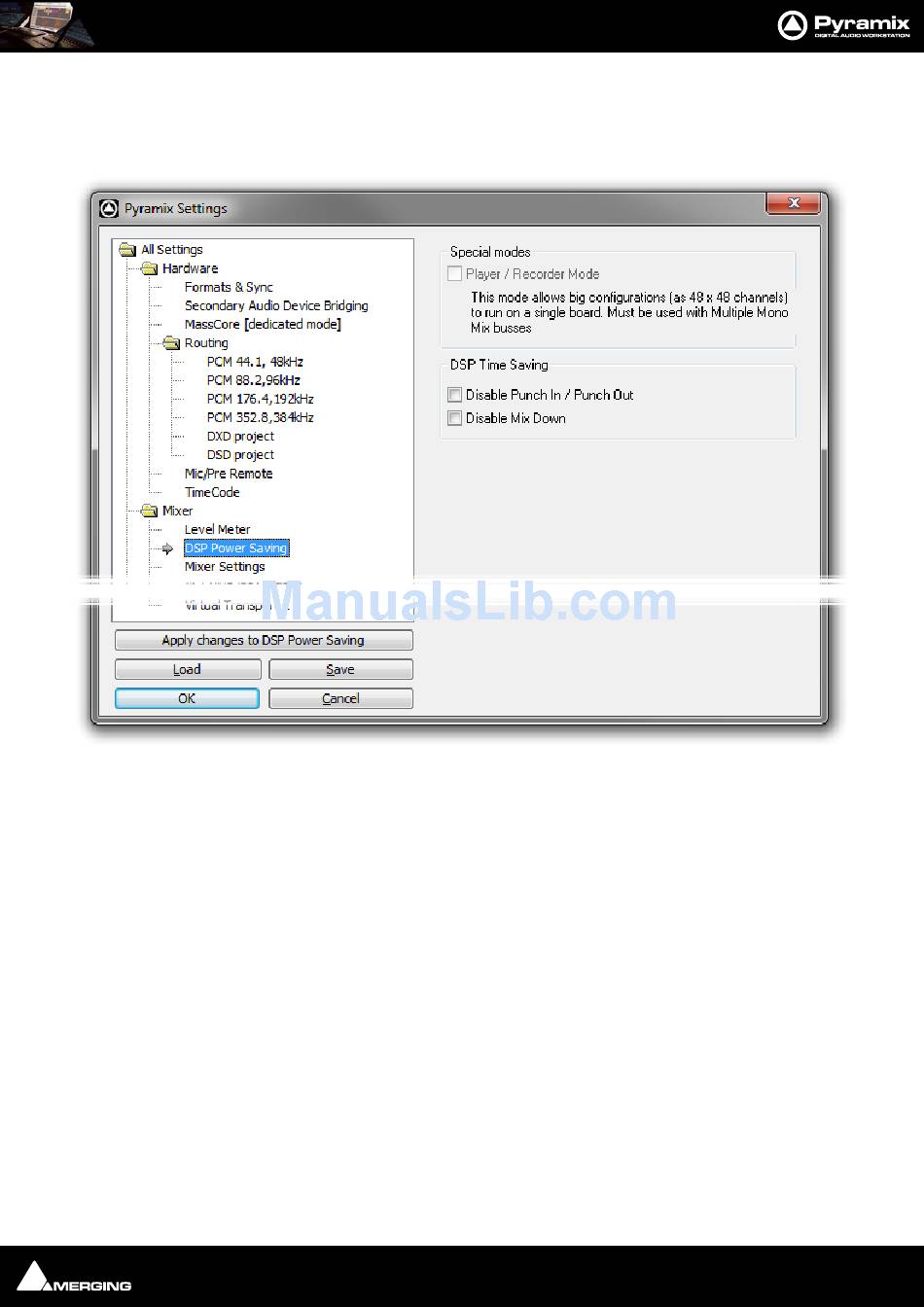

DSP Power Saving

Player/Recorder Mode

This mode allows big configurations (such as 48 x 48 channels) to run on a single board. Player/Recorder Mode is

intended for use with an external hardware console. When this mode is activated, the Pyramix mixer is relegated

to the role of signal router, there is no level control, no panning, no plug-ins and no inserts. This option is only

available in configurations with multiple mono mix buses.

The Pyramix Direct Out functionality provides an alternative, more user configurable method of achieving similar

DSP savings. Please see: Channel Direct Outputs on page 226

Disable the Punch in/out

When the box is checked, Punch-in and out recording capabilities are disabled.

Important! Pyramix still will allow you to arm Tracks and to start the recording process, but the resulting

media file will contain digital nulls.

When the box is checked, the digital mixdown function activated with the menu command Project->Mix Down is

Settings : Mixer

All Settings Mixer DSP Power Saving Page
