Transport Control Panel

Note: This Window contains a set of transport controls for each machine installed and enabled
with the Internal Transport (Pyramix) at the top. Below the machines are displays for LTC and VT
(and VITC when applicable) TimeCode Sources and at the bottom of the panel there are controls
which affect hardware Remote Controllers.
Clicking on the black bar with the machine name toggles the individual area between collapsed
and full. For example, dvcam is collapsed in the above illustration.
Important! For details of machine installation and settings. Please see: Machine on page 702
Pressing the Transport Control Panel button or [Alt T], or selecting View > Windows /
Tools > Transport opens a floating Transport Window displaying all available
machines with individual sets of buttons and status indicators.
Machine Control : Transport Control Panel

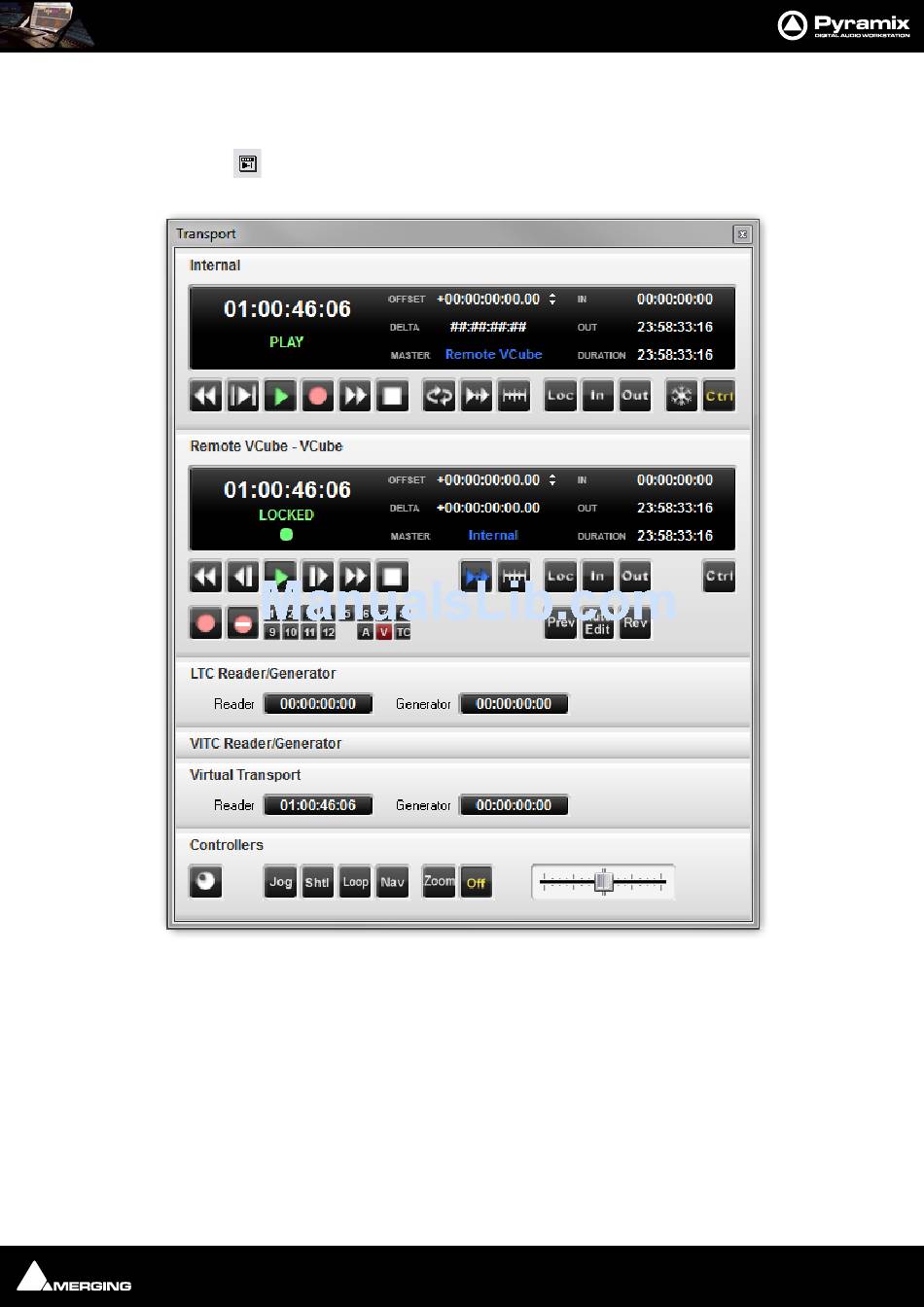

Transport Control Panel floating Window
