Transport Control Panel

Note: This Window contains a set of transport controls for each machine installed and enabled
with the Internal Transport (Pyramix) at the top. Below the machines are displays for LTC and VT
(and VITC when applicable) TimeCode Sources and at the bottom of the panel there are controls
which indicate and control hardware Remote Controllers Online/Offline (red = Offline), Jog-
Wheel Mode, and Shuttle.
Clicking on the black name bar toggles the individual area between collapsed and full. For exam-
ple, VITC Reader/Generator is collapsed in the above illustration.
Important! For details of machine installation and settings Please see: Machine on page 702
and for details of these Transport Controls Please see: Internal / External Machine panels - Features
on page 506
Pressing the Transport Control Panel button or [Alt T], or selecting View > Windows /
Tools > Transport opens a floating Transport Window displaying all available
machines with individual sets of buttons and status indicators.
Transport and Navigation : Transport Controls

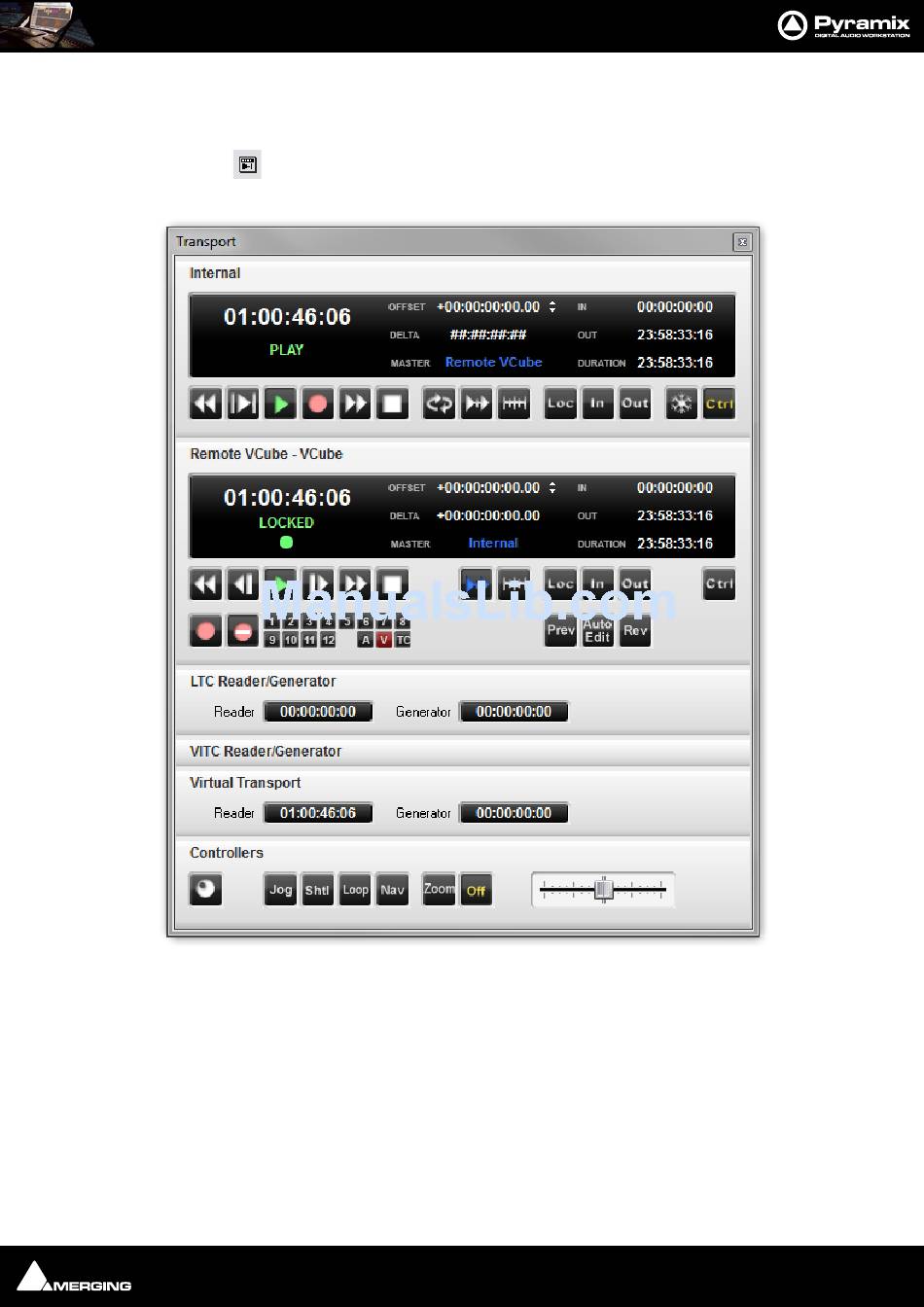

Transport Control Panel floating Window
